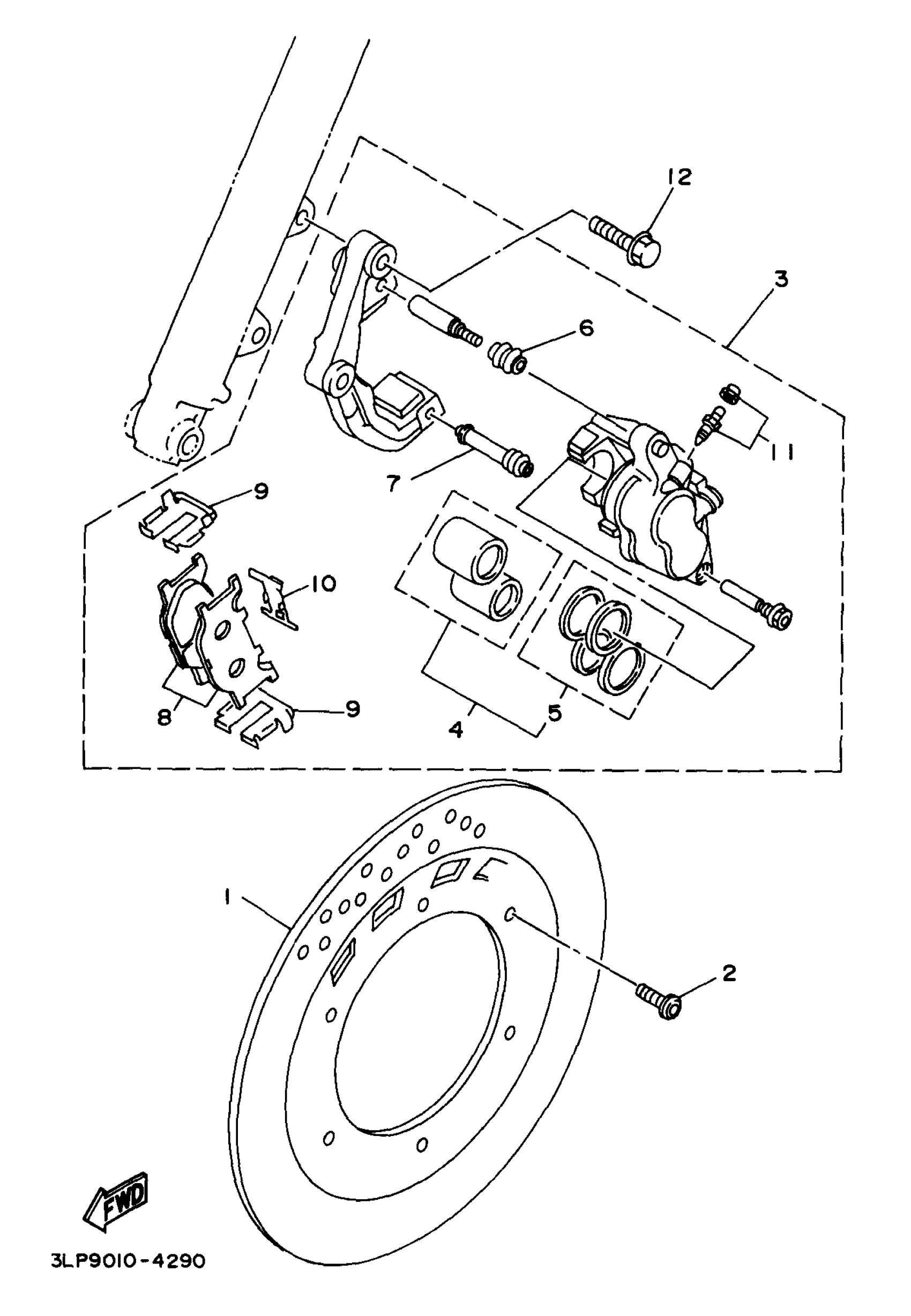

Yamaha XV250LC (VIRAGO 250 CA) 3BG8 1999 FRONT BRAKE CALIPER Diagram

DISC, BRAKE

3LP-2582T-00-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$8.49

CALIPER ASSY (LEFT)

4HM-2580T-00-00

Unavailable

PISTON ASSY, CALIPER

4HC-W0057-50-00

Unavailable

CALIPER SEAL KIT

4HC-25803-50-00

$61.99

BOOT 2

5R2-25937-00-00

$37.99

BOOT 2

3YX-25937-00-00

Unavailable

BRAKE PAD KIT

4HM-W0045-00-00

$51.99

SUPPORT, PAD

4BP-25919-00-00

$44.99

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

BLEED SCREW KIT

15B-W0048-00-00

$19.99

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
