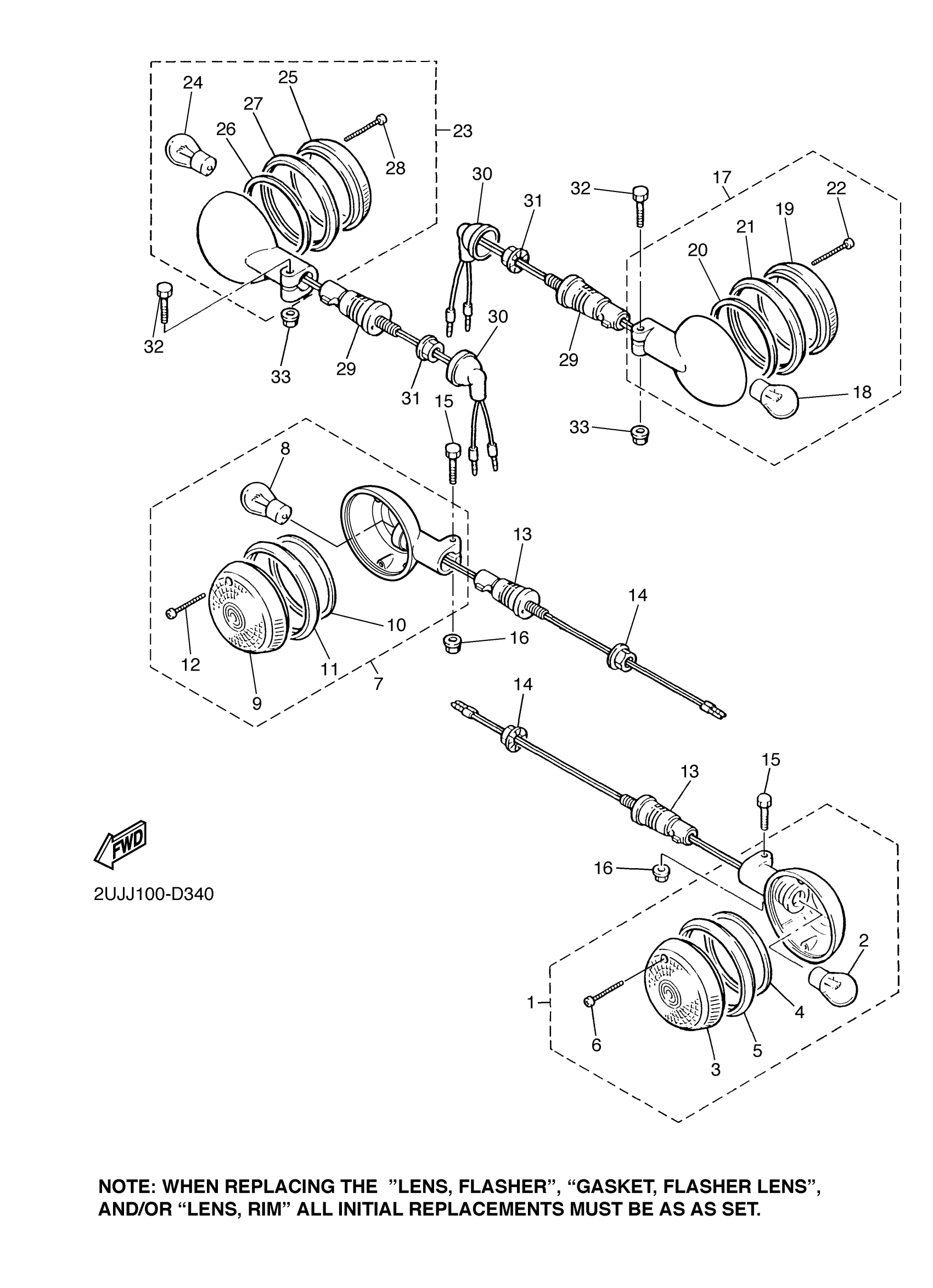

Yamaha XV250LC (VIRAGO 250 CA) 3BG8 1999 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

42X-83310-K1-00

$57.99

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-10-00

$15.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

LENS, RIM

1D6-83363-00-00

$28.99

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

42X-83320-K1-00

$56.99

8

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

9

LENS, FLASHER

42X-83312-20-00

$15.49

10

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

11

LENS, RIM

1D6-83363-10-00

$28.99

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

STAY, FLASHER 1

1AA-83318-00-00

$45.99

14

NUT(3DM)

95304-12600-00

$8.49

15

BOLT, HEXAGON

97017-06030-00

$3.61

16

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

17

REAR FLASHER LIGHT ASSY 1

3DN-83380-01-00

Unavailable

18

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

19

LENS, FLASHER

42X-83312-20-00

$15.49

20

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

21

LENS, RIM

1D6-83363-10-00

$28.99

22

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

23

FLASHER LIGHT ASSY 2

3DN-83340-01-00

Unavailable

24

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

25

LENS, FLASHER

42X-83312-10-00

$15.49

26

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

27

LENS, RIM

1D6-83363-00-00

$28.99

28

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

29

STAY, FLASHER 1

1AA-83318-00-00

$45.99

30

CAP

18G-83365-00-00

Unavailable

31

NUT

95380-12600-00

Unavailable

32

BOLT, HEXAGON

97017-06030-00

$3.61

33

NUT, FLANGE(7NB)

95780-06500-00

Unavailable
