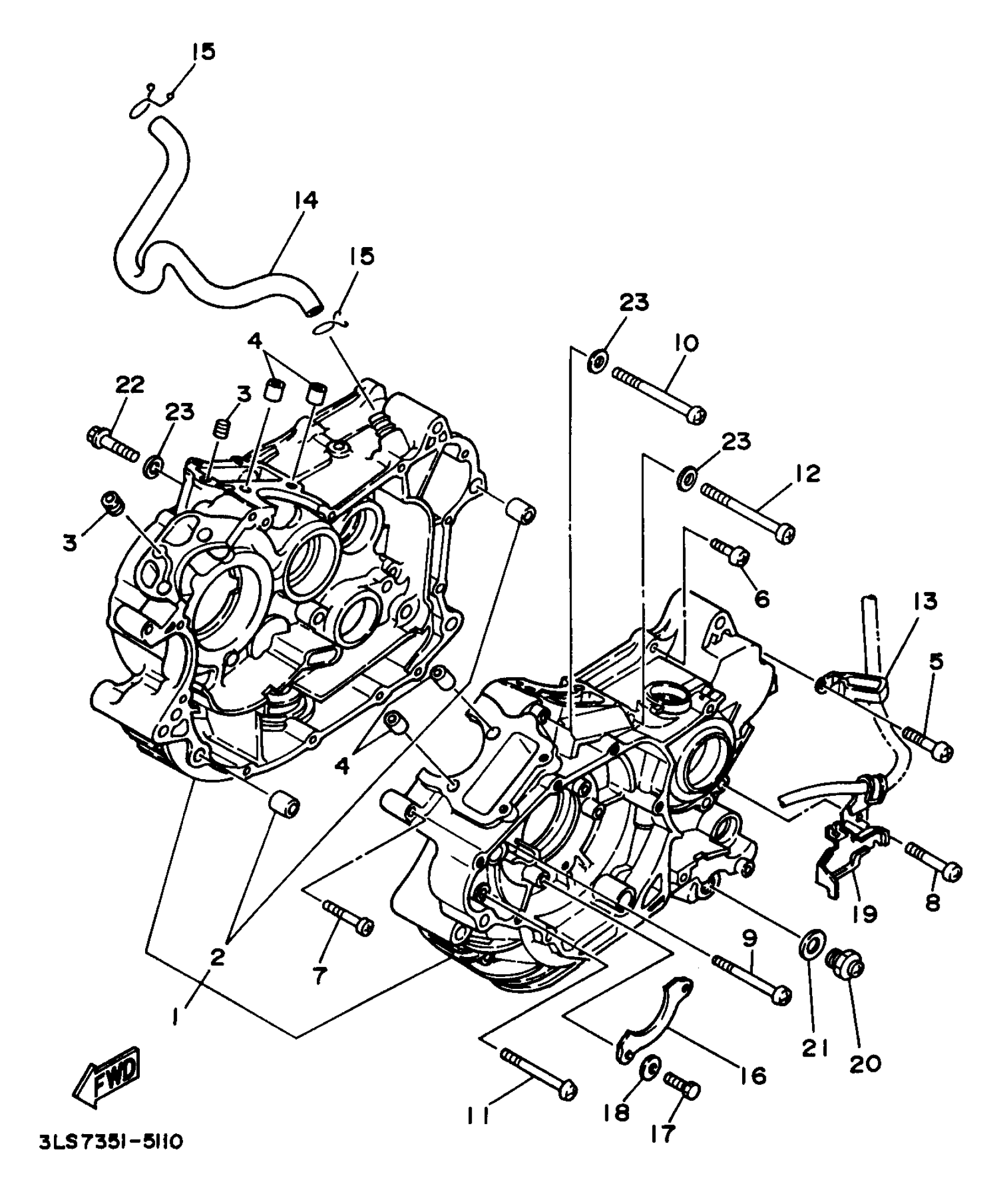

Yamaha XV250LC (VIRAGO 250 CA) 3BG8 1999 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
2UJ-15100-03-00
Unavailable
3
NOZZLE 1
2UJ-15138-00-00
Unavailable
5
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
6
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
12
SCREW, PAN HEAD(3DN)
98504-06080-00
Unavailable
13
CLAMP(51Y)
90465-08277-00
Unavailable
14
PIPE, BREATHER 1
2UJ-11166-00-00
Unavailable
16
PLATE
2UJ-12279-00-00
Unavailable
17
BOLT, HEXAGON
97017-06012-00
Unavailable
18
WASHER(6TA)
92907-06600-00
Unavailable
19
CLAMP
90465-08060-00
Unavailable
20
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
21
GASKET
214-11198-01-00
Unavailable
22
SCREW
90153-06029-00
Unavailable
23
GASKET 256113960000
90430-06014-00
Unavailable
