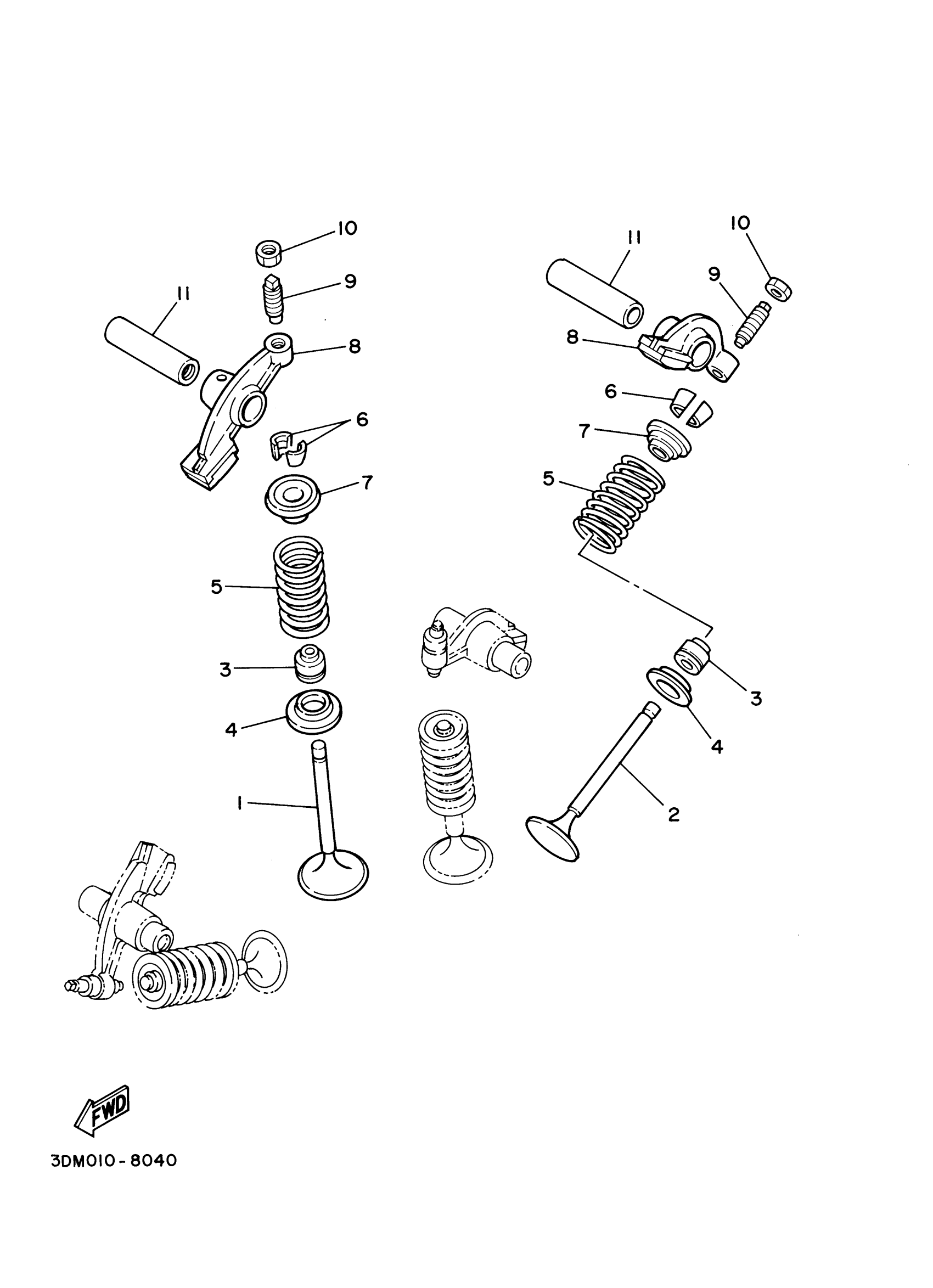

Yamaha XV250L1C (V STAR 250 CA) 46BW 2020 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

5KR-12111-00-00

Unavailable

2

VALVE, EXHAUST

5KR-12121-00-00

Unavailable

3

SEAL, VALVE STEM

22F-12119-01-00

$13.33

4

SEAT, VALVE SPRING

22F-12116-00-00

$8.88

5

SPRING, VALVE INNER

5KR-12113-00-00

$8.86

6

COTTER, VALVE

22F-12118-01-00

$5.96

7

RETAINER, VALVE SPRING

22F-12117-02-00

$6.26

8

ARM, VALVE ROCKER

50M-12151-00-00

$60.01

9

SCREW, VALVE ADJUSTING

22F-12159-00-00

$8.56

10

NUT (22F)

90170-05302-00

$0.70

11

SHAFT, ROCKER 2

22F-12156-00-00

$17.82
