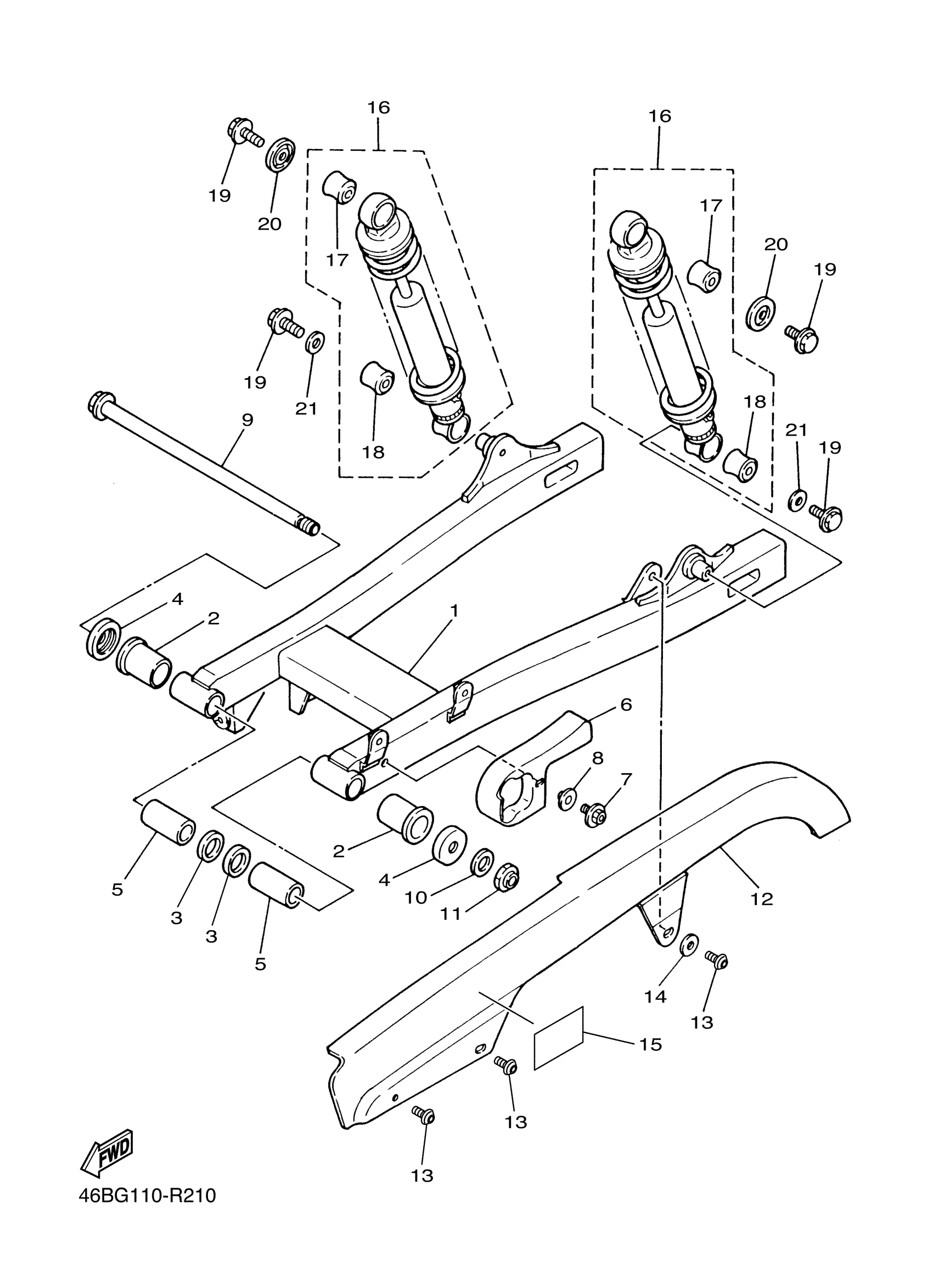

Yamaha XV250L1C (V STAR 250 CA) 46BW 2020 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

3LS-22110-00-33

$382.99

2

BUSH(3DM)

90386-18163-00

$13.99

3

OIL SEAL (2J5)

93109-18020-00

$13.49

4

COVER, THRUST 2

55K-22129-00-00

$22.99

5

BUSH, SOLID (31J)

90380-12121-00

$17.99

6

SEAL, GUARD

55K-22151-01-00

Unavailable

7

BOLT, WITH WASHER (10V)

90119-05062-00

$9.49

8

WASHER (3R8)

90209-06187-00

$8.49

9

SHAFT, PIVOT

2UJ-22141-01-00

Unavailable

10

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

11

NUT, SELF-LOCKING(2UJ)

90185-12164-00

$7.49

12

CASE, CHAIN

3LS-22311-00-00

Unavailable

13

SCREW(3XV)

90149-06298-00

$5.60

14

WASHER, PLATE

90201-06020-00

$9.49

15

LABEL, TIRE

3CK-21668-A1-00

Unavailable

16

SHOCK ABSORBER ASSY, REAR

2UJ-22210-00-00

Unavailable

17

DAMPER, SHOCK ABSORBER LOWER

447-22217-21-00

Unavailable

18

BUSH, REAR SHOCK ABSORBER

447-22216-20-00

Unavailable

19

BOLT, FLANGE(2UJ)

95024-08012-00

Unavailable

20

WASHER 1

1UJ-22243-00-00

Unavailable

21

WASHER, PLATE(3DM)

90201-087G2-00

Unavailable
