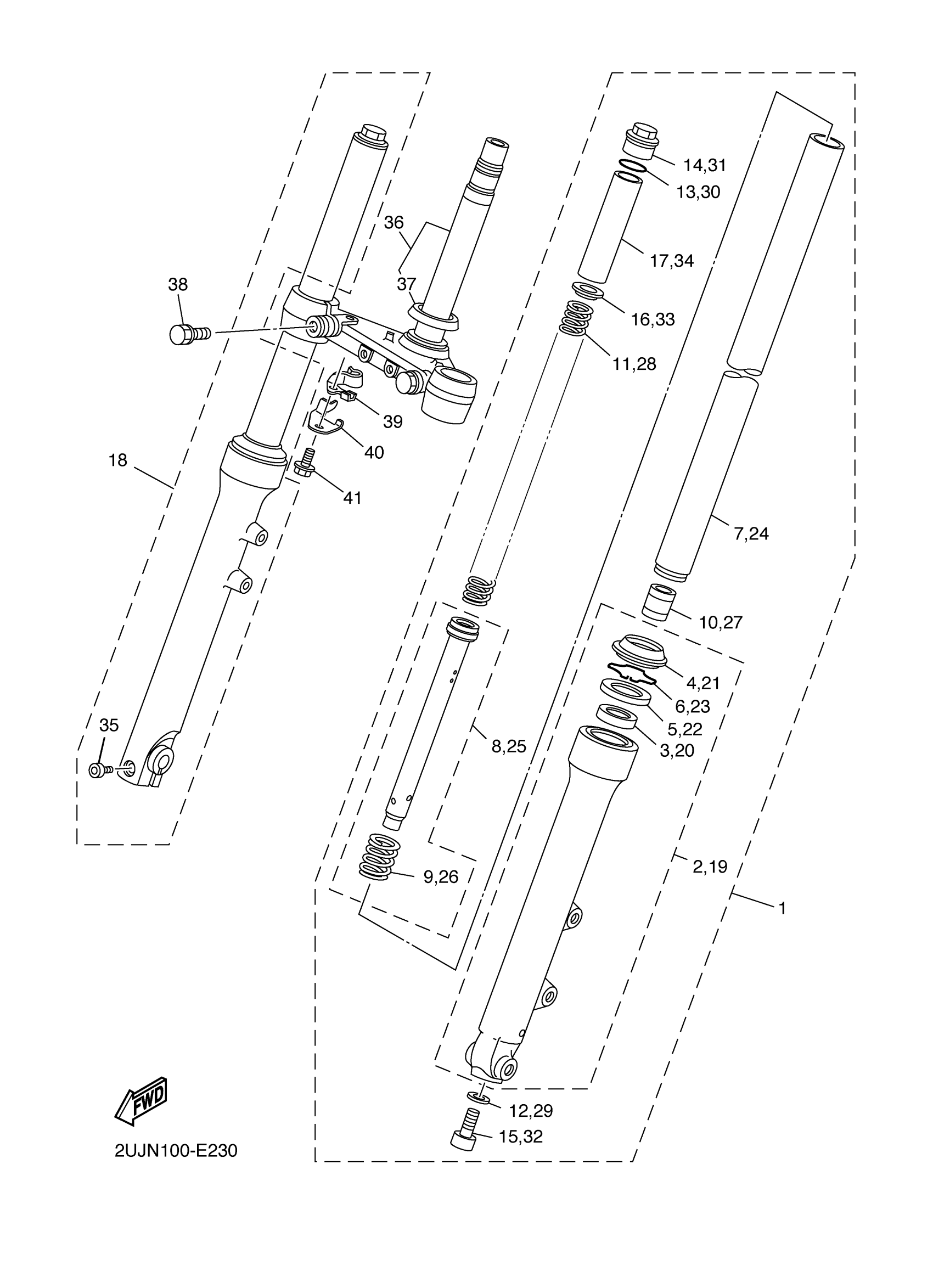

Yamaha XV250L1C (V STAR 250 CA) 46BW 2020 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L.H)
2UJ-23102-30-00
Unavailable
2
TUBE, OUTER (LEFT)
2UJ-23126-30-00
Unavailable
7
INNER TUBE COMP.1
2UJ-23110-00-00
Unavailable
8
CYLINDER COMP., FRONT FORK
2UJ-23170-00-00
Unavailable
9
.. SPRING, REBOUND
509-23151-L0-00
Unavailable
11
SPRING, FRONT FORK
2UJ-23141-00-00
Unavailable
16
WASHER, SPRING UPPER
3DM-23149-10-00
Unavailable
17
. SPACER
58T-23118-L0-00
Unavailable
18
FRONT FORK ASSY (R.H)
2UJ-23103-30-00
Unavailable
19
TUBE, OUTER (RIGHT)
2UJ-23136-30-00
Unavailable
24
INNER TUBE COMP.1
2UJ-23110-00-00
Unavailable
25
CYLINDER COMP., FRONT FORK
2UJ-23170-00-00
Unavailable
26
.. SPRING, REBOUND
509-23151-L0-00
Unavailable
28
SPRING, FRONT FORK
2UJ-23141-00-00
Unavailable
33
WASHER, SPRING UPPER
3DM-23149-10-00
Unavailable
34
. SPACER
58T-23118-L0-00
Unavailable
35
BOLT, SOCKET
91314-08035-00
Unavailable
36
UNDER BRACKET COMP.
2UJ-23340-40-00
Unavailable
37
SEAL, STEERING
5VC-23462-00-00
Unavailable
38
BOLT 1
2UJ-23346-10-00
Unavailable
39
HOLDER, BRAKE HOSE
3DM-25886-10-00
Unavailable
41
BOLT, FLANGE
95817-06010-00
Unavailable
