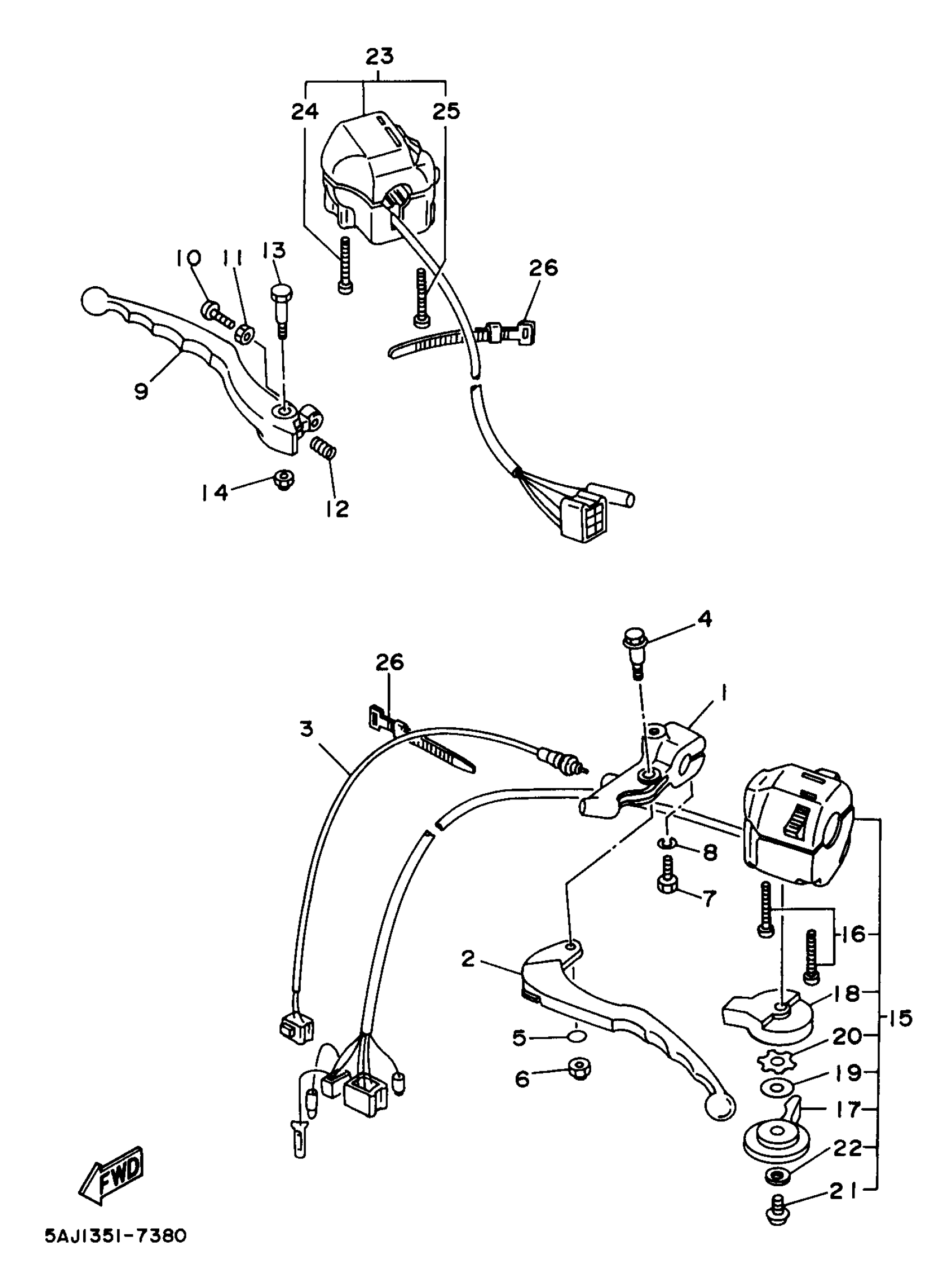

Yamaha XV250KC (VIRAGO 250 CA) 1998 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER

10M-82911-00-00

Unavailable

2

LEVER 1

2GV-83912-00-00

$22.89

3

SWITCH

2UJ-82917-00-00

$50.65

4

BOLT (2YK1)

90109-06799-00

$4.23

5

O-RING (2H7)

93210-11368-00

$4.48

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

BOLT, HEXAGON

97017-06025-00

$2.78

8

WASHER, SPRING

92907-06100-00

$0.98

9

LEVER, (R.H)

2W1-83922-00-00

$25.44

10

SCREW (2L0)

90149-06131-00

$5.75

11

NUT HEXAGON 306839270000

90170-06010-00

$5.75

12

SPRING COMPRESSION306839240000

90501-10312-00

$5.75

13

BOLT (4L0)

90109-06577-00

$5.03

14

NUT, SELF-LOCKING

95617-06100-00

$2.17

15

SWITCH, HANDLE 3

2UJ-83973-00-00

$240.42

16

SCREW, PAN

98507-05035-00

Unavailable

17

LEVER, STARTER

10M-83941-00-00

Unavailable

18

COVER, STARTER

10M-83942-00-00

Unavailable

19

SPACER

1AA-8397X-00-00

Unavailable

20

WASHER (357)

90209-10131-00

Unavailable

21

SCREW, PAN

98517-06008-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

SWITCH, HANDLE 2

1VE-83975-00-00

Unavailable

24

SCREW, PAN

98507-05040-00

Unavailable

25

SCREW, PAN

98507-05045-00

Unavailable

26

BAND, SWITCH CORD

437-83936-01-00

Unavailable
