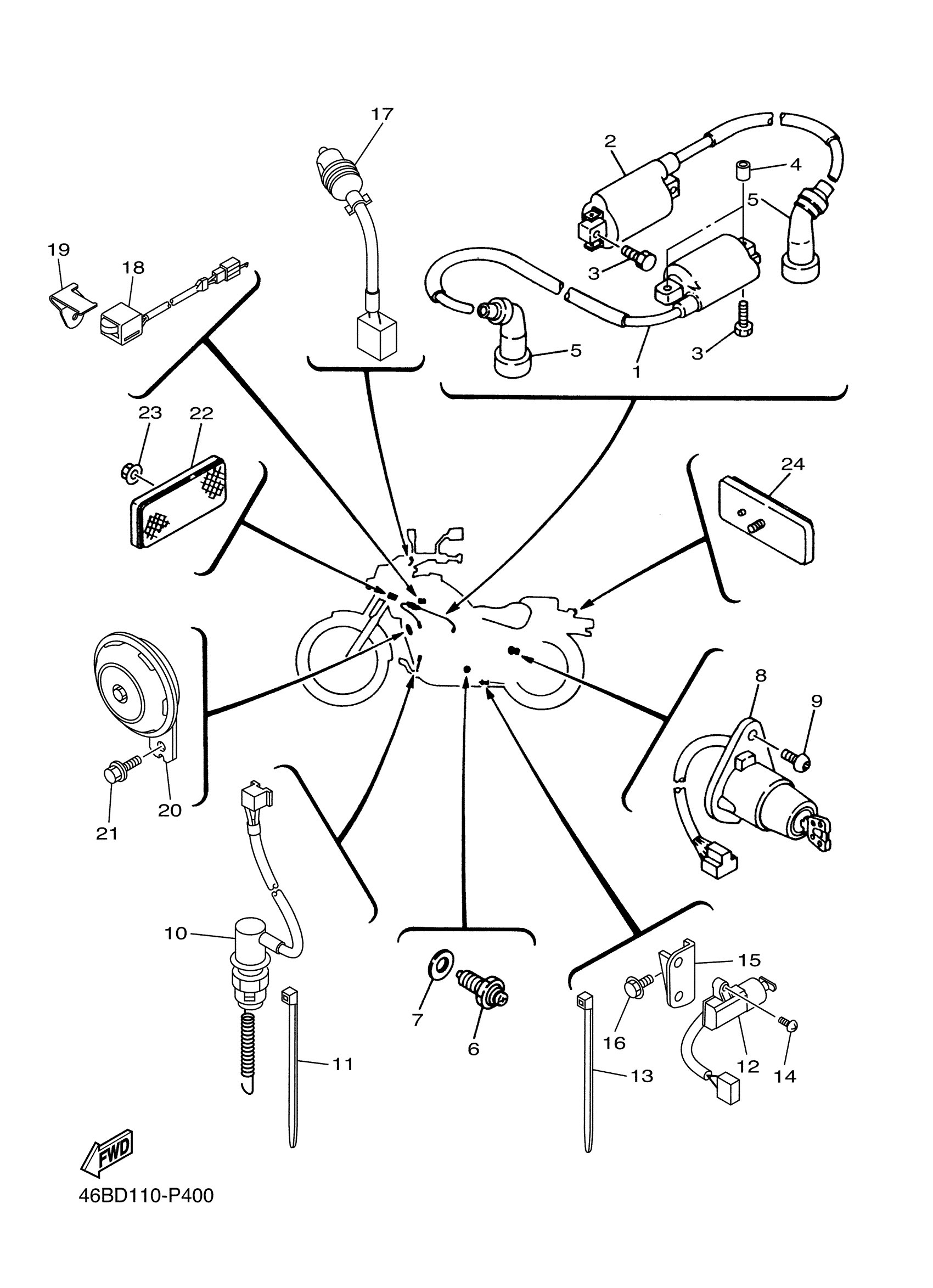

Yamaha XV250K1C (V STAR 250 CA) 46BT 2019 ELECTRICAL 2 Diagram

#

Description
Price

1

IGNITION COIL ASSY

4DN-82320-01-00

$111.99

2

IGNITION COIL ASSY

4DN-82320-01-00

$111.99

3

BOLT(3JK)

97027-05020-00

$3.29

4

HOSE (L200)

90445-07176-00

$7.60

5

PLUG CAP ASSY

3NS-82370-00-00

$37.99

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

7

GASKET (1KH,1.0T)

90430-10148-00

$5.60

8

MAIN SWITCH ASSY

46B-82510-00-00

$219.99

9

SCREW(1KT)

90149-06228-00

$9.49

10

STOP SWITCH ASSY

5PW-82530-01-00

Unavailable

11

CLAMP

90464-16061-00

$8.49

12

SWITCH, SIDE STAND

3LD-82566-61-00

$51.99

13

CLAMP

90464-16061-00

$8.49

14

SCREW, PAN HEAD

98507-05014-00

$8.49

15

PANEL, SWITCH

2UJ-82565-00-00

Unavailable

16

BOLT, FLANGE

95817-06010-00

Unavailable

17

FRONT STOP SWITCH ASSY

19D-83980-10-00

Unavailable

18

THERMO SWITCH ASSY

5FU-82560-40-00

Unavailable

19

PANEL, SWITCH

3BG-82571-00-00

Unavailable

20

HORN

1HX-83371-11-00

Unavailable

21

BOLT, FLANGE

95817-06010-00

Unavailable

22

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

23

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

24

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable
