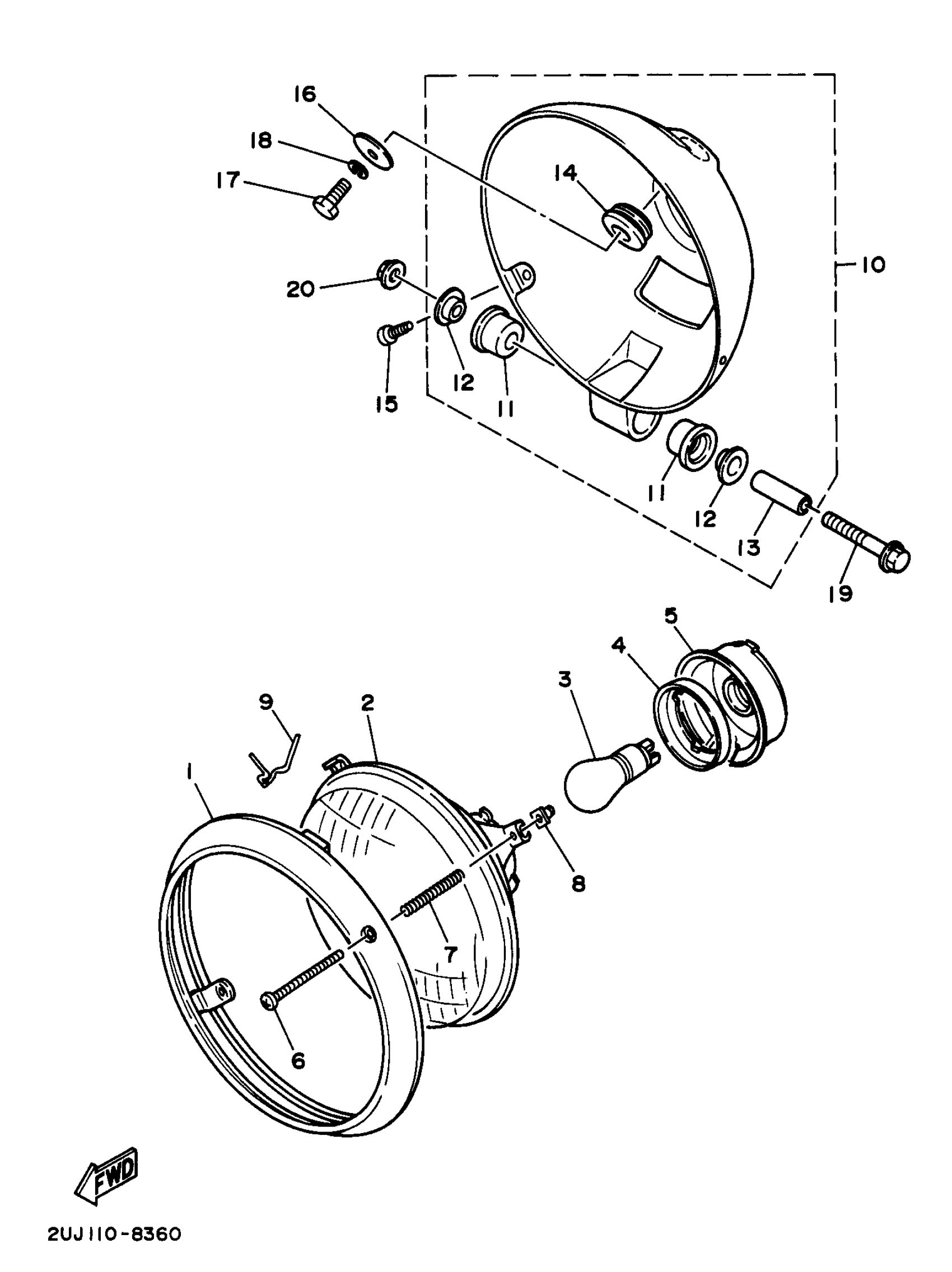

Yamaha XV250JC (VIRAGO 250 CA) 1997 HEADLIGHT Diagram

RIM, HEADLIGHT

42X-84315-01-00

$122.99

LENS ASSEMBLY

2GV-84321-A0-00

Unavailable

BULB, HEADLIGHT (12V-65/60W)

11H-84314-XX-00

Unavailable

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

COVER, SOCKET

2F9-84397-01-00

$30.99

SCREW 214841316100

90157-04001-00

$8.49

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$9.99

NUT, ADJUST

198-84334-60-00

$7.99

SPRING, SET

42X-84124-60-00

$6.99

BODY ASSY

42X-84330-01-00

$216.99

DAMPER, HEADLIGHT

42X-84345-00-00

$5.49

COLLAR, BODY FITTING

1FK-84338-00-00

$2.34

COLLAR, BODY FITTING

2UJ-84338-00-00

$2.34

DAMPER, HEADLIGHT 1

42X-84366-00-00

$20.99

SCREW, PAN HEAD(1AA)

90157-05084-00

$4.14

WASHER, PLATE

90201-06086-00

Unavailable

BOLT, HEXAGON

97017-06016-00

Unavailable

WASHER, SPRING

92907-06100-00

Unavailable

BOLT, FLANGE(4EB)

95814-06045-00

Unavailable

NUT, FLANGE(7NB)

95780-06500-00

Unavailable
