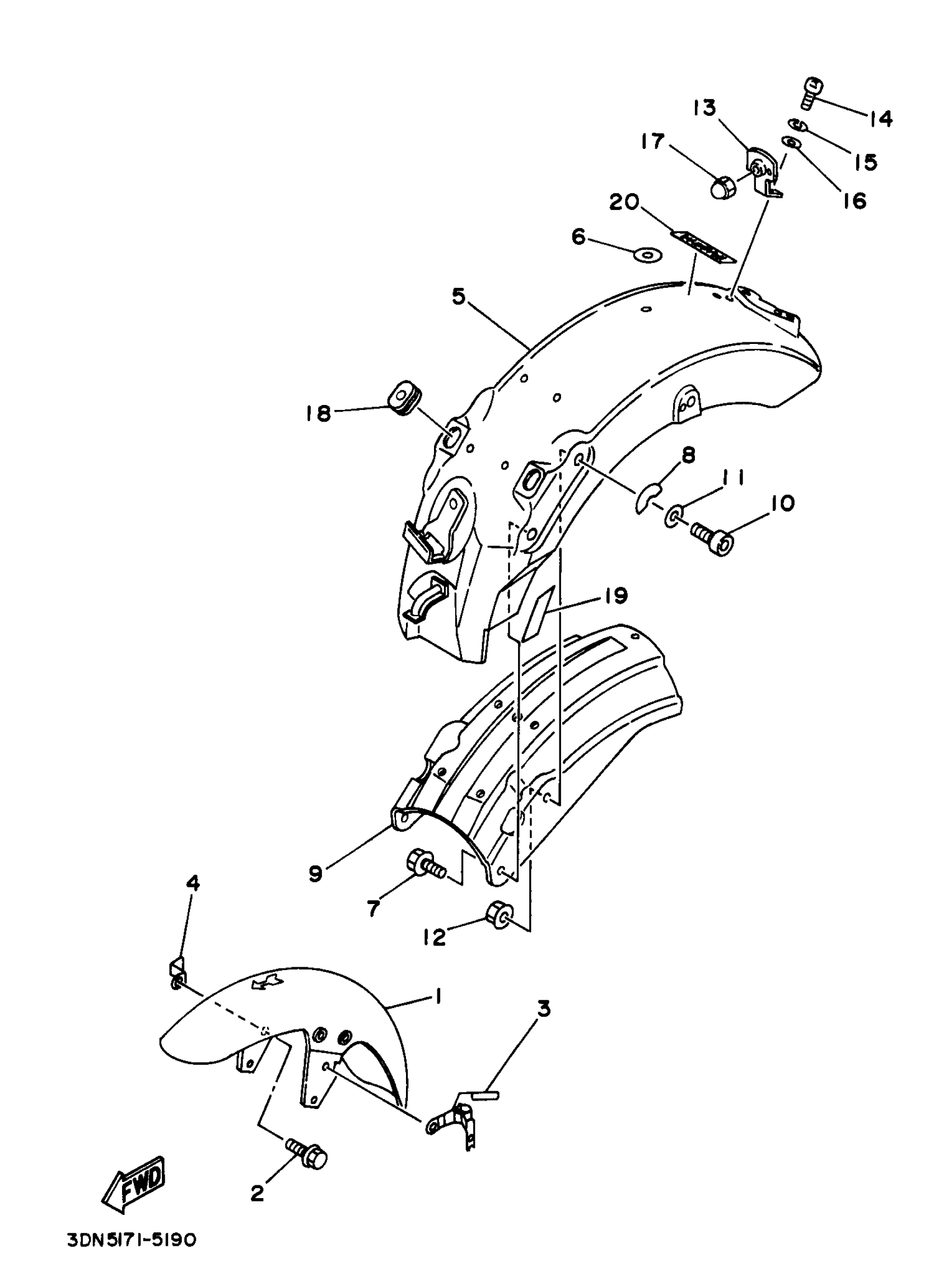

Yamaha XV250JC (VIRAGO 250 CA) 1997 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

2UJ-21510-00-FE

Unavailable

2

BOLT, FLANGE(2UJ)

95024-08012-00

$8.49

3

HOLDER,WIRE 1

3DN-21597-00-00

$60.99

4

BRACKET

3DN-21586-00-00

Unavailable

5

REAR FENDER COMP.

2UJ-21610-00-FE

Unavailable

6

SEAL 2

2UJ-21735-00-00

$1.09

7

BOLT, FLANGE

95817-10020-00

$8.49

8

SEAL 4

3DM-2173N-00-00

$6.99

9

REINF. COMP.

2UJ-21670-30-00

Unavailable

10

BOLT, SOCKET

91317-10035-00

$7.49

11

WASHER(6TA)

92907-10600-00

$8.49

12

NUT, FLANGE(8AB)

95707-10500-00

$3.18

13

BRACKET, REFLECTOR

2UJ-21641-00-00

$28.99

14

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

15

WASHER(3SX)

92907-05100-00

$8.49

16

WASHER(1RW)

92907-05600-00

Unavailable

17

NUT, CAP

95307-05800-00

Unavailable

18

GROMMET (438)

90480-15061-00

Unavailable

19

SEAL 3

2UJ-2173M-01-00

Unavailable

20

EMBLEM, YAMAHA

99245-00080-00

Unavailable
