2017 Yamaha XV250 (XV250HS) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2017 Yamaha XV250 (XV250HS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

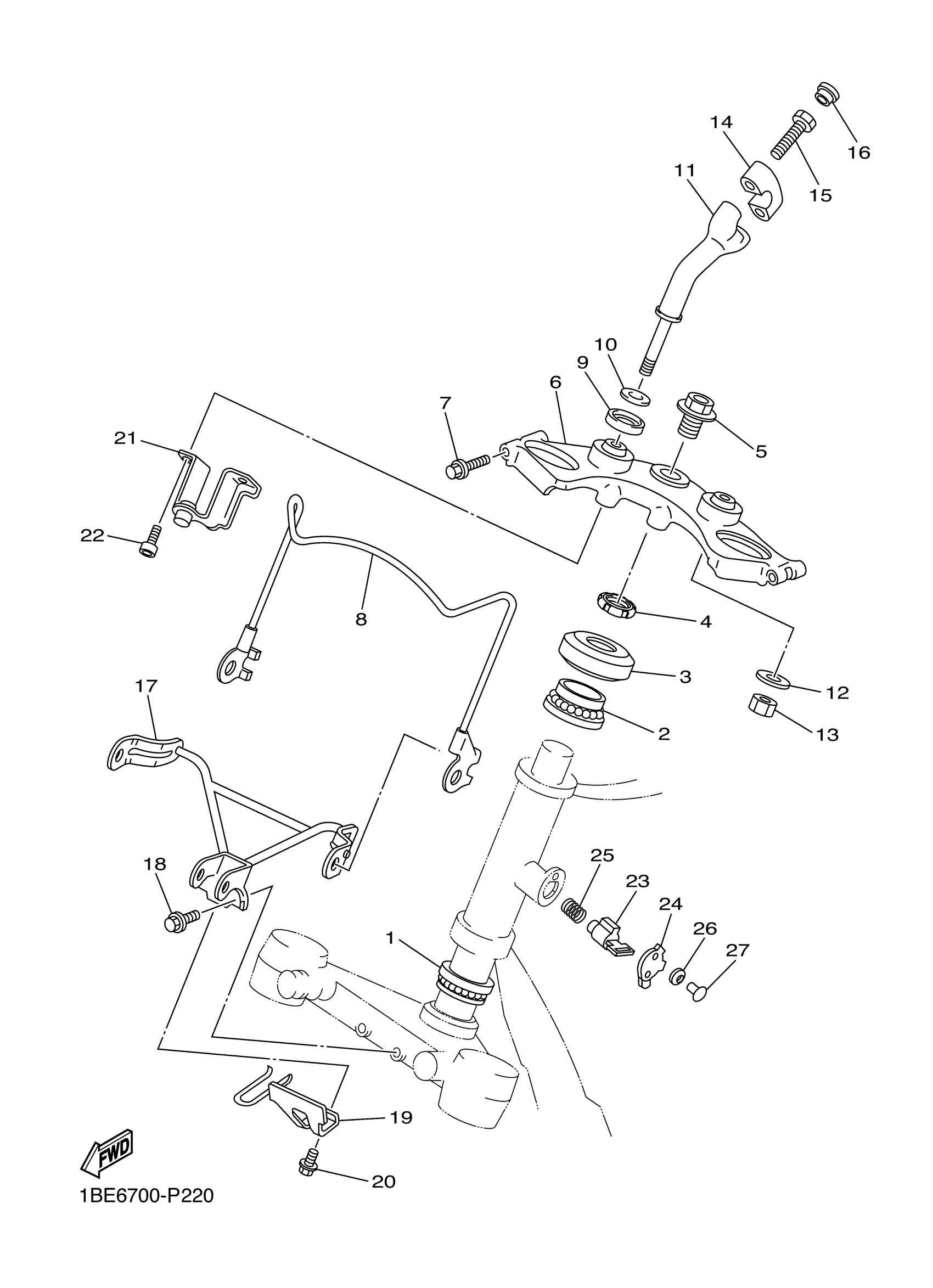

2017 Yamaha XV250 (XV250HS) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4HC)

93399-99942-00

1
Out of stock

2

BEARING

93399-99950-00

—
Out of stock

3

COVER, BALL RACE 1

4HF-23415-00-00

—
Out of stock

4

NUT

90179-25004-00

1
Out of stock

5

BOLT (2A2)

90105-14102-00

1
Out of stock

6

CROWN, HANDLE

2UJ-W2341-00-33

—
Out of stock

7

BOLT, FLANGE(4KG)

95024-08040-00

1
Out of stock

8

STAY, LIGHT GUARD

3DM-23164-00-00

—
Out of stock

9

DAMPER

3DM-23445-00-00

1
Out of stock

10

WASHER, PLATE(42X)

90201-105H3-00

1
Out of stock

11

HOLDER, HANDLE LOWER

3DM-23442-30-00

1
Out of stock

12

WASHER, PLATE (4X7)

90201-105A2-00

1
Out of stock

13

NUT, U

95617-10100-00

1
Out of stock

14

HOLDER, HANDLE UPPER

4H7-23441-01-33

—
Out of stock

15

BOLT,SOCKET

91314-08025-00

1
Out of stock

16

CAP, BOLT (371,447)

341-23469-00-00

—
Out of stock

17

STAY, HEADLIGHT

2UJ-23174-01-00

—
Out of stock

18

BOLT, FLANGE(2UJ)

95024-06016-00

—
Out of stock

19

STAY 3

2UJ-2317M-00-00

—
Out of stock

20

BOLT, FLANGE(2UJ)

95024-06012-00

—
Out of stock

21

STAY

2UJ-2317E-00-00

—
Out of stock

22

BOLT,SOCKET

91317-06016-00

—
Out of stock

23

STEERING LOCK ASSY

2A6-23408-00-00

—
Out of stock

24

CAP, HANDLE LOCK

3DM-23484-00-00

—
Out of stock

25

SPRING, CONICAL (1E6)

90502-09024-00

—
Out of stock

26

WASHER, CONICAL SPRING (3J3)

90208-04029-00

—
Out of stock

27

RIVET 214234830000

90269-04003-00

—
Out of stock
