2017 Yamaha XV250 (XV250HS) Front Fork Diagram

← All diagrams

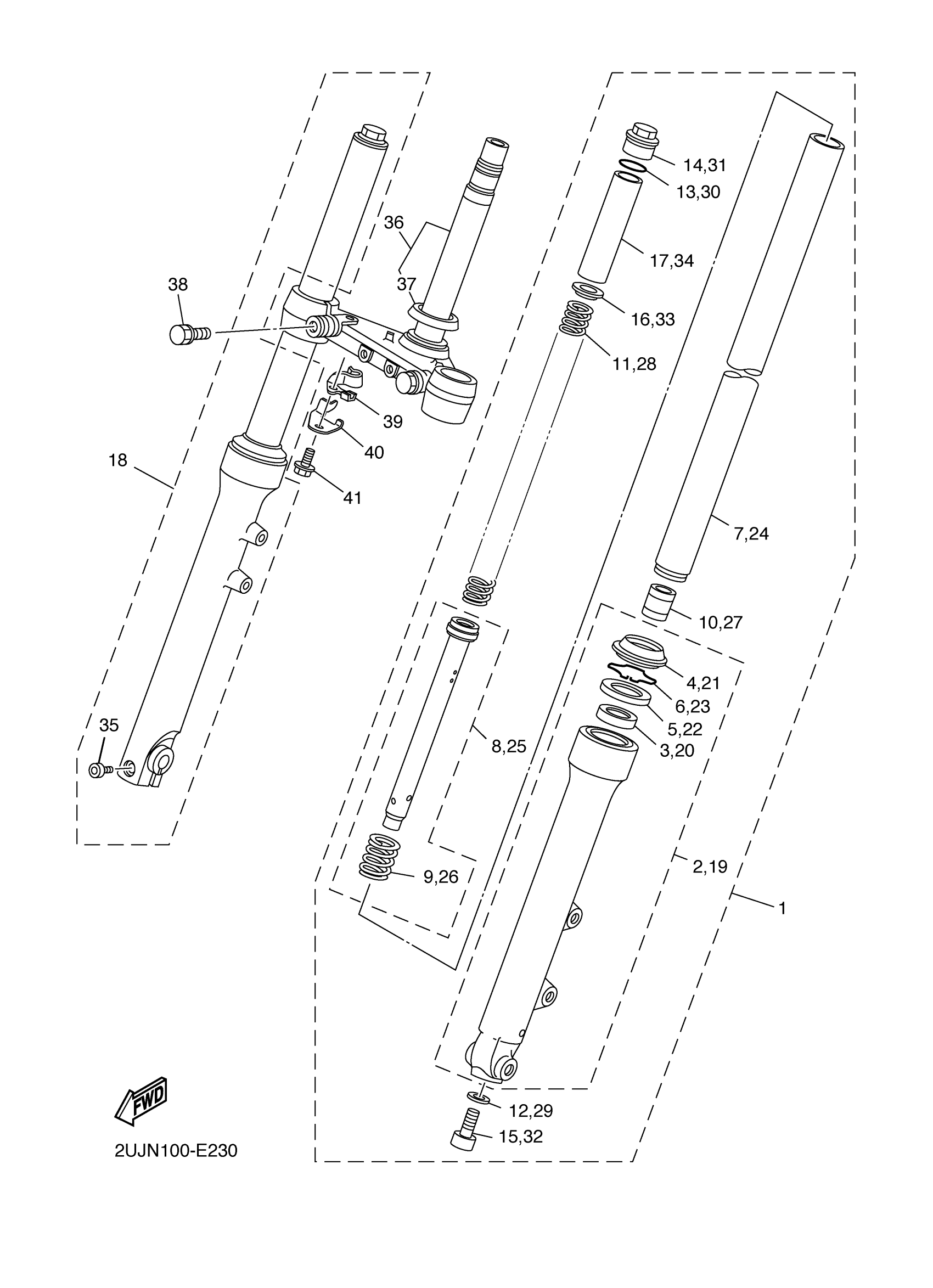

Find the part on the Front Fork diagram for your 2017 Yamaha XV250 (XV250HS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha XV250 (XV250HS) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

2UJ-23102-30-00

—

$659.28

In stock

2

TUBE, OUTER (LEFT)

2UJ-23126-30-00

—

$232.77

In stock

3

METAL, SLIDE 1

51Y-23125-00-00

1

$24.14

In stock

4

SEAL, DUST

2UJ-23144-00-00

1

$25.12

In stock

5

OIL SEAL

2UJ-23145-00-00

1

$18.09

In stock

6

RING, SNAP

22W-23153-L0-00

1

$7.51

In stock

7

INNER TUBE COMP.1

2UJ-23110-00-00

—

$156.52

In stock

8

CYLINDER COMP., FRONT FORK

2UJ-23170-00-00

—

$70.26

In stock

9

.. SPRING, REBOUND

509-23151-L0-00

1
Out of stock

10

SPINDLE, TAPER

3R6-23173-L0-00

1

$15.32

In stock

11

SPRING, FRONT FORK

2UJ-23141-00-00

—

$29.28

In stock

12

GASKET

509-23158-L0-00

1

$14.34

In stock

13

O-RING

3J2-23114-00-00

1

$7.51

In stock

14

BOLT, CAP

2JN-23111-00-00

1

$40.09

In stock

15

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

16

WASHER, SPRING UPPER

3DM-23149-10-00

—

$5.14

In stock

17

. SPACER

58T-23118-L0-00

1
Out of stock

18

FRONT FORK ASSY (R.H)

2UJ-23103-30-00

—

$420.49

In stock

19

TUBE, OUTER (RIGHT)

2UJ-23136-30-00

—

$181.97

In stock

20

METAL, SLIDE 1

51Y-23125-00-00

1

$24.14

In stock

21

SEAL, DUST

2UJ-23144-00-00

1

$25.12

In stock

22

OIL SEAL

2UJ-23145-00-00

1

$18.09

In stock

23

RING, SNAP

22W-23153-L0-00

1

$7.51

In stock

24

INNER TUBE COMP.1

2UJ-23110-00-00

—

$156.52

In stock

25

CYLINDER COMP., FRONT FORK

2UJ-23170-00-00

—

$70.26

In stock

26

.. SPRING, REBOUND

509-23151-L0-00

1
Out of stock

27

SPINDLE, TAPER

3R6-23173-L0-00

1

$15.32

In stock

28

SPRING, FRONT FORK

2UJ-23141-00-00

—

$29.28

In stock

29

GASKET

509-23158-L0-00

1

$14.34

In stock

30

O-RING

3J2-23114-00-00

1

$7.51

In stock

31

BOLT, CAP

2JN-23111-00-00

1

$40.09

In stock

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

33

WASHER, SPRING UPPER

3DM-23149-10-00

—

$5.14

In stock

34

. SPACER

58T-23118-L0-00

1
Out of stock

35

BOLT, SOCKET

91314-08035-00

—
Out of stock

36

UNDER BRACKET COMP.

2UJ-23340-40-00

—

$206.18

In stock

37

SEAL, STEERING

5VC-23462-00-00

—

$7.52

In stock

38

BOLT 1

2UJ-23346-10-00

—

$3.80

In stock

39

HOLDER, BRAKE HOSE

3DM-25886-10-00

—

$14.46

In stock

40

STOPPER, 1

2UJ-26114-00-00

1

$3.66

In stock

41

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock
