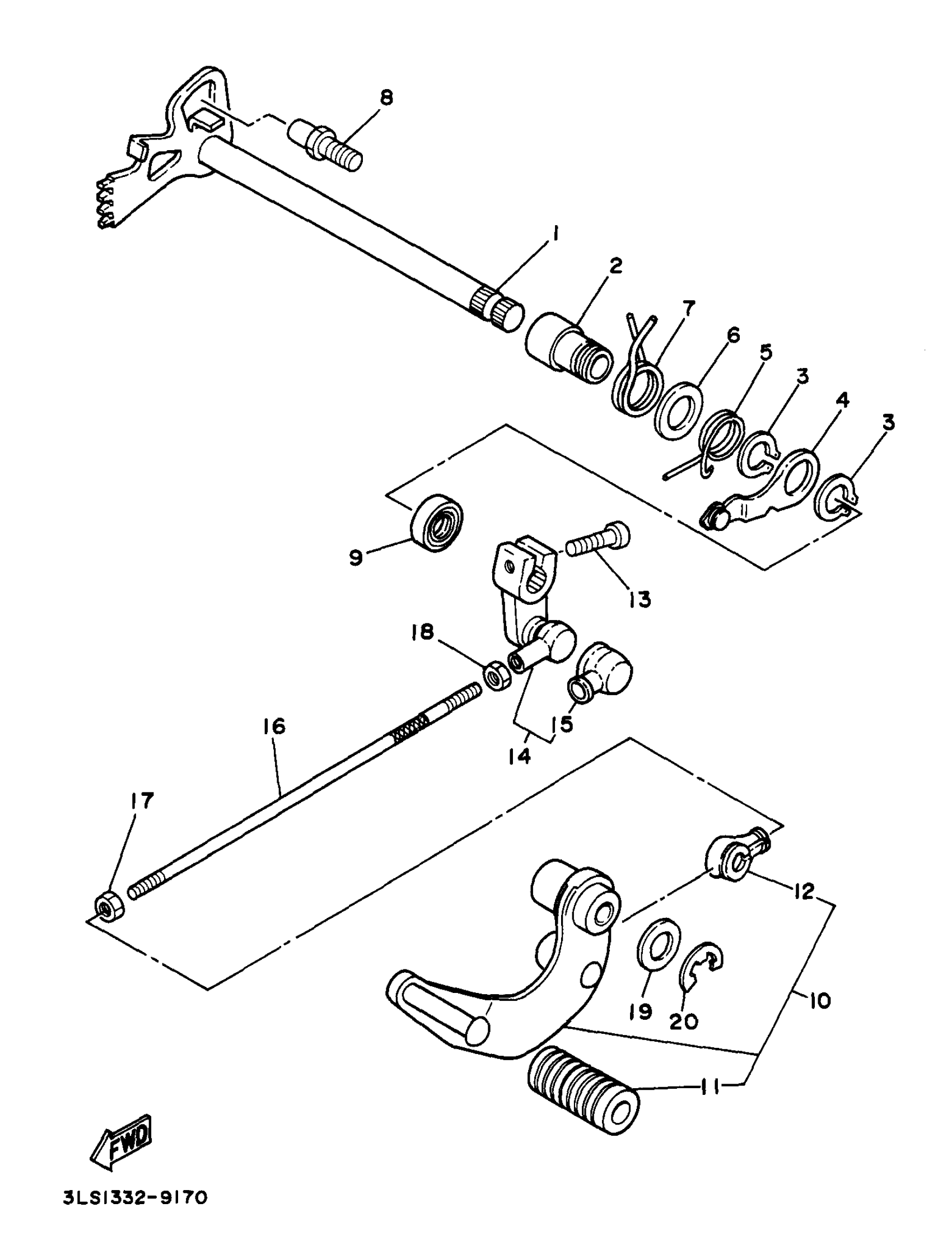

Yamaha XV250HC (VIRAGO 250 CA) 1996 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

2UJ-18101-01-00

$36.69

2

COLLAR (3Y1)

90387-12787-00

$9.55

3

CIRCLIP(1EY)

99009-17400-00

$3.91

4

STOPPER LEVER ASSY

3Y1-18140-00-00

$15.15

5

SPRING, TORSION

90508-26434-00

$2.12

6

WASHER, PLATE (30X)

90201-177G4-00

$6.78

7

SPRING, TORSION (2K7)

90508-32374-00

$5.68

8

STOPPER, SCREW

5VK-18127-00-00

Unavailable

9

SEAL, OIL (30X)

93102-12321-00

$10.14

10

SHIFT PEDAL ASSY

2UJ-18110-00-00

$72.68

11

COVER, CHANGE PEDAL

132-18113-01-00

$6.38

12

COVER, DUST

2H9-18154-00-00

$5.12

13

BOLT(3DM)

97024-06020-00

$6.17

14

SHIFT SHAFT ASSY

2UJ-18130-00-00

$70.89

15

COVER, DUST

2H9-18154-00-00

$5.12

16

ROD, SHIFT

2UJ-18115-03-00

Unavailable

17

NUT (2H9)

90170-06228-00

Unavailable

18

NUT(650)

95380-06700-00

Unavailable

19

WASHER, PLATE (5K7)

90201-124E4-00

Unavailable

20

CIRCLIP(10Y)

99009-12400-00

Unavailable
