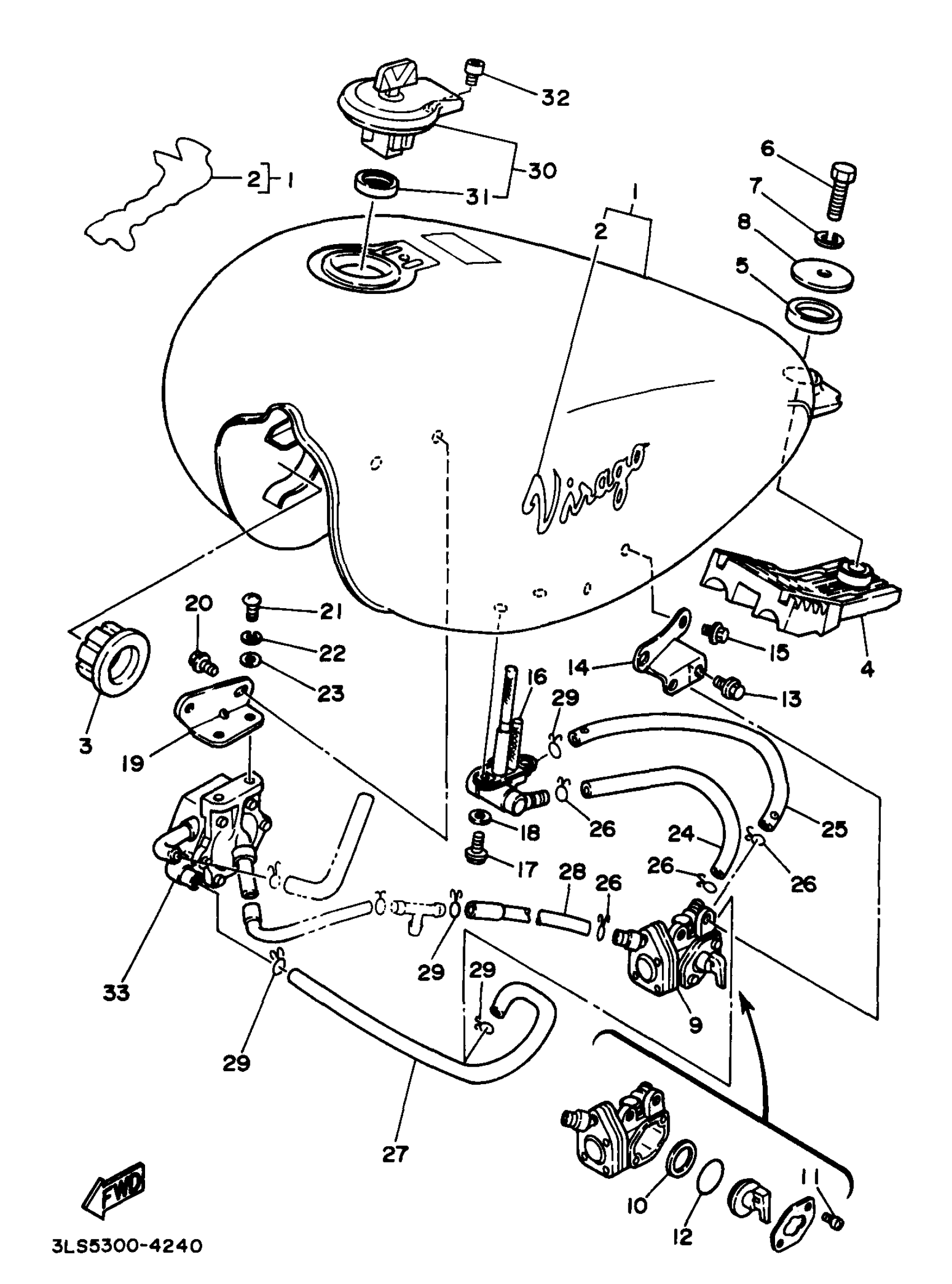

Yamaha XV250HC (VIRAGO 250 CA) 1996 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3LS-Y2410-03-07

Unavailable

2

EMBLEM 1

3DM-24161-10-00

Unavailable

3

DAMPER, LOCATING

4H7-24181-00-00

$6.99

4

DAMPER, LOCATING 2

2UJ-24182-00-00

Unavailable

5

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

6

BOLT

97017-08035-00

Unavailable

7

WASHER(JN5)

92907-08100-00

$8.49

8

WASHER, PLATE (521)

90201-08569-00

$7.49

9

FUEL COCK ASSY 1

2UJ-24500-10-00

$138.99

10

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

SEAL, COCK

1JK-24534-00-00

$8.99

13

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

14

BRACKET, FUEL COCK

2UJ-24544-01-00

Unavailable

15

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

16

FILTER ASSY

2UJ-24560-10-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

BRACKET, FUEL PUMP

2UJ-24491-01-00

Unavailable

20

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

21

SCREW, PAN

98517-06012-00

Unavailable

22

WASHER, SPRING

92907-06100-00

Unavailable

23

WASHER(6TA)

92907-06600-00

Unavailable

24

HOSE (L400)

90445-116K9-00

Unavailable

25

HOSE (L400)

90445-116K9-00

Unavailable

26

CLIP

90467-100A1-00

Unavailable

27

PIPE 2

2UJ-24312-01-00

Unavailable

28

PIPE 3

2UJ-24313-00-00

Unavailable

29

CLIP

90467-100A1-00

Unavailable

30

CAP ASSY

4X7-24602-10-00

Unavailable

31

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

32

BOLT, SOCKET

91317-05010-00

Unavailable

33

FUEL PUMP ASSY

3DM-13910-01-00

Unavailable
