- XV250GW (XV250) 46BG0 2016
REAR WHEEL

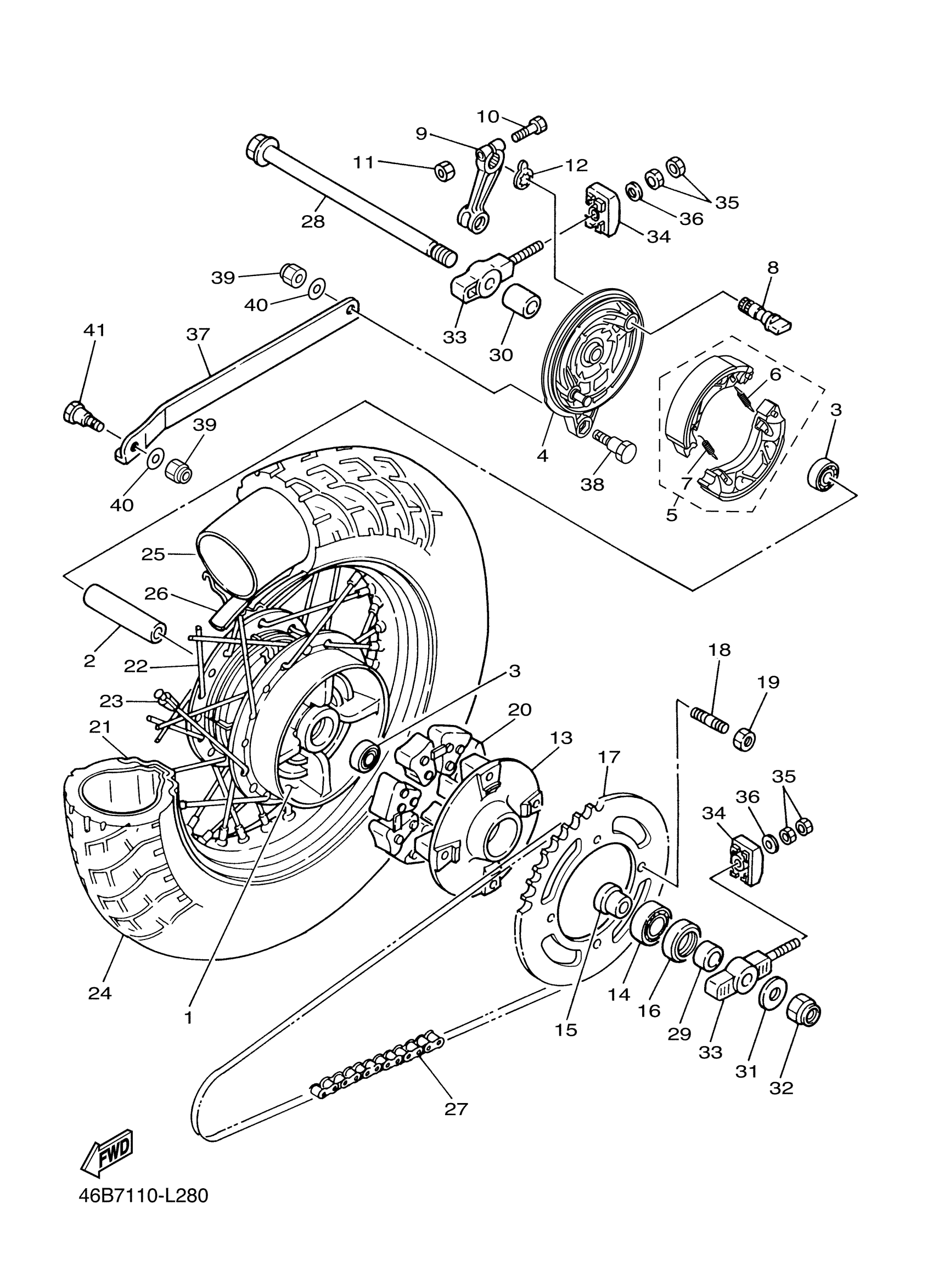

Yamaha XV250GW (XV250) 46BG0 2016 REAR WHEEL Diagram
#
1
HUB, REAR
2UJ-25311-10-00
Unavailable
2
SPACER, BEARING
2UJ-25317-00-00
Unavailable
4
PLATE, BRAKE SHOE
2RH-25321-11-00
Unavailable
9
LEVER, CAMSHAFT
5H0-25355-00-00
Unavailable
13
CLUTCH, HUB
5Y1-25366-10-00
Unavailable
16
OIL SEAL(3BC)
93106-30029-00
Unavailable
17
SPROCKET, DRIVEN (45T)
4DN-25445-30-00
Unavailable
18
BOLT, STUD(1TX)
90116-10485-00
Unavailable
19
NUT, SELF-LOCKING
90185-10170-00
Unavailable
20
DAMPER
5Y1-25364-00-00
Unavailable
21
RIM
94427-15600-00
Unavailable
22
SPOKE SET, REAR
2UJ-25304-02-00
Unavailable
23
BALANCER, WHEEL
3HT-25398-00-00
Unavailable
24
TIRE
94113-151W8-00
Unavailable
25
TUBE(3DM)
94213-15265-00
Unavailable
26
BAND, RIM(3DM)
94313-15154-00
Unavailable
27
CHAIN
9Y581-92113-00
Unavailable
28
AXLE, WHEEL
2UJ-25381-00-00
Unavailable
29
COLLAR
90387-15004-00
Unavailable
30
COLLAR(3DM)
90387-153U1-00
Unavailable
31
WASHER, PLAIN
92990-14200-00
Unavailable
32
NUT, SELF-LOCKING
90185-14002-00
Unavailable
33
PULLER, CHAIN 1
2UJ-25388-00-00
Unavailable
34
PLATE 1
55K-2539F-00-00
Unavailable
35
NUT(2UJ)
95304-08600-00
Unavailable
36
.. WASHER, PLATE
92990-08600-00
Unavailable
37
BAR, TENSION
2UJ-25371-00-00
Unavailable
38
BOLT
90109-08005-00
Unavailable
39
NUT, U
95617-08100-00
Unavailable
40
WASHER(6TA)
92907-08600-00
Unavailable
41
BOLT
90109-08003-00
Unavailable
