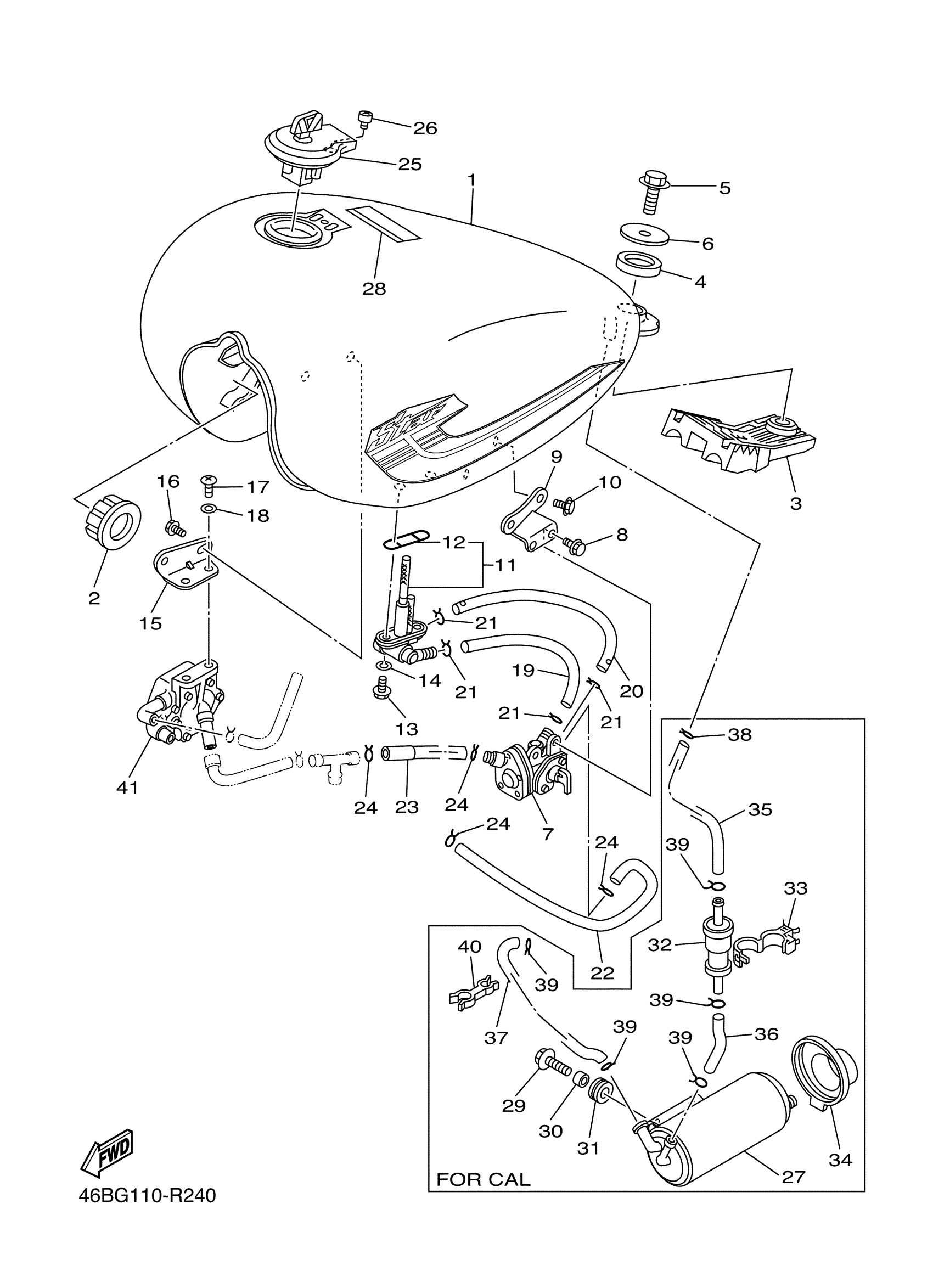

Yamaha XV250GW (XV250) 46BG0 2016 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3BG-Y2410-02-X7

Unavailable

2

DAMPER, LOCATING

4H7-24181-00-00

$6.99

3

DAMPER, LOCATING 2

2UJ-24182-00-00

Unavailable

4

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

5

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

6

WASHER, PLATE (521)

90201-08569-00

$7.49

7

FUEL COCK ASSY 1

2UJ-24500-10-00

$138.99

8

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

9

BRACKET, FUEL COCK

2UJ-24544-01-00

Unavailable

10

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

11

FILTER ASSY

2UJ-24560-10-00

$45.99

12

O-RING

4X8-24512-10-00

$14.49

13

SCREW 256241430000

90149-06011-00

$5.60

14

WASHER, PLATE(3MB)

90202-05187-00

$1.38

15

BRACKET, FUEL PUMP

2UJ-24491-01-00

Unavailable

16

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

17

SCREW, PAN

98517-06012-00

Unavailable

18

WASHER(6TA)

92907-06600-00

Unavailable

19

HOSE

90445-11057-00

Unavailable

20

HOSE

90445-11058-00

Unavailable

21

CLIP

90467-100A1-00

Unavailable

22

PIPE 2

2UJ-24312-10-00

Unavailable

23

PIPE 3

2UJ-24313-00-00

Unavailable

24

CLIP

90467-100A1-00

Unavailable

25

CAP ASSY

20K-24602-10-00

Unavailable

26

BOLT, SOCKET

91317-05010-00

Unavailable

27

CANISTER ASSY

3BG-24170-00-00

Unavailable

28

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

29

BOLT, WITH WASHER(81H)

90119-06118-00

Unavailable

30

COLLAR(4DN)

90387-0600V-00

Unavailable

31

GROMMET (16R)

90480-14329-00

Unavailable

32

ROLL OVER VALVE ASSY

5PX-24180-00-00

Unavailable

33

CLAMP(4HM)

90464-15192-00

Unavailable

34

COVER, CANISTER

2JU-2419E-00-00

Unavailable

35

PIPE 10

3BG-24321-10-00

Unavailable

36

PIPE 11

3BG-24322-10-00

Unavailable

37

PIPE 12

3BG-24323-10-00

Unavailable

38

CLIP

90467-090A2-00

Unavailable

39

CLIP

90467-100A1-00

Unavailable

40

CLAMP(3BG)

90464-16119-00

Unavailable

41

FUEL PUMP ASSY

3DM-13910-01-00

Unavailable
