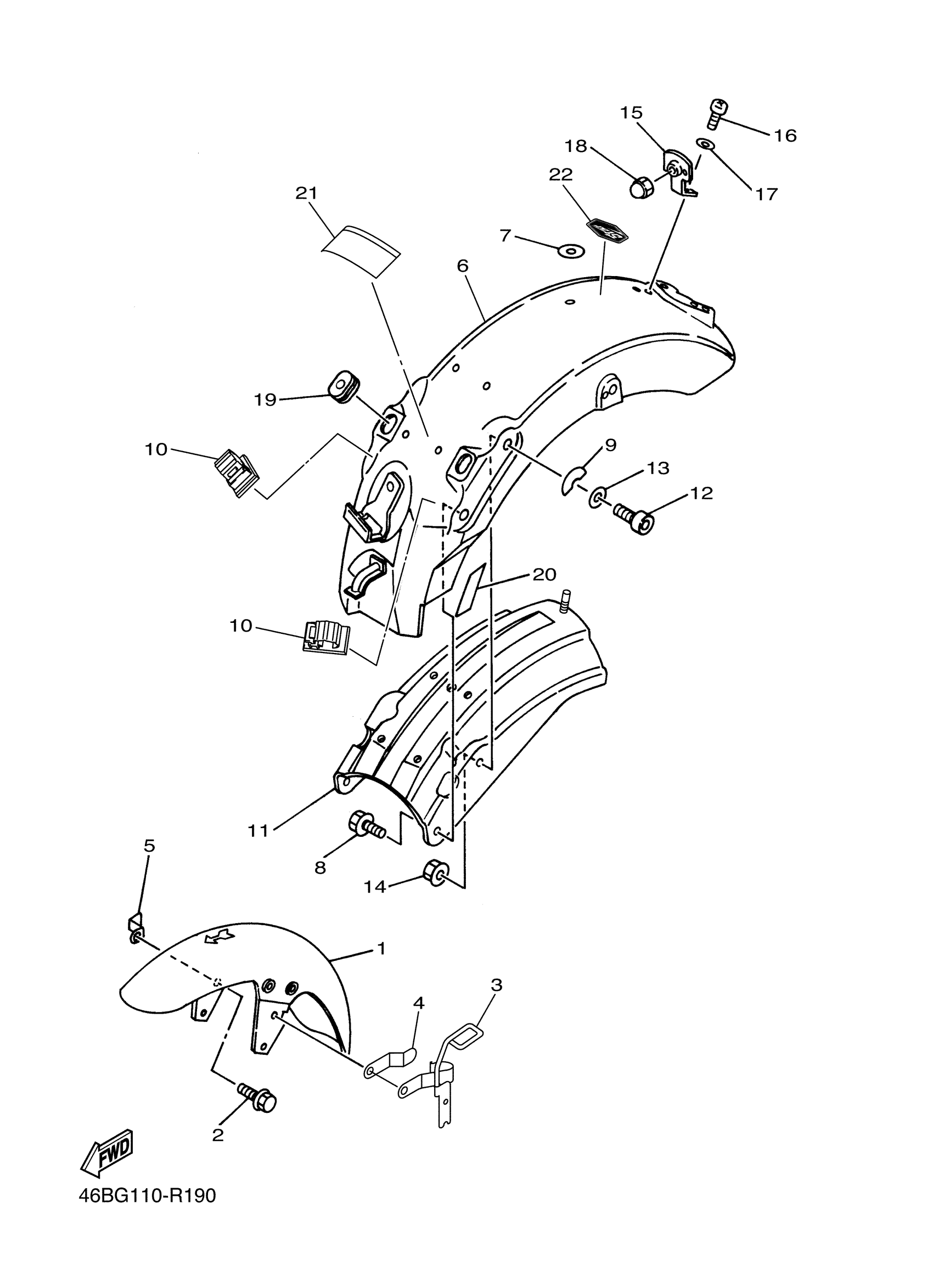

Yamaha XV250GW (XV250) 46BG0 2016 FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP.
2UJ-21510-01-P9
Unavailable
5
BRACKET
3DN-21586-00-00
Unavailable
6
REAR FENDER COMP.
2UJ-21610-00-PF
Unavailable
11
REINF. COMP.
2UJ-21670-20-00
Unavailable
16
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
17
WASHER(1RW)
92907-05600-00
Unavailable
18
NUT, CAP
95307-05800-00
Unavailable
19
GROMMET (438)
90480-15061-00
Unavailable
20
SEAL 3
2UJ-2173M-01-00
Unavailable
21
LABEL, NOTICE BATTERY
10D-2815N-00-00
Unavailable
22
EMBLEM 1
B33-2163G-10-00
Unavailable
