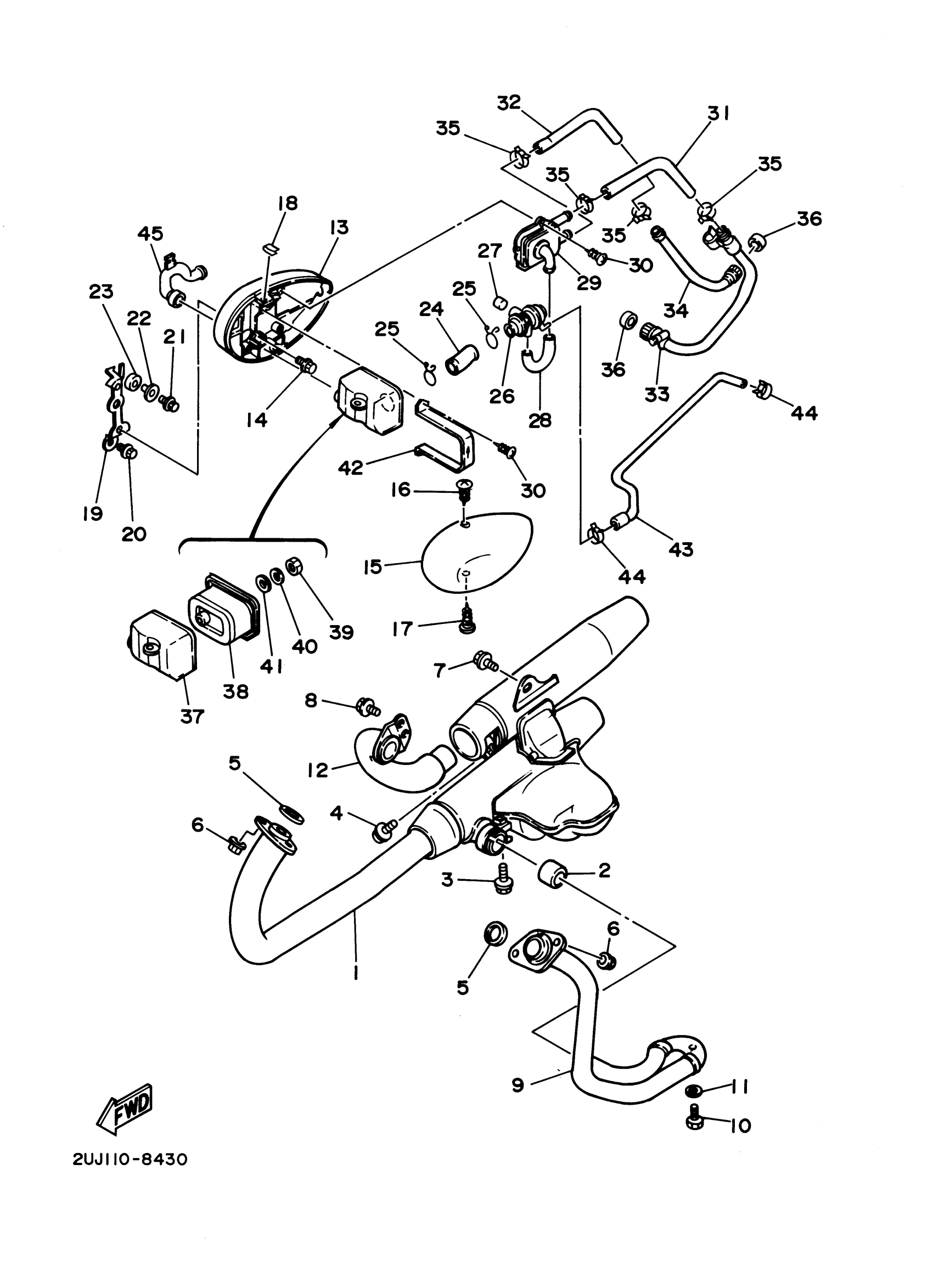

Yamaha XV250GW (XV250) 46BG0 2016 EXHAUST Diagram
#
4
BOLT, FLANGE
95817-06025-00
Unavailable
9
PIPE, EXHAUST 2
2UJ-14621-00-00
Unavailable
15
COVER 1
2GV-14603-00-00
Unavailable
16
SCREW, TAPPING(3BM)
97704-40012-00
Unavailable
17
SCREW, TAPPING(2GV)
90163-04003-00
Unavailable
18
NUT, SPRING (26H)
90183-04027-00
Unavailable
19
PLATE, CLEANER CASE FITTING
2UJ-14484-00-00
Unavailable
20
BOLT, FLANGE
95817-06010-00
Unavailable
21
BOLT, FLANGE
95817-06025-00
Unavailable
22
COLLAR 437216330000
90387-07391-00
Unavailable
23
BUSH
90385-10026-00
Unavailable
24
HOSE, BEND 2
3BM-14882-00-00
Unavailable
25
CLIP(2LJ)
90467-26111-00
Unavailable
26
AIR CUT VALVE ASS'Y
3BG-14840-00-00
Unavailable
27
PLUG (17J)
90338-10132-00
Unavailable
28
HOSE, BEND 3
3BM-14883-00-00
Unavailable
29
REED VALVE ASSY
42H-14808-00-00
Unavailable
30
SCREW, PAN TAP.2
97707-60514-00
Unavailable
31
HOSE, BEND 4
3BG-14884-00-00
Unavailable
32
HOSE, BEND 5
3BG-14885-00-00
Unavailable
33
PIPE 3
3BG-14873-00-00
Unavailable
34
PIPE 4
3BG-14874-00-00
Unavailable
35
CLIP
90468-08104-00
Unavailable
36
GASKET, MUFFLER
4KM-14714-01-00
Unavailable
37
CASE, AIR CLEANER
42H-14857-00-00
Unavailable
38
CAP, CASE
3BG-14858-00-00
Unavailable
39
NUT, HEXAGON
95317-05600-00
Unavailable
40
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
41
WASHER, PLATE (463)
90202-05057-00
Unavailable
42
BRACKET
3BM-14867-00-00
Unavailable
43
HOSE, VACUUM SENSING 1
3BG-13542-00-00
Unavailable
44
CLIP(41W)
90467-08092-00
Unavailable
45
HOSE, BEND 1
1TA-14881-00-00
Unavailable
