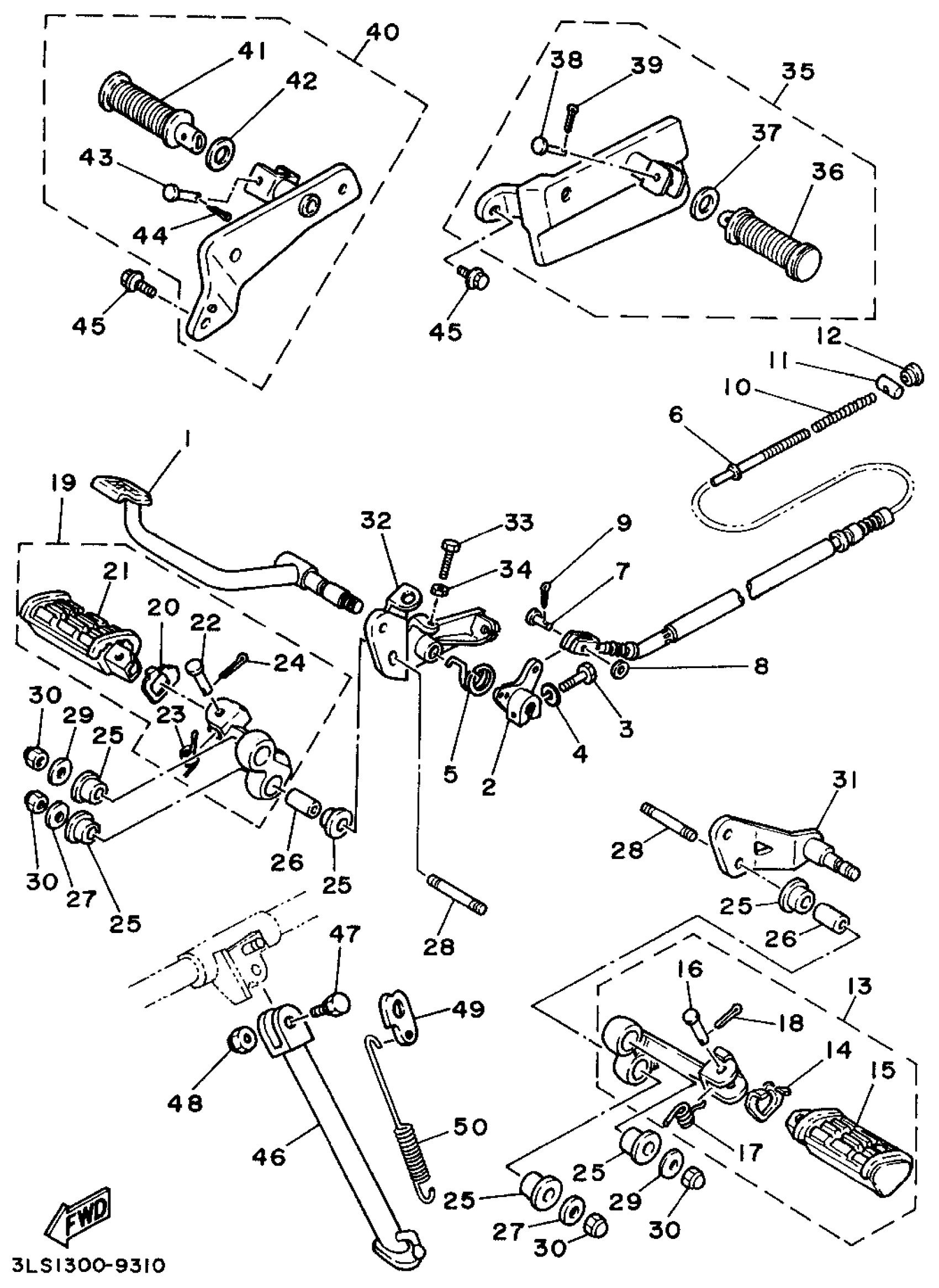

Yamaha XV250GC (VIRAGO 250 CA) 1995 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

2UJ-27211-01-00

$112.99

2

LEVER

2UJ-27262-02-00

$28.99

3

BOLT (1T1)

90109-06470-00

$5.60

4

WASHER, SPRING

92907-06100-00

$4.25

5

SPRING, BRAKE PEDAL

2UJ-27216-00-00

Unavailable

6

CABLE, BRAKE

2UJ-26351-00-00

$126.99

7

PIN, CLEVIS (5X6)

91701-06018-00

$4.94

8

WASHER(6TA)

92907-06200-00

$8.49

9

PIN, COTTER

91490-20025-00

$1.99

10

SPRING, (180-27236-00)

90501-10245-00

$8.49

11

PIN 1562723700

90249-12008-00

$8.49

12

NUT (25K)

90179-06411-00

$8.49

13

FRONT FOOTREST ASSY (LEFT)

2UJ-27410-00-00

Unavailable

14

WASHER, FOOTREST

4X7-27417-00-00

Unavailable

15

COVER, FOOTREST

4X7-27413-00-00

$33.99

16

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

17

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

FRONT FOOTREST ASSY (RIGHT)

2UJ-27420-00-00

Unavailable

20

WASHER, FOOTREST

4X7-27417-00-00

Unavailable

21

COVER, FOOTREST

4X7-27413-00-00

$33.99

22

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

23

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

DAMPER, FOOTREST

2UJ-27414-00-00

Unavailable

26

COLLAR(2UJ)

90387-100V6-00

Unavailable

27

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

28

BOLT, STUD(3DM)

90116-10519-00

Unavailable

29

WASHER PLATE (3L6)

90201-10742-00

Unavailable

30

NUT, CROWN (650)

95380-10800-00

Unavailable

31

BRACKET 4

2UJ-2741L-00-33

Unavailable

32

BRACKET 5

2UJ-2742L-00-33

Unavailable

33

SCREW 341272170000

90153-06008-00

Unavailable

34

NUT(6TA)

95317-06600-00

Unavailable

35

REAR FOOTREST ASSY 1

2UJ-27430-00-35

Unavailable

36

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

37

WASHER, PLATE (888)

90201-20279-00

Unavailable

38

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

39

PIN, COTTER

91490-20025-00

$1.99

40

REAR FOOTREST ASSY 2

2UJ-27440-00-35

Unavailable

41

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

42

WASHER, PLATE (888)

90201-20279-00

Unavailable

43

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

44

PIN, COTTER

91490-20025-00

$1.99

45

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

46

STAND, SIDE

2UJ-27311-01-00

Unavailable

47

BOLT(2GH)

90109-104E6-00

Unavailable

48

NUT, U

90185-10037-00

Unavailable

49

LINK, SIDE STAND

3VD-27315-00-00

Unavailable

50

SPRING, SIDE STAND

2UJ-27316-00-00

Unavailable
