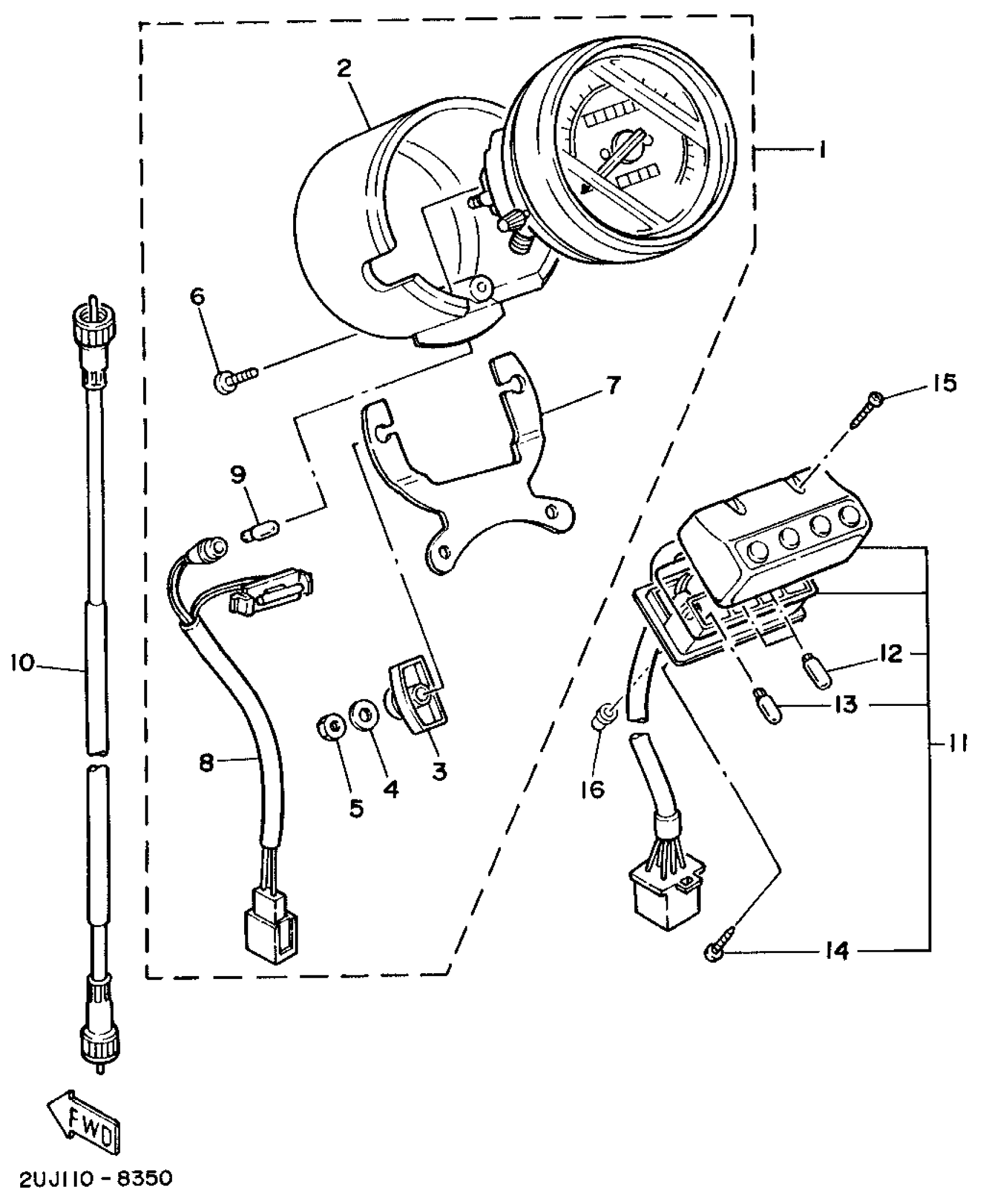

Yamaha XV250GC (VIRAGO 250 CA) 1995 METER Diagram

SPEEDOMETER ASSEMBLY

2UJ-83570-01-00

Unavailable

COVER, SPEEDOMETER

1FK-83507-00-00

$113.99

DAMPER

1FG-83523-00-00

Unavailable

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

NUT, HEXAGON (663)

95380-05600-00

$8.49

SCREW, TAPPING (10M)

90164-04009-00

$7.49

BRACKET, METER

2GV-83519-00-00

Unavailable

SOCKET CORD ASSEMBLY

2GV-83509-00-00

Unavailable

BULB (T6.5 12V-3W)

42X-83517-00-00

$8.99

SPEEDOMETER CABLE ASSY

16M-83550-01-00

$41.99

PILOT LIGHT ASSY

5AJ-83530-00-00

Unavailable

BULB (T6.5 12V-3W)

42X-83517-00-00

$8.99

BULB (12V-1.7W)

3FV-83517-00-00

$8.99

. SCREW, TAPPING

90167-03058-00

Unavailable

SCREW, PAN HEAD(MK5)

98507-04035-00

$8.49

NUT(2UJ)

90179-04579-00

Unavailable
