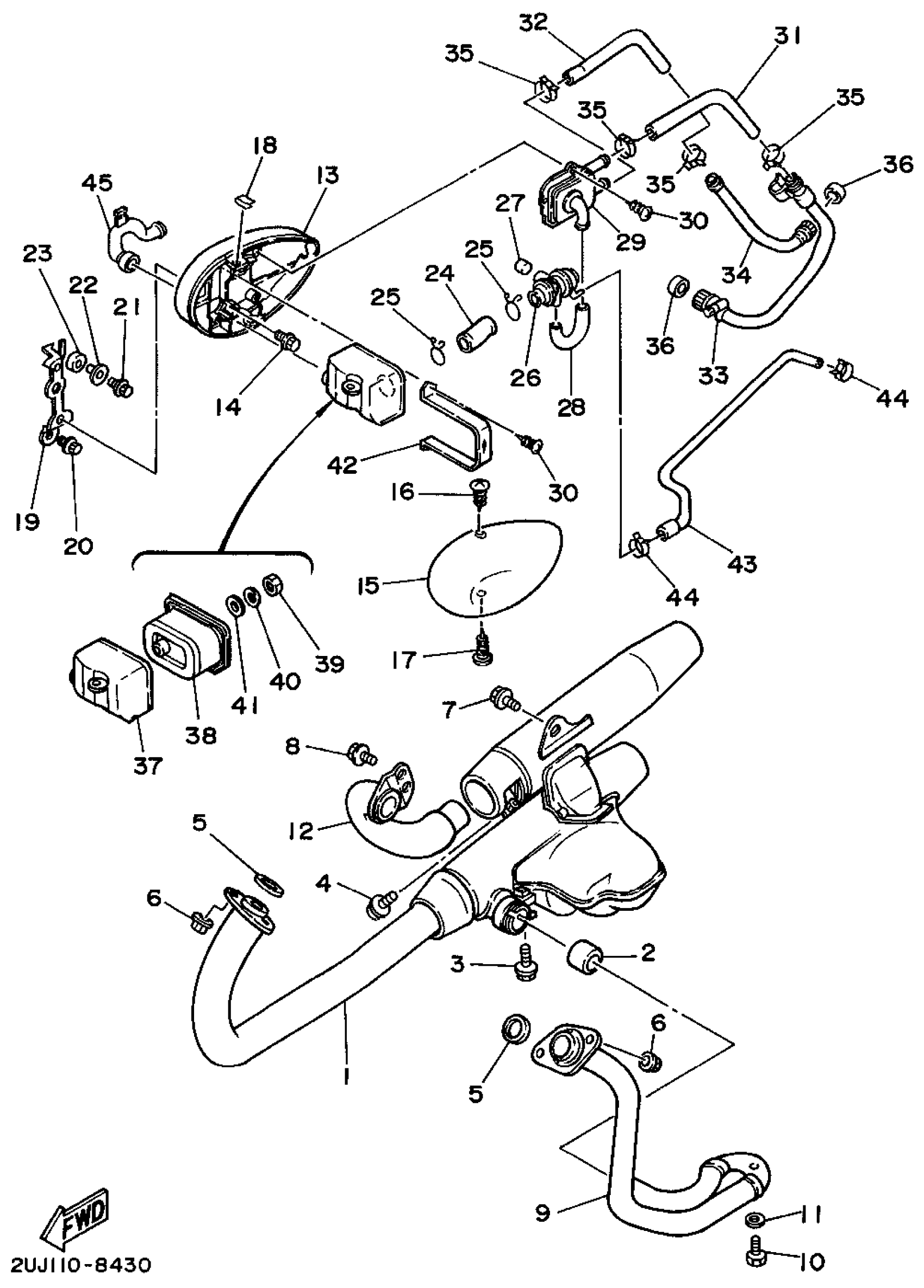

Yamaha XV250GC (VIRAGO 250 CA) 1995 EXHAUST CALIFORNIA ONLY Diagram

MUFFLER COMP. 1

2UJ-14703-02-00

$1,208.99

GASKET, MUFFLER

4FU-14714-10-00

$19.99

BOLT, FLANGE

95817-08035-00

$9.49

BOLT, FLANGE

95817-06025-00

Unavailable

GASKET, EXHAUST PIPE

3DM-14613-00-00

$7.99

NUT(2UJ)

90179-06668-00

$8.49

BOLT, FLANGE(8BD)

95807-10014-00

$2.34

BOLT, FLANGE

95817-08012-00

$5.49

PIPE, EXHAUST 2

2UJ-14621-00-00

Unavailable

BOLT (11T)

90101-06576-00

$8.49

WASHER(6TA)

92907-06600-00

$2.72

PIPE, EXHAUST 3

2UJ-14631-00-00

$99.99

PLATE, AIR CLEANER

2GV-14663-00-00

$68.99

BOLT, FLANGE

95817-06020-00

$3.81

COVER 1

2GV-14603-00-00

Unavailable

SCREW, TAPPING(3BM)

97704-40012-00

Unavailable

SCREW, TAPPING(2GV)

90163-04003-00

Unavailable

NUT, SPRING (26H)

90183-04027-00

Unavailable

PLATE, CLEANER CASE FITTING

2UJ-14484-00-00

Unavailable

BOLT, FLANGE

95817-06010-00

Unavailable

BOLT, FLANGE

95817-06025-00

Unavailable

COLLAR 437216330000

90387-07391-00

Unavailable

BUSH

90385-10026-00

Unavailable

HOSE, BEND 2

3BM-14882-00-00

Unavailable

CLIP(2LJ)

90467-26111-00

Unavailable

AIR CUT VALVE ASS'Y

3BG-14840-00-00

Unavailable

PLUG (17J)

90338-10132-00

Unavailable

HOSE, BEND 3

3BM-14883-00-00

Unavailable

REED VALVE ASSY

42H-14808-00-00

Unavailable

SCREW, PAN TAP.2

97707-60514-00

Unavailable

HOSE, BEND 4

3BG-14884-00-00

Unavailable

HOSE, BEND 5

3BG-14885-00-00

Unavailable

PIPE 3

3BG-14873-00-00

Unavailable

PIPE 4

3BG-14874-00-00

Unavailable

CLIP

90468-08104-00

Unavailable

GASKET, MUFFLER

42H-14714-10-00

Unavailable

CASE, AIR CLEANER

42H-14857-00-00

Unavailable

CAP, CASE

3BG-14858-00-00

Unavailable

NUT, HEXAGON

95317-05600-00

Unavailable

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

WASHER, PLATE (463)

90202-05057-00

Unavailable

BRACKET

3BM-14867-00-00

Unavailable

HOSE, VACUUM SENSING 1

3BG-13542-00-00

Unavailable

CLIP(41W)

90467-08092-00

Unavailable

HOSE, BEND 1

1TA-14881-00-00

Unavailable
