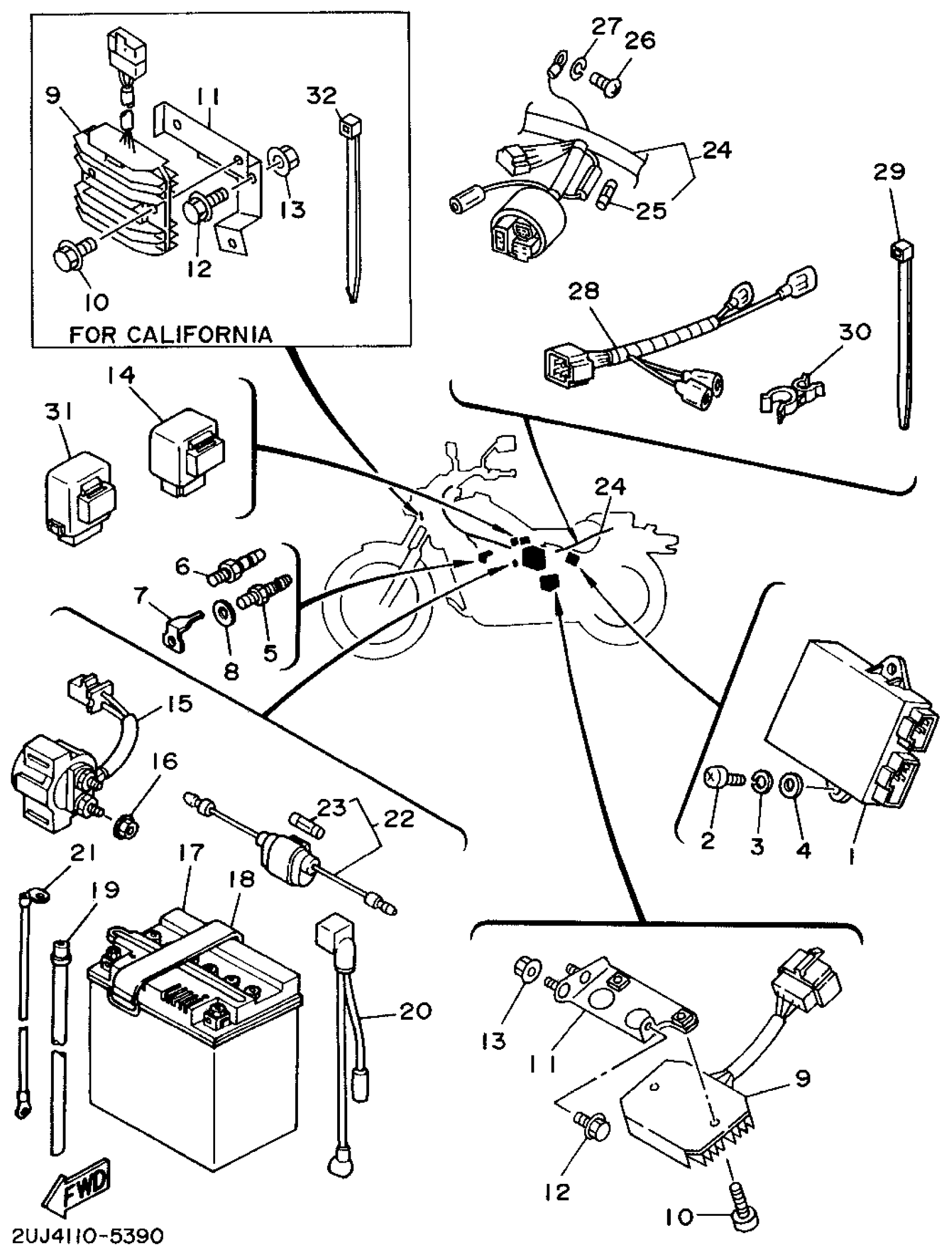

Yamaha XV250GC (VIRAGO 250 CA) 1995 ELECTRICAL 1 Diagram

IGNITOR UNIT ASSY

2UJ-82305-00-00

$379.99

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

HEATER ASSY (14V-20W)

3DM-83790-00-00

Unavailable

HEATER ASSY

5FU-83790-20-00

$49.99

TERMINAL 1

5FU-82103-00-00

$7.99

WASHER, PLATE

90201-08016-00

$8.49

WASHER, PLATE

90201-08016-00

$8.49

RECTIFIER & REGULATOR ASSY

3VD-81960-01-00

$267.99

BOLT(3AK)

90109-067E6-00

Unavailable

BOLT, FLANGE

95817-06020-00

$3.81

BRACKET, REGULATOR

3BG-21287-00-00

Unavailable

BRACKET, REGULATOR

3DM-21287-00-00

Unavailable

BOLT, FLANGE

95817-06010-00

$4.73

BOLT, FLANGE

95817-06010-00

$4.73

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

RELAY ASSY

2UJ-81950-02-00

Unavailable

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

YB10LA2 YUASA BATTERY

YB1-0LA20-00-00

Unavailable

BAND, BATTERY

118-82131-00-00

Unavailable

HOSE

90445-08719-00

Unavailable

WIRE, PLUS LEAD

2UJ-82115-01-00

Unavailable

WIRE, MINUS LEAD

2UJ-82116-00-00

Unavailable

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

FUSE

1A0-82161-00-00

Unavailable

WIRE HARNESS ASSEMBLY

3BG-82590-10-00

Unavailable

WIRE HARNESS ASSEMBLY

3DN-82590-10-00

Unavailable

FUSE (10A)

1E6-82151-00-00

Unavailable

SCREW, PAN

98507-06010-00

Unavailable

WASHER, SPRING

92907-06100-00

$4.25

WIRE, SUB LEAD

2UJ-82509-01-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

CLAMP(3BG)

90464-16119-00

Unavailable

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable

CLAMP(3XW)

90464-35132-00

Unavailable
