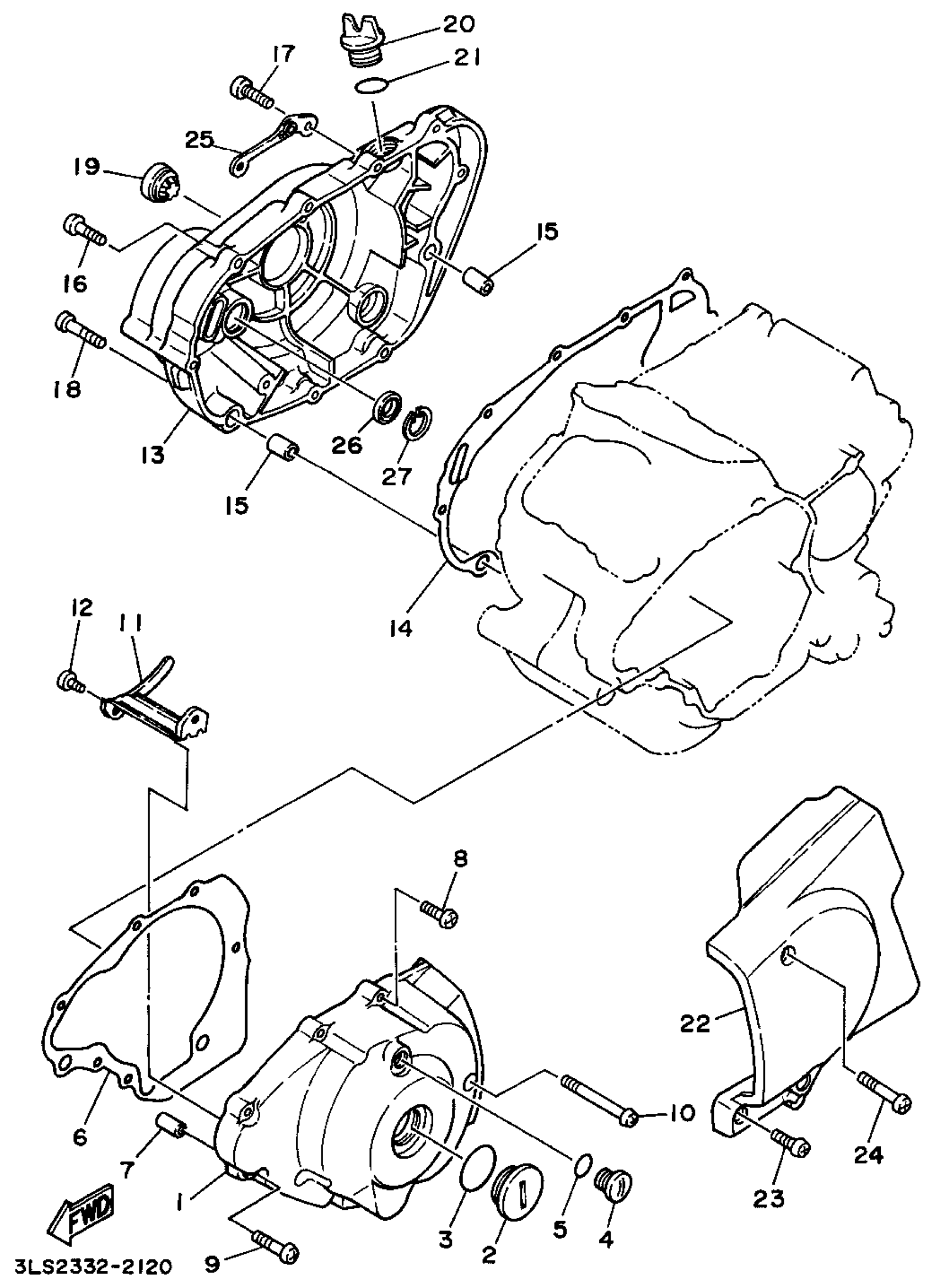

Yamaha XV250GC (VIRAGO 250 CA) 1995 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2UJ-15411-01-00

Unavailable

2

PLUG, STRAIGHT SCREW (5H0)

90340-32069-00

$31.99

3

O-RING (341)

93210-32172-00

$7.49

4

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

GASKET, CRANKCASE COVER 1

4RF-15451-01-00

Unavailable

7

PIN, DOWEL

99530-12016-00

$4.89

8

SCREW, PAN HEAD(6B0)

97885-06025-00

Unavailable

9

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

10

SCREW PAN HEAD

98580-06570-00

$18.99

11

CLAMP(3DM)

90465-06322-00

$11.49

12

SCREW, PAN

98507-06010-00

$3.55

13

COVER, CRANKCASE 2

2UJ-15421-00-00

Unavailable

14

GASKET, CRANKCASE COVER 2

4RF-15461-01-00

$25.99

15

PIN, DOWEL

99530-12016-00

$4.89

16

SCREW, PAN HEAD(6B0)

97885-06025-00

Unavailable

17

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

18

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

19

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

20

PLUG, OIL

3Y1-15363-10-00

Unavailable

21

O-RING (646)

93210-19123-00

Unavailable

22

COVER, CRANKCASE 3

2UJ-15431-02-00

Unavailable

23

SCREW, PAN HEAD(6B0)

97885-06025-00

Unavailable

24

SCREW PAN HEAD

98580-06550-00

Unavailable

25

HOLDER, CLUTCH CABLE

2UJ-15441-00-00

Unavailable

26

OIL SEAL (14X25X5.5-583)

93101-14089-00

Unavailable

27

CIRCLIP

99009-25500-00

Unavailable
