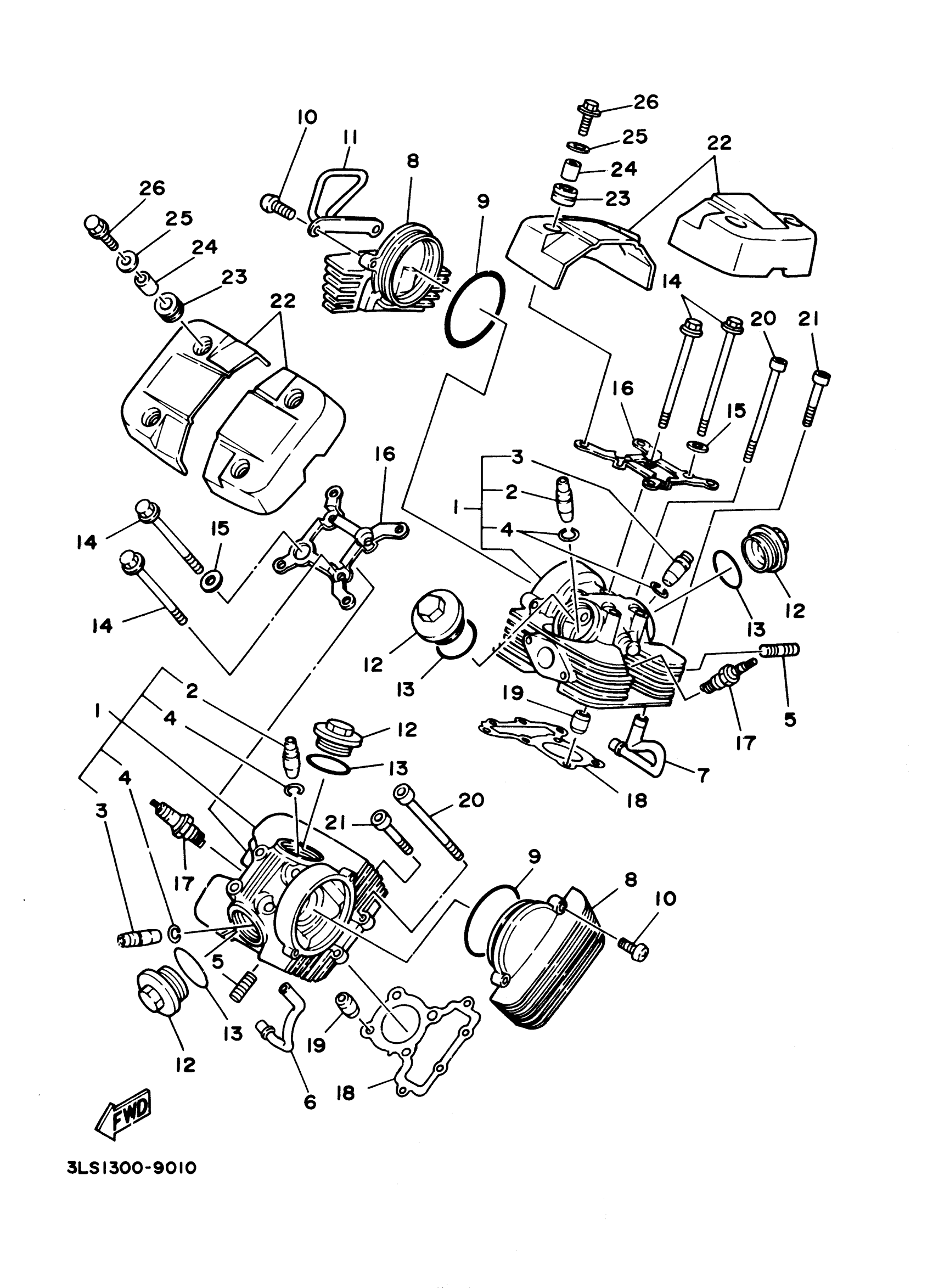

Yamaha XV250FL (V STAR 250) 46BD0 2015 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3BG-11102-01-00

Unavailable

2

GUIDE, INTAKE VALVE

2UJ-11133-10-00

$51.99

3

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$88.99

4

CIRCLIP (22F)

93440-10109-00

$8.49

5

BOLT, STUD

90116-06036-00

$3.28

6

PIPE 1

3BG-14871-00-00

Unavailable

7

PIPE 2

3BG-14872-00-00

Unavailable

8

COVER, CYLINDER HEAD SIDE 1

2UJ-11185-01-00

Unavailable

9

O-RING (14X)

93210-78544-00

$12.49

10

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

11

BRACKET, CYLINDER HEAD COVER

2UJ-11152-00-00

$25.99

12

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$20.99

13

O-RING(55X)

93210-44704-00

$7.49

14

BOLT, FLANGE

90105-08181-00

$8.49

15

WASHER, PLATE

90201-080L7-00

$4.82

16

BRACKET, CYLINDER HEAD COVER 2

2UJ-11142-01-00

Unavailable

17

C6HSA NGK SPLUG 4PK

C6H-SA000-00-00

Unavailable

17

PLUG, SPARK (ND U20FS-U)

94701-00257-00

Unavailable

18

GASKET, CYLINDER HEAD 1

2UJ-11181-01-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

20

BOLT, SOCKET

91317-06110-00

Unavailable

21

BOLT,SOCKET

91317-06040-00

Unavailable

22

COVER, CYLINDER HEAD SIDE 2

3DM-11186-01-00

Unavailable

23

GROMMET (462)

90480-13018-00

Unavailable

24

COLLAR

90387-06043-00

Unavailable

25

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

26

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable
