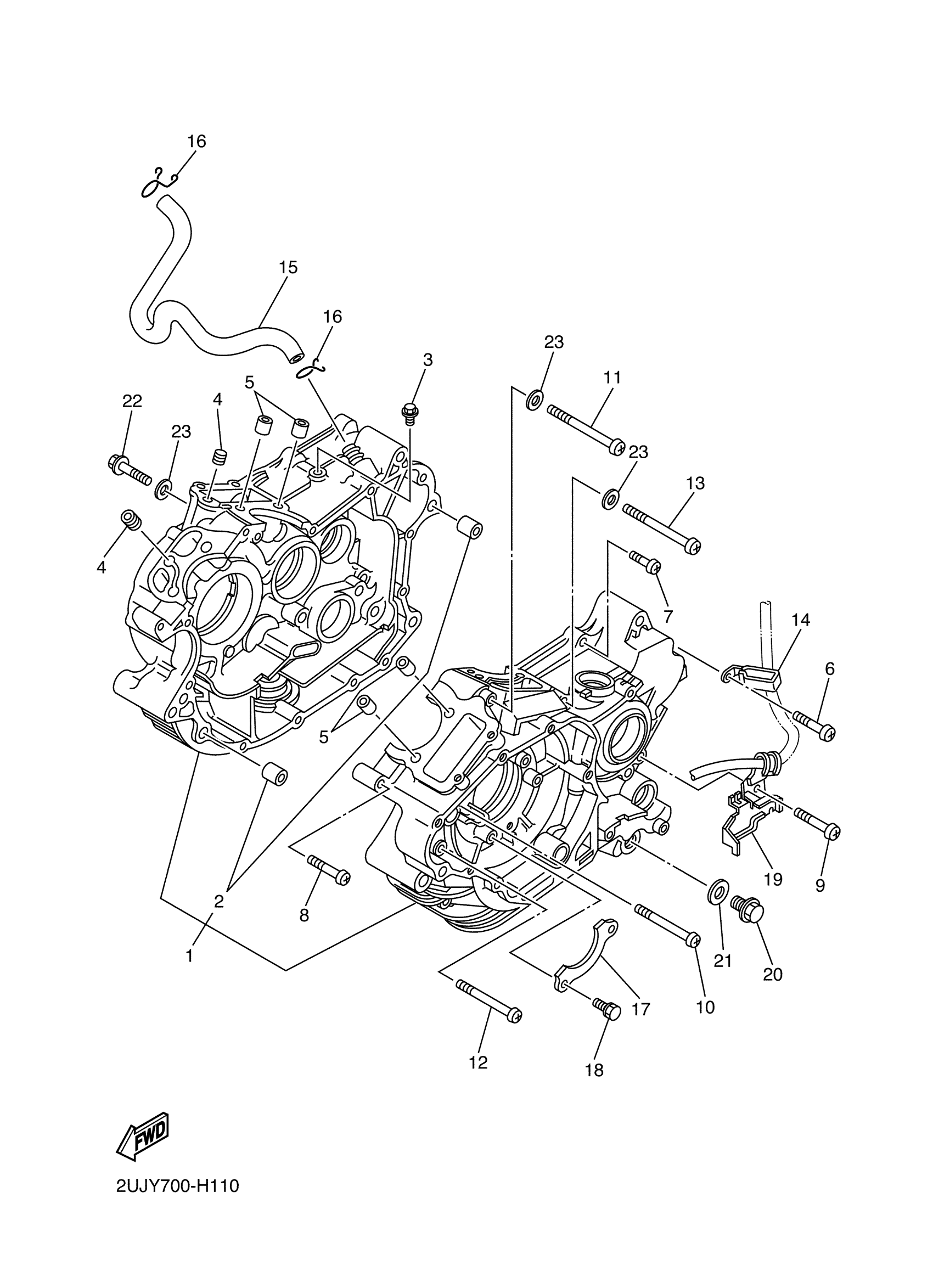

Yamaha XV250FL (V STAR 250) 46BD0 2015 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

2UJ-15100-03-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.85

3

BOLT, FLANGE

95817-06012-00

$1.40

4

NOZZLE 1

2UJ-15138-00-00

Unavailable

5

PIN, DOWEL(3VD)

99530-10114-00

$2.13

6

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

7

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

8

SCREW PAN HEAD

98580-06040-00

$5.75

9

SCREW, PAN

98507-06060-00

$5.23

10

SCREW, PAN HEAD

98507-06070-00

$6.45

11

SCREW PAN HEAD

98580-06570-00

$16.18

12

SCREW, PAN

98507-06080-00

$5.15

13

SCREW, PAN HEAD(3DN)

98504-06080-00

Unavailable

14

CLAMP(51Y)

90465-08277-00

Unavailable

15

PIPE, BREATHER 1

2UJ-11166-00-00

Unavailable

16

CLIP (371)

90467-14015-00

Unavailable

17

PLATE

2UJ-12279-00-00

Unavailable

18

BOLT, WITH WASHER

97512-06512-00

Unavailable

19

CLAMP

90465-08060-00

Unavailable

20

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

21

GASKET

214-11198-01-00

Unavailable

22

SCREW

90153-06029-00

Unavailable

23

GASKET 256113960000

90430-06014-00

Unavailable
