2014 Yamaha V Star 250 (XV250EW) Steering Diagram

← All diagrams

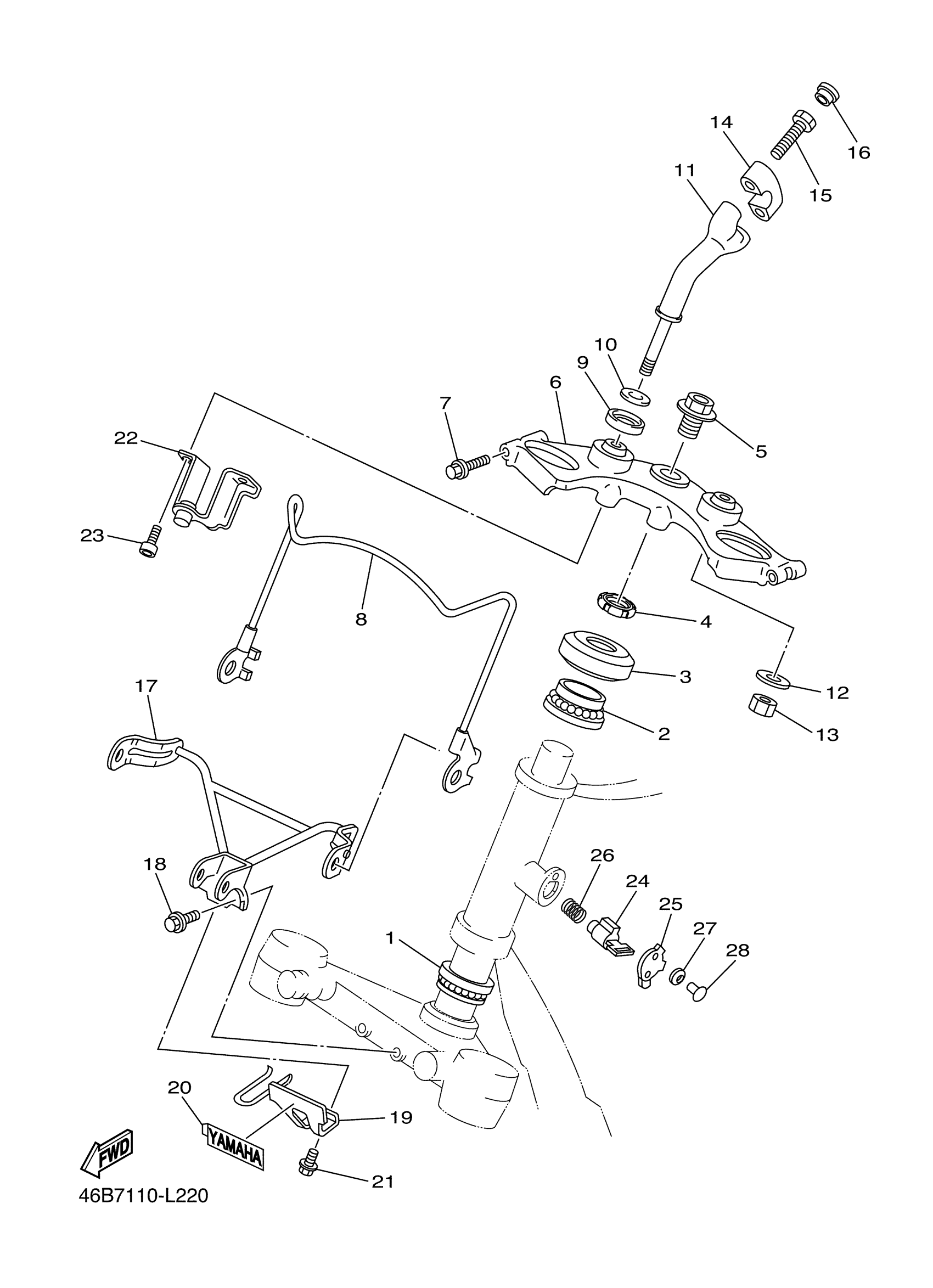

Find the part on the Steering diagram for your 2014 Yamaha V Star 250 (XV250EW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha V Star 250 (XV250EW) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4HC)

93399-99942-00

1
Out of stock

2

BEARING

93399-99950-00

—
Out of stock

3

COVER, BALL RACE 1

4HF-23415-00-00

—
Out of stock

4

NUT

90179-25004-00

1
Out of stock

5

BOLT (2A2)

90105-14102-00

1
Out of stock

6

CROWN, HANDLE

2UJ-W2341-00-33

—
Out of stock

7

BOLT, FLANGE(4KG)

95024-08040-00

1
Out of stock

8

STAY, LIGHT GUARD

3DM-23164-00-00

—
Out of stock

9

DAMPER

3DM-23445-00-00

1
Out of stock

10

WASHER, PLATE(42X)

90201-105H3-00

1
Out of stock

11

HOLDER, HANDLE LOWER

3DM-23442-30-00

1
Out of stock

12

WASHER, PLATE (4X7)

90201-105A2-00

1
Out of stock

13

NUT, U

95617-10100-00

1
Out of stock

14

HOLDER, HANDLE UPPER

4H7-23441-01-33

—
Out of stock

15

BOLT,SOCKET

91314-08025-00

1
Out of stock

16

CAP, BOLT (371,447)

341-23469-00-00

—
Out of stock

17

STAY, HEADLIGHT

2UJ-23174-01-00

—
Out of stock

18

BOLT, FLANGE(2UJ)

95024-06016-00

—
Out of stock

19

STAY 3

2UJ-2317M-00-00

—
Out of stock

20

emblem yamaha

3WF-2153E-41-00

—
Out of stock

21

BOLT, FLANGE(2UJ)

95024-06012-00

—
Out of stock

22

STAY

2UJ-2317E-00-00

—
Out of stock

23

BOLT,SOCKET

91317-06016-00

—
Out of stock

24

STEERING LOCK ASSY

2A6-23408-00-00

—
Out of stock

25

CAP, HANDLE LOCK

3DM-23484-00-00

—
Out of stock

26

SPRING, CONICAL (1E6)

90502-09024-00

—
Out of stock

27

WASHER, CONICAL SPRING (3J3)

90208-04029-00

—
Out of stock

28

RIVET 214234830000

90269-04003-00

—
Out of stock
