2014 Yamaha V Star 250 (XV250EW) Intake Diagram

← All diagrams

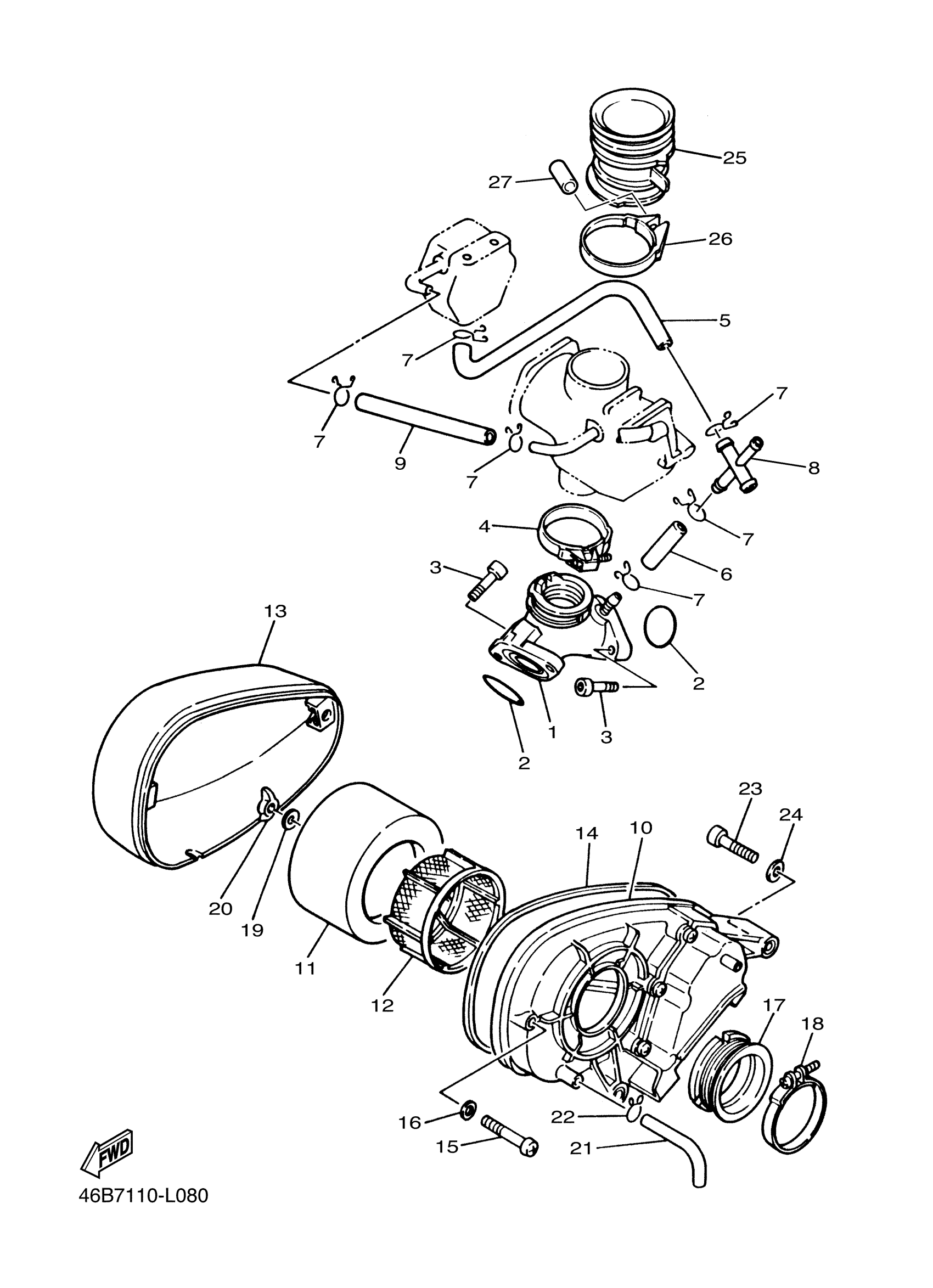

Find the part on the Intake diagram for your 2014 Yamaha V Star 250 (XV250EW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha V Star 250 (XV250EW) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

2UJ-13586-00-00

1

$137.01

In stock

2

O-RING (30X)

93210-30611-00

1

$10.82

In stock

3

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

4

BAND

4TR-13474-02-00

1

$9.52

In stock

5

PIPE, REGULATOR

2UJ-13978-00-00

1

$10.71

In stock

6

HOSE (L120)

90445-113E8-00

1

$3.82

In stock

7

CLIP

90467-100A1-00

1
Out of stock

8

JOINT

3BG-13595-00-00

—

$47.88

In stock

9

HOSE

90445-11061-00

—

$16.00

In stock

10

AIR CLEANER CASE ASSY

2UJ-14401-00-00

1

$66.09

In stock

11

ELEMENT, AIR CLEANER

2UJ-14451-01-00

1

$24.32

In stock

12

GUIDE

2UJ-14458-00-00

—
Out of stock

13

CAP, CLEANER CASE 2

2UJ-14422-00-00

—

$129.54

In stock

14

SEAL

51Y-14462-00-00

1

$11.61

In stock

15

SCREW, PAN

98507-06040-00

1

$2.25

In stock

16

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

17

PIPE, JOINT

2UJ-14485-00-00

—

$20.80

In stock

18

CLAMP, HOSE (1L9)

90460-54111-00

—

$9.89

In stock

19

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

20

NUT, WING 8147721700

90175-05005-00

—

$2.48

In stock

21

PIPE

2UJ-14419-00-00

—

$22.22

In stock

22

CLIP(1JH)

90467-11106-00

—
Out of stock

23

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

24

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

25

FUNNEL, AIR

2UJ-14469-00-00

—

$31.61

In stock

26

HOSE CLAMP ASSY

90450-54008-00

—
Out of stock

27

CAP,1

3HT-84385-00-00

—

$6.38

In stock
