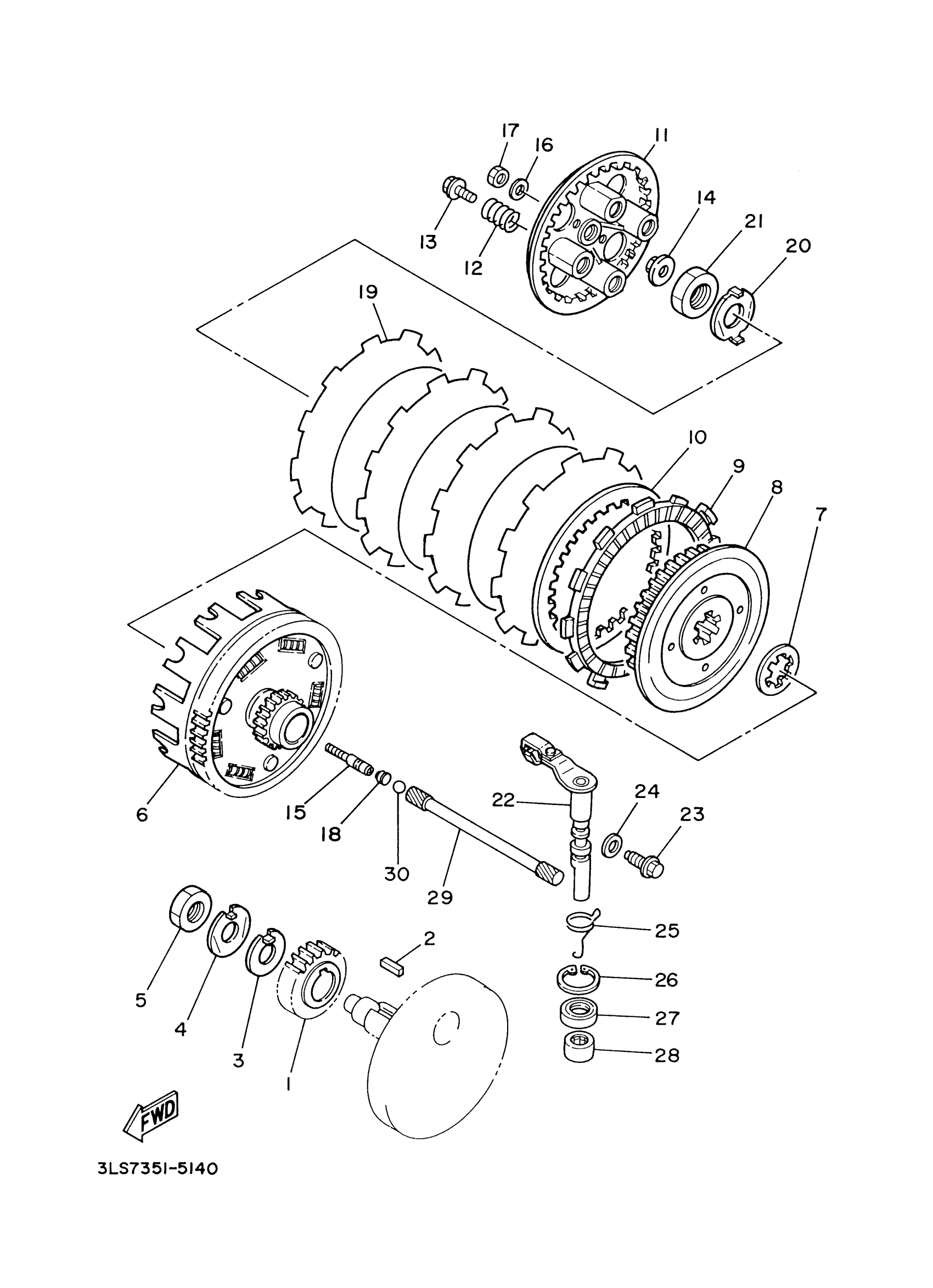

Yamaha XV250EW (V STAR 250) 46BB0 2014 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

3Y6-16111-03-00

Unavailable

2

KEY, STRAIGHT (584)

90282-07023-00

$7.77

3

WASHER, LOCK (3Y1)

90215-16156-00

$5.69

4

WASHER, LOCK (30X)

90215-16222-00

$7.52

5

NUT(24V)

90170-16343-00

$13.02

6

PRIMARY DRIVEN GEAR COMP.

2UJ-16150-00-00

$321.53

7

PLATE, THRUST 1

30X-16154-00-00

$22.52

8

BOSS, CLUTCH

30X-16371-00-00

Unavailable

9

PLATE, FRICTION

5Y1-16331-01-00

$24.19

10

PLATE, CLUTCH 1

3J2-16324-10-00

$9.79

11

PLATE, PRESSURE 1

30X-16351-02-00

$73.65

12

SPRING,COMPRESSION 2561633300

90501-26148-00

$3.62

13

SCREW, WITH WASHER (1W4)

90159-06016-00

$2.61

14

PLATE, PUSH

1W1-16358-01-00

$18.72

15

ROD, PUSH 1

4DN-16356-00-00

Unavailable

16

WASHER(6TA)

92907-06200-00

Unavailable

17

NUT(6TA)

95317-06600-00

Unavailable

18

SEAL, ROD PUSH

3YX-1635A-00-00

Unavailable

19

PLATE, FRICTION

4H7-16321-02-00

Unavailable

20

WASHER, LOCK (30X)

90215-16320-00

Unavailable

21

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

22

PUSH LEVER ASSY

2UJ-16380-00-00

Unavailable

23

SCREW 425163430000

90149-08067-00

Unavailable

24

GASKET

90430-08119-00

Unavailable

25

SPRING, TORSION (3Y1)

90508-14433-00

Unavailable

26

CIRCLIP (3Y1)

93420-28055-00

Unavailable

27

OIL SEAL (3Y1)

93102-14209-00

Unavailable

28

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

Unavailable

29

ROD, PUSH 2

2UJ-16357-00-00

$16.62

30

BALL (498)

93511-32027-00

Unavailable
