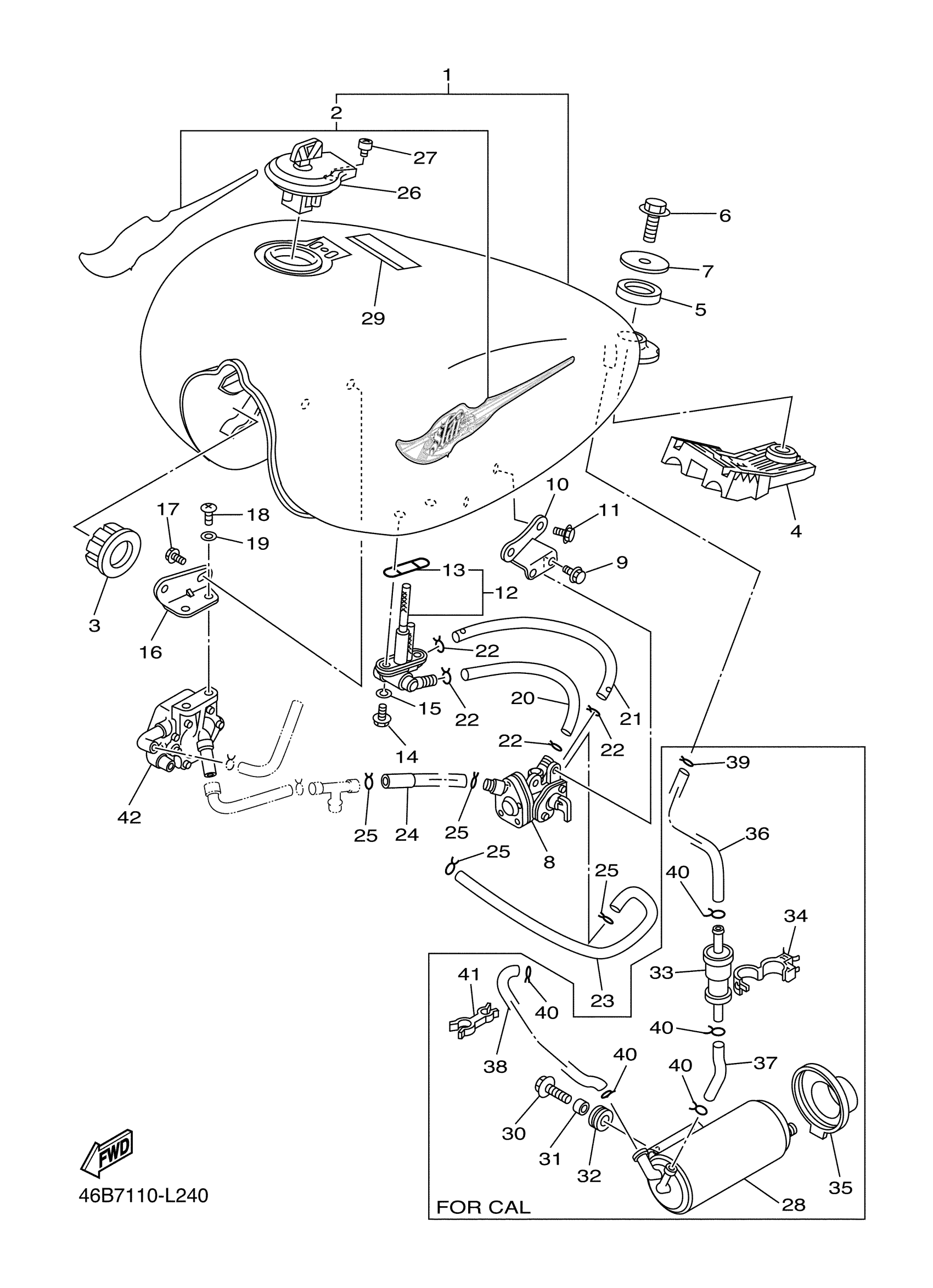

Yamaha XV250EW (V STAR 250) 46BB0 2014 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3BG-Y2410-02-X2

Unavailable

2

GRAPHIC SET

46B-24240-20-00

$111.99

3

DAMPER, LOCATING

4H7-24181-00-00

$6.99

4

DAMPER, LOCATING 2

2UJ-24182-00-00

Unavailable

5

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

6

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

7

WASHER, PLATE (521)

90201-08569-00

$7.49

8

FUEL COCK ASSY 1

2UJ-24500-10-00

$138.99

9

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

10

BRACKET, FUEL COCK

2UJ-24544-01-00

Unavailable

11

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

12

FILTER ASSY

2UJ-24560-10-00

$45.99

13

O-RING

4X8-24512-10-00

$14.49

14

SCREW 256241430000

90149-06011-00

$5.60

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

BRACKET, FUEL PUMP

2UJ-24491-01-00

Unavailable

17

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

18

SCREW, PAN

98517-06012-00

Unavailable

19

WASHER(6TA)

92907-06600-00

Unavailable

20

HOSE

90445-11057-00

Unavailable

21

HOSE

90445-11058-00

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

PIPE 2

2UJ-24312-10-00

Unavailable

24

PIPE 3

2UJ-24313-00-00

Unavailable

25

CLIP

90467-100A1-00

Unavailable

26

CAP ASSY

20K-24602-10-00

Unavailable

27

BOLT, SOCKET

91317-05010-00

Unavailable

28

CANISTER ASSY

3BG-24170-00-00

Unavailable

29

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

30

BOLT, WITH WASHER(81H)

90119-06118-00

Unavailable

31

COLLAR(4DN)

90387-0600V-00

Unavailable

32

GROMMET (16R)

90480-14329-00

Unavailable

33

ROLL OVER VALVE ASSY

5PX-24180-00-00

Unavailable

34

CLAMP(4HM)

90464-15192-00

Unavailable

35

COVER, CANISTER

2JU-2419E-00-00

Unavailable

36

PIPE 10

3BG-24321-10-00

Unavailable

37

PIPE 11

3BG-24322-10-00

Unavailable

38

PIPE 12

3BG-24323-10-00

Unavailable

39

CLIP

90467-090A2-00

Unavailable

40

CLIP

90467-100A1-00

Unavailable

41

CLAMP(3BG)

90464-16119-00

Unavailable

42

FUEL PUMP ASSY

3DM-13910-01-00

Unavailable
