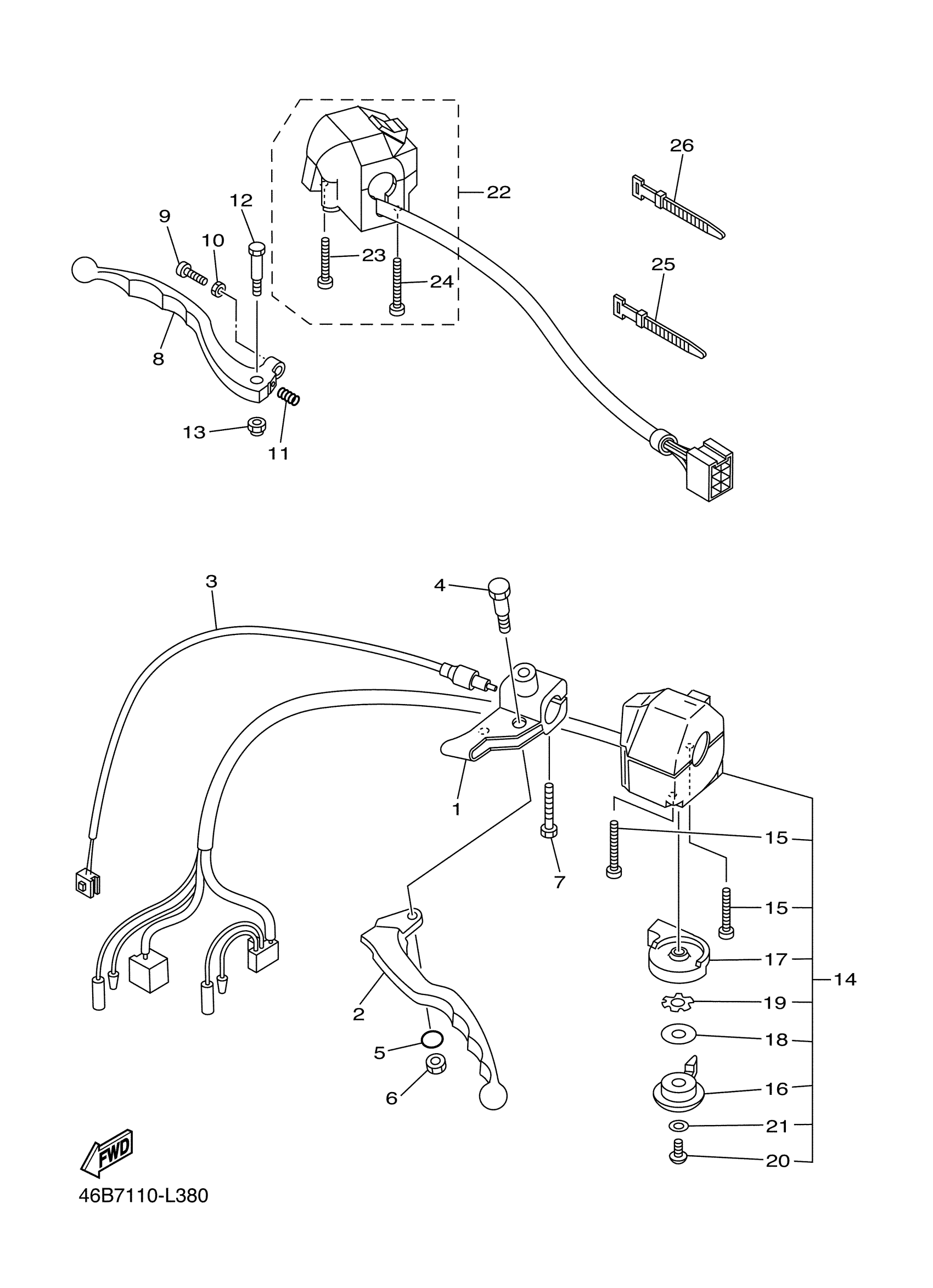

Yamaha XV250DC (V STAR 250 CA) 3BGN 2013 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

11H-82911-00-00

Unavailable

2

LEVER 1

2GV-83912-00-00

$22.89

3

SWITCH

2UJ-82917-00-00

$50.65

4

BOLT(1FG)

90109-06798-00

$5.84

5

O-RING (2H7)

93210-11368-00

$4.48

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

SCREW, LEVER FITTING

5LP-83925-10-00

$4.12

8

LEVER, (R.H)

2W1-83922-00-00

$25.44

9

SCREW, BINDING

90154-06028-00

$5.17

10

NUT

90170-06020-00

$5.11

11

SPRING COMPRESSION306839240000

90501-10312-00

$5.75

12

BOLT

90109-06255-00

$1.58

13

NUT, SELF-LOCKING

95617-06100-00

$2.17

14

SWITCH, HANDLE 3

46B-83973-00-00

Unavailable

15

SCREW, PAN

98507-05035-00

$6.23

16

LEVER, STARTER

10M-83941-00-00

Unavailable

17

COVER, STARTER

4VH-83942-00-00

Unavailable

18

SPACER

1AA-8397X-00-00

Unavailable

19

WASHER (357)

90209-10131-00

Unavailable

20

SCREW, PAN

98517-06008-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

SWITCH, HANDLE 2

46B-83975-00-00

Unavailable

23

SCREW, PAN

98507-05040-00

Unavailable

24

SCREW, PAN

98507-05045-00

Unavailable

25

BAND, SWITCH CORD

437-83936-01-00

Unavailable

26

BAND, SWITCH CORD

437-83936-11-00

Unavailable
