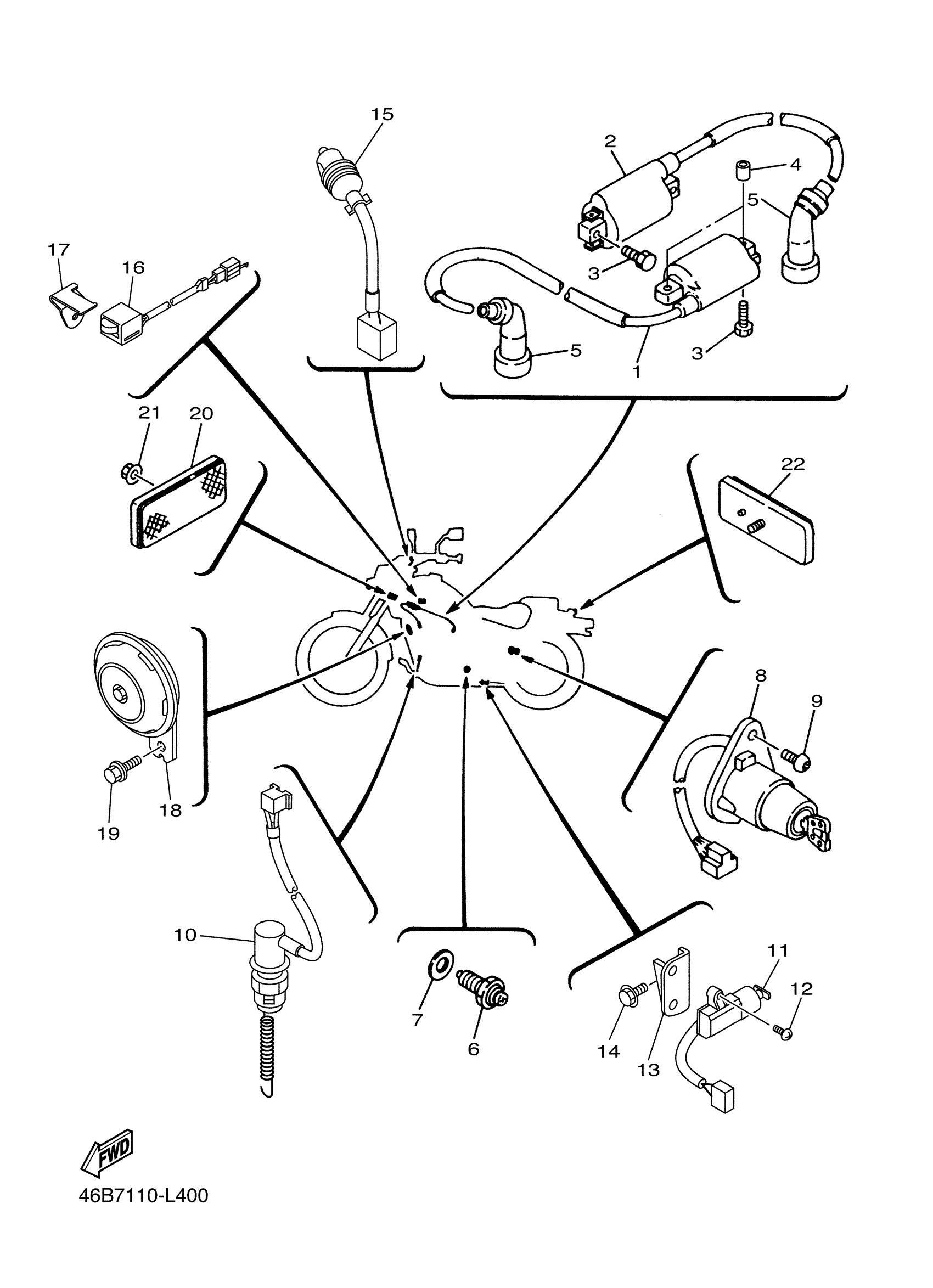

Yamaha XV250DC (V STAR 250 CA) 3BGN 2013 ELECTRICAL 2 Diagram

IGNITION COIL ASSY

4DN-82320-01-00

$111.99

IGNITION COIL ASSY

4DN-82320-01-00

$111.99

BOLT(3JK)

97027-05020-00

$3.29

HOSE (L200)

90445-07176-00

$7.60

PLUG CAP ASSY

3NS-82370-00-00

$37.99

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (1KH,1.0T)

90430-10148-00

$5.60

MAIN SWITCH ASSY

46B-82510-00-00

$219.99

SCREW(1KT)

90149-06228-00

$9.49

STOP SWITCH ASSY

5PW-82530-01-00

Unavailable

SWITCH, SIDE STAND

3LD-82566-61-00

$51.99

SCREW, PAN HEAD

98507-05014-00

$8.49

PANEL, SWITCH

2UJ-82565-00-00

Unavailable

BOLT, FLANGE

95817-06010-00

$4.73

FRONT STOP SWITCH ASSY

19D-83980-10-00

Unavailable

THERMO SWITCH ASSY

5FU-82560-40-00

Unavailable

PANEL, SWITCH

3BG-82571-00-00

Unavailable

HORN

1HX-83371-11-00

Unavailable

BOLT, FLANGE

95817-06010-00

$4.73

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable
