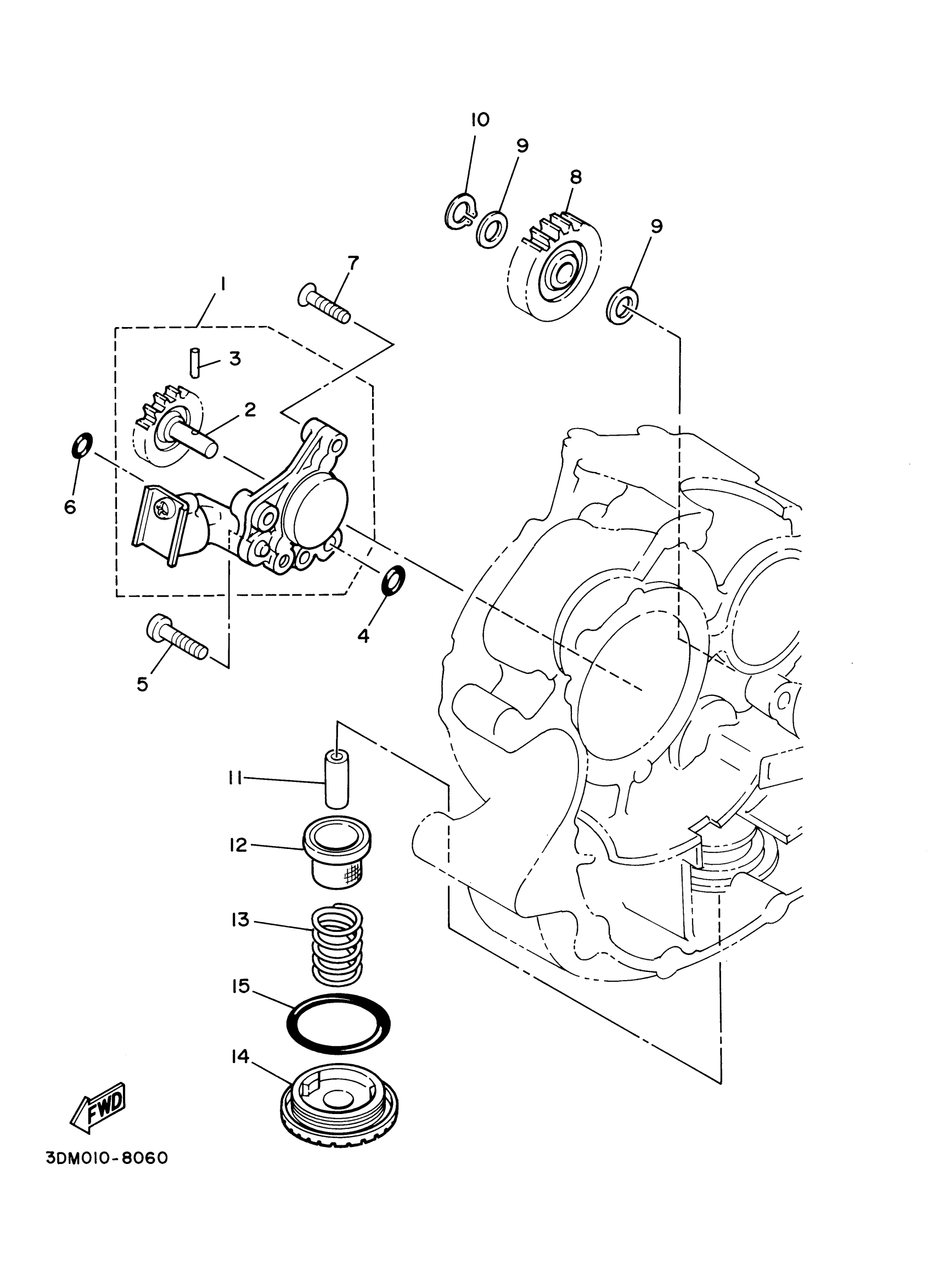

Yamaha XV250BCB (V STAR 250C CA) 3BGM 2012 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

2UJ-13300-10-00

Unavailable

2

GEAR, PUMP DRIVEN 2

3Y6-13326-10-00

$9.74

3

PIN,DOWEL (137)

93603-12030-00

$1.85

4

O-RING (611)

93210-10096-00

$2.90

5

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

6

O-RING (371)

93210-06245-00

$4.05

7

SCREW, FLAT

98707-06025-00

$5.76

8

GEAR, OIL PUMP IDLE

2UJ-13341-00-00

$32.52

9

WASHER, PLAIN(735)

90201-10119-00

Unavailable

10

CIRCLIP(10W)

99009-10400-00

$3.65

11

PIPE, OIL 1

2XK-13416-00-00

$6.17

12

STRAINER, OIL

51Y-13411-00-00

$29.77

13

SPRING, COMPRESSION (3Y1)

90501-18576-00

$5.75

14

PLUG, DRAIN

4HC-15351-00-00

$15.20

15

O-RING

93210-347A1-00

$5.34
