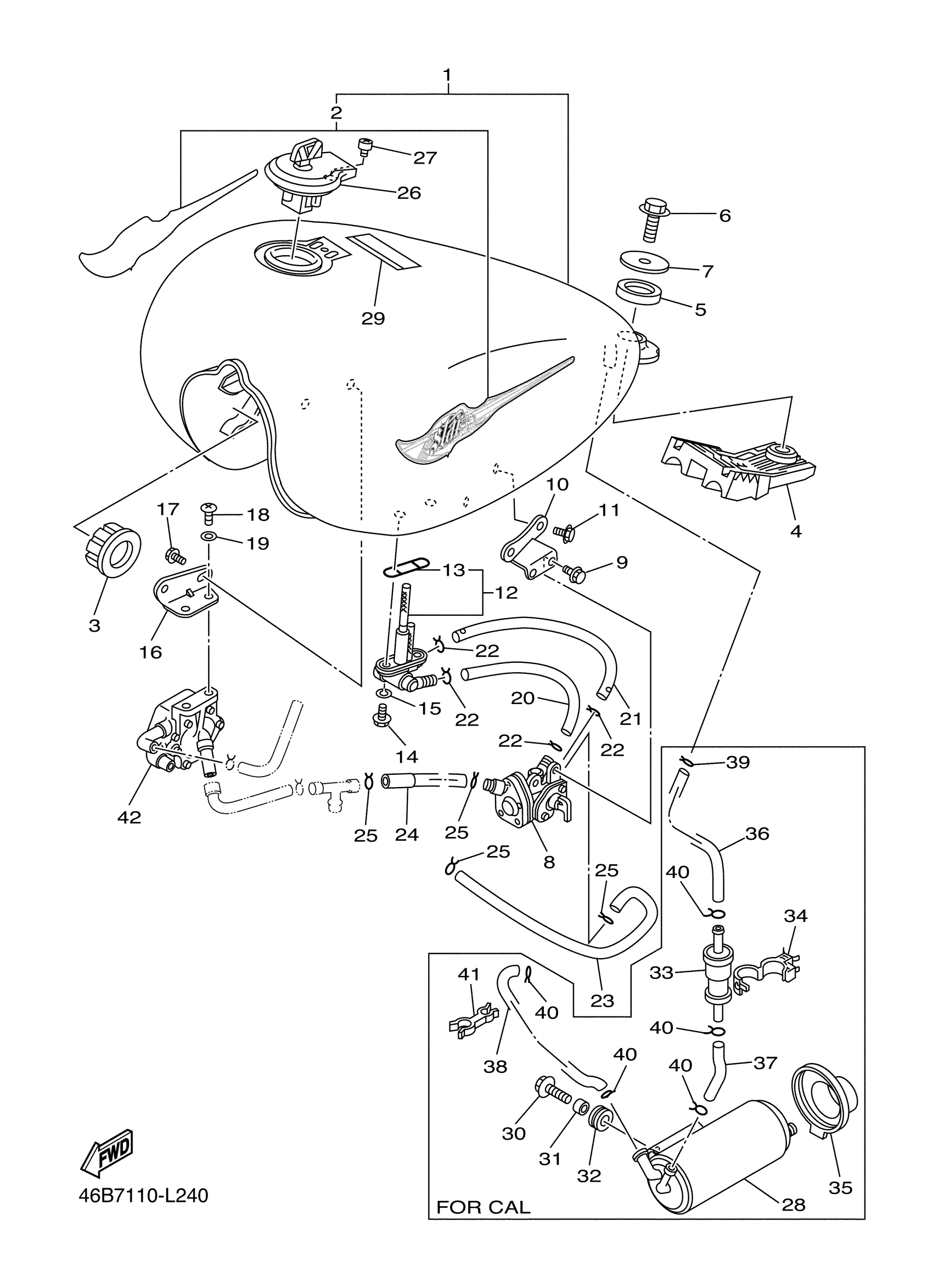

Yamaha XV250BCB (V STAR 250C CA) 3BGM 2012 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3LS-Y2410-T3-X5

Unavailable

2

. GRAPHIC SET

46B-24240-00-00

Unavailable

3

DAMPER, LOCATING

4H7-24181-00-00

$6.99

4

DAMPER, LOCATING 2

2UJ-24182-00-00

Unavailable

5

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

6

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

7

WASHER, PLATE (521)

90201-08569-00

$7.49

8

FUEL COCK ASSY 1

2UJ-24500-10-00

$138.99

9

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

10

BRACKET, FUEL COCK

2UJ-24544-01-00

Unavailable

11

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

12

FILTER ASSY

2UJ-24560-10-00

$45.99

13

O-RING

4X8-24512-10-00

$14.49

14

SCREW 256241430000

90149-06011-00

$5.60

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

BRACKET, FUEL PUMP

2UJ-24491-01-00

Unavailable

17

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

18

SCREW, PAN

98517-06012-00

Unavailable

19

WASHER(6TA)

92907-06600-00

Unavailable

20

HOSE

90445-11057-00

Unavailable

21

HOSE

90445-11058-00

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

PIPE 2

2UJ-24312-10-00

Unavailable

24

PIPE 3

2UJ-24313-00-00

Unavailable

25

CLIP

90467-100A1-00

Unavailable

26

CAP ASSY

4X7-24602-10-00

Unavailable

27

BOLT, SOCKET

91317-05010-00

Unavailable

29

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

42

FUEL PUMP ASSY

3DM-13910-01-00

Unavailable
