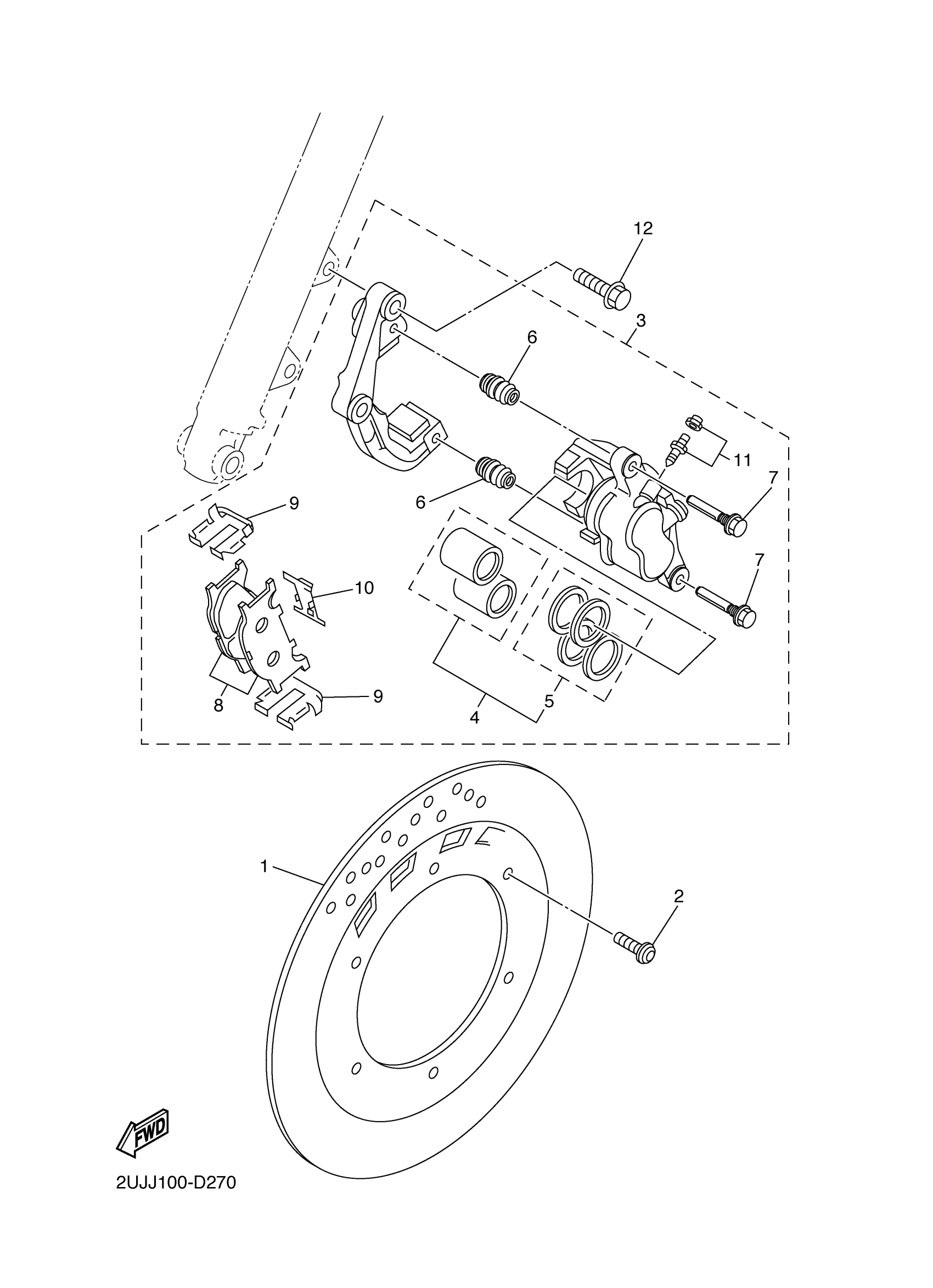

Yamaha XV250BCB (V STAR 250C CA) 3BGM 2012 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

3LP-2582T-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$8.49

3

CALIPER ASSY (LEFT)

3BG-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

5KS-25802-00-00

$69.99

5

CALIPER SEAL KIT

4HC-25803-50-00

$61.99

6

BOOT 2

4TT-25937-00-00

$16.49

7

PIN, SLIDE

5JW-25914-10-00

$22.99

8

BRAKE PAD KIT

4HM-W0045-00-00

$51.99

9

SUPPORT, PAD

4BP-25919-00-00

$44.99

10

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

11

BLEED SCREW KIT

15B-W0048-00-00

$19.99

12

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
