1990 Yamaha Route 66 CA (XV250AC) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1990 Yamaha Route 66 CA (XV250AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

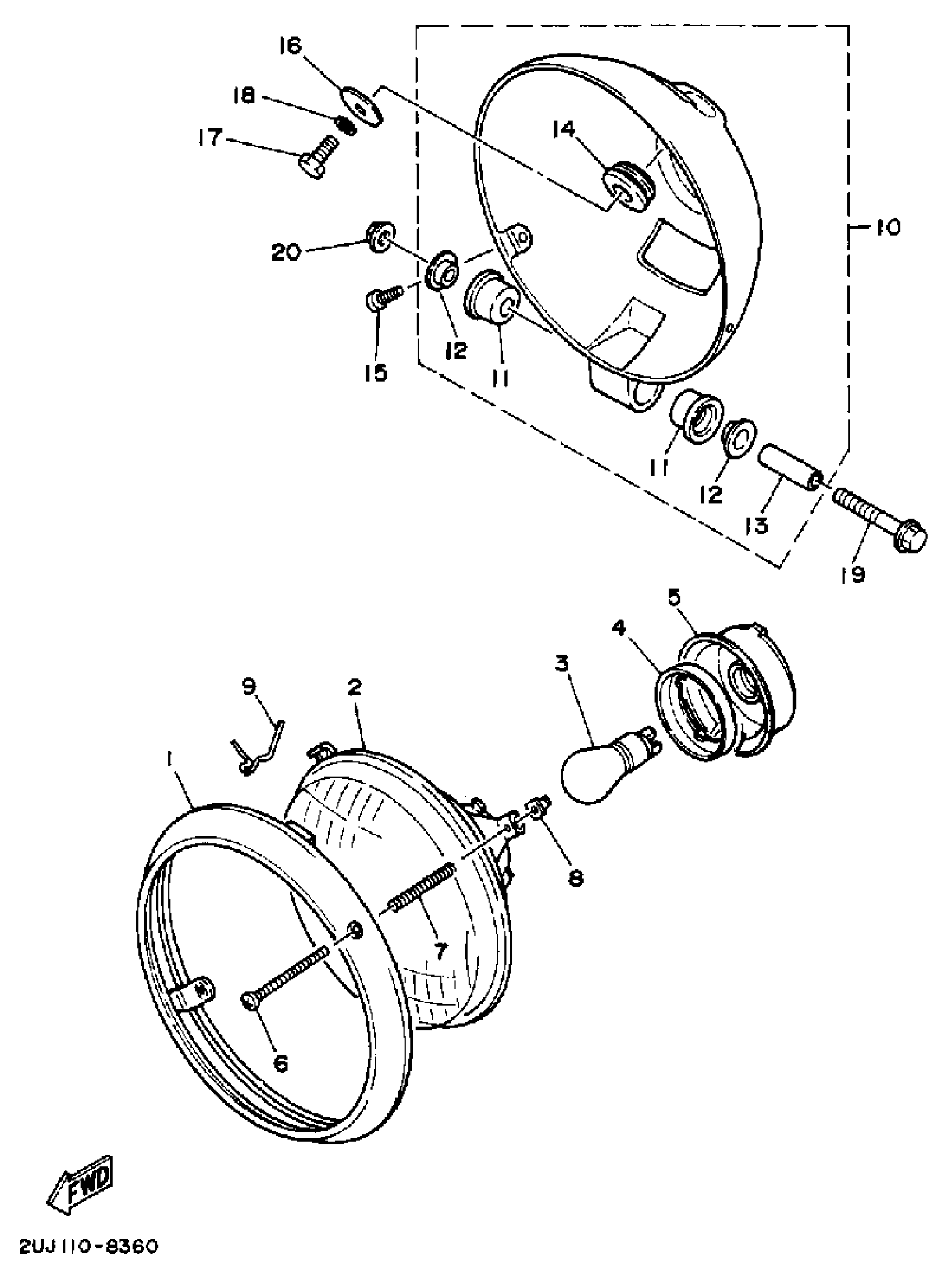

1990 Yamaha Route 66 CA (XV250AC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RIM, HEADLIGHT

42X-84315-01-00

1

$113.35

In stock

2

LENS ASSEMBLY

2GV-84321-A0-00

1
Out of stock

3

BULB, HEADLIGHT

46B-84314-00-00

—
Out of stock

4

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

5

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

6

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

7

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1

$9.22

In stock

8

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

9

SPRING, SET

42X-84124-60-00

1

$6.43

In stock

10

BODY ASSY

42X-84330-01-00

1

$207.40

In stock

11

DAMPER, HEADLIGHT

42X-84345-00-00

1

$4.98

In stock

12

COLLAR, BODY FITTING

1FK-84338-00-00

1

$2.92

In stock

13

COLLAR, BODY FTNG

(2UJ-84338-00-00)

1
Out of stock

14

DAMPER, HEADLIGHT 1

42X-84366-00-00

1

$18.66

In stock

15

SCREW, PAN HEAD(1AA)

90157-05084-00

1

$3.49

In stock

16

WASHER, PLATE

90201-06086-00

—
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

BOLT, FLANGE

95817-06045-00

—

$6.18

In stock

20

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock
