1990 Yamaha Route 66 CA (XV250AC) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1990 Yamaha Route 66 CA (XV250AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

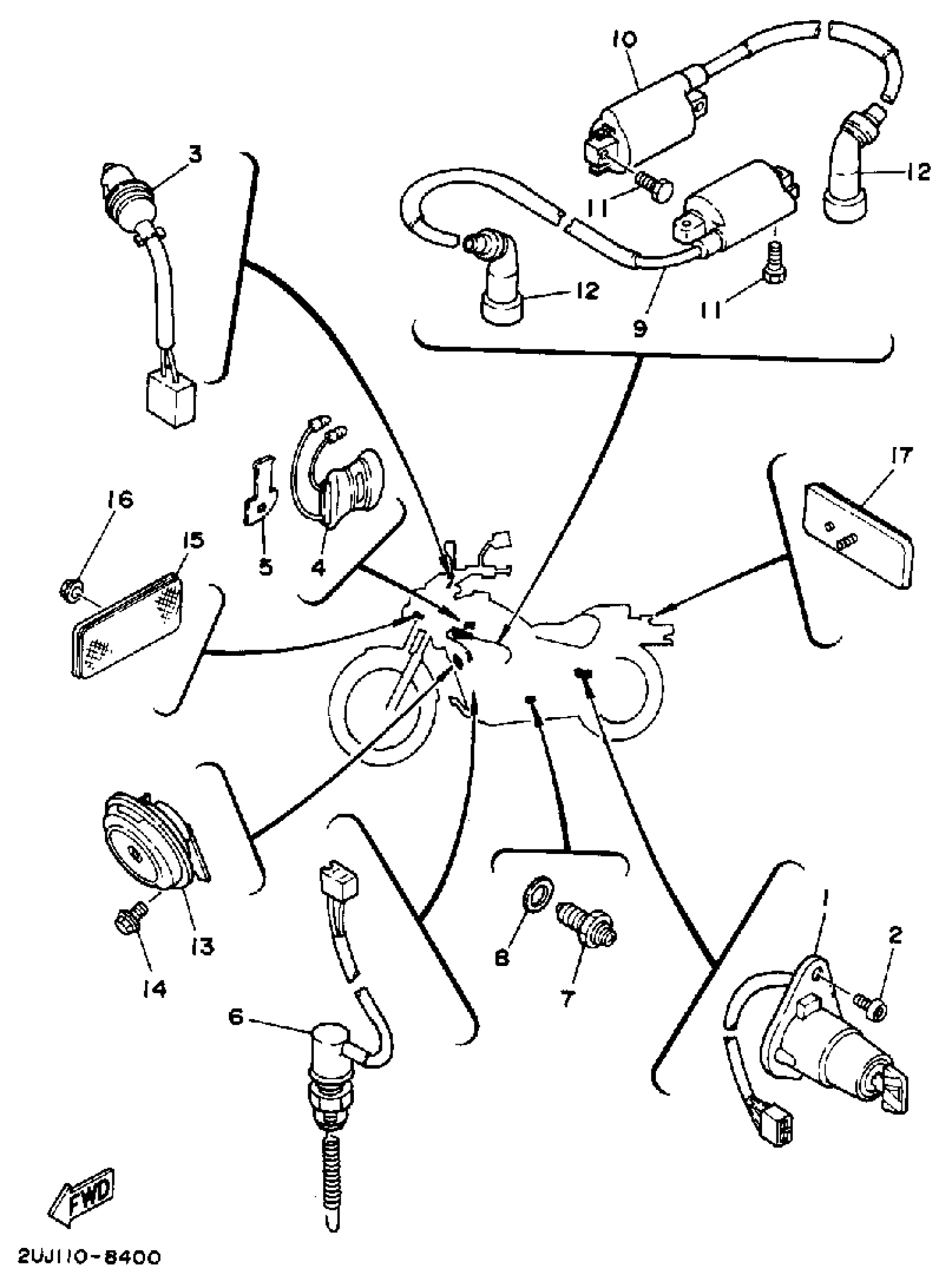

1990 Yamaha Route 66 CA (XV250AC) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN SWITCH ASSY

2UJ-82510-00-00

—
Out of stock

2

SCREW(1KT)

90149-06228-00

1

$6.29

In stock

3

FRONT STOP SWITCH ASSY

2UJ-83980-00-00

1

$38.44

In stock

4

THERMO SWITCH ASSY

3BT-82560-00-00

—
Out of stock

5

PANEL, SWITCH

3BG-82571-00-00

—

$4.51

In stock

5

PANEL, SWITCH

(3DM-82571-00-00)

1
Out of stock

6

STOP SWITCH ASSY

3XV-82530-01-00

1
Out of stock

7

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

8

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

9

IGNITION COIL ASSY

4DN-82320-01-00

1

$97.02

In stock

10

IGNITION COIL ASSY

4DN-82320-01-00

1

$97.02

In stock

11

BOLT(3JK)

97027-05020-00

1

$2.48

In stock

12

PLUG CAP ASSY

3NS-82370-00-00

1

$31.58

In stock

13

HORN

4LR-83371-11-00

1

$45.46

In stock

14

BOLT, FLANGE

95817-06010-00

1

$3.91

In stock

15

FRONT REFLECTOR ASSY

11H-85110-01-00

—

$20.92

In stock

16

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock

17

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock
