1990 Yamaha Route 66 CA (XV250AC) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1990 Yamaha Route 66 CA (XV250AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

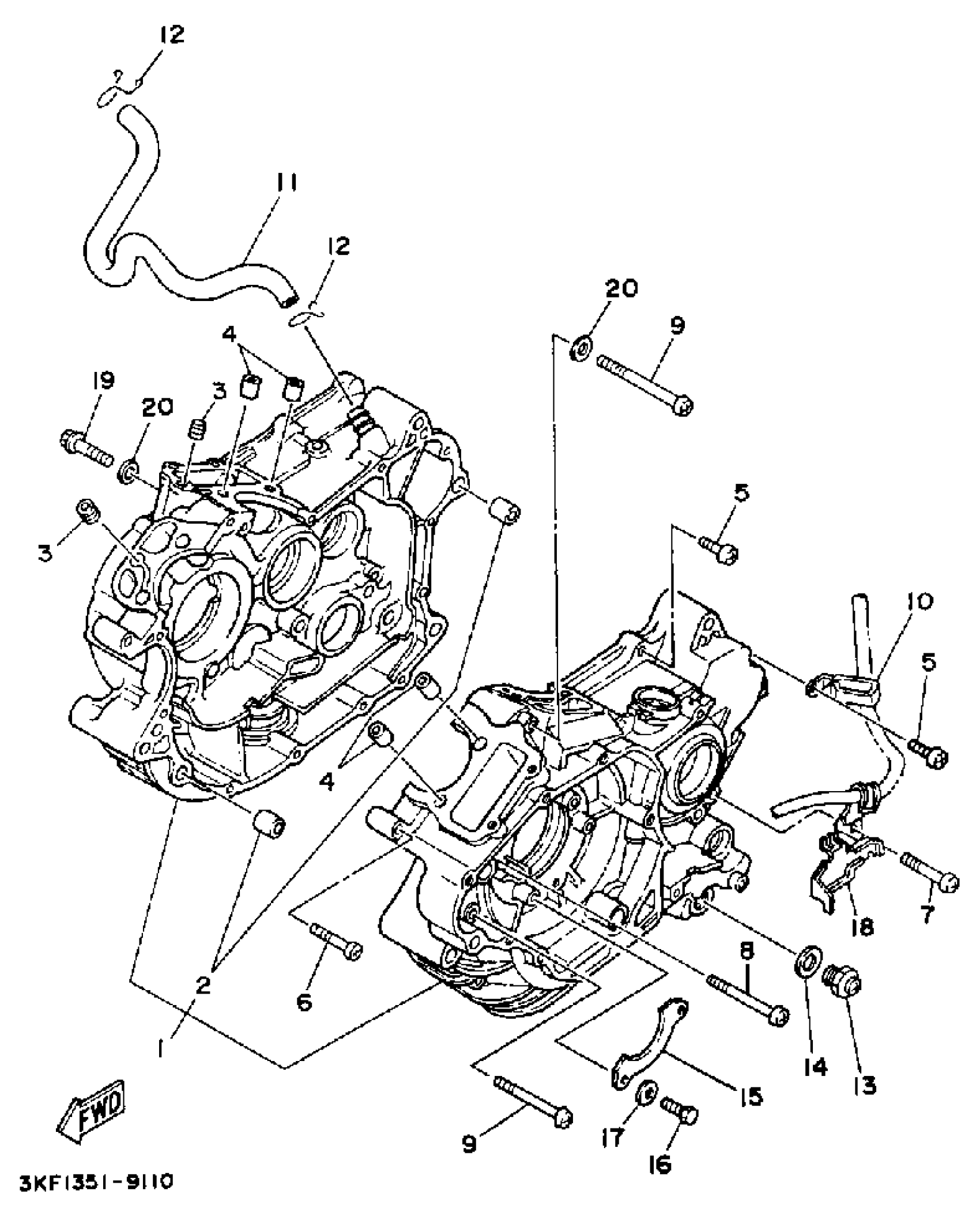

1990 Yamaha Route 66 CA (XV250AC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

2UJ-15100-01-00

—

$349.11

In stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

NOZZLE 1

2UJ-15138-00-00

—

$3.91

In stock

4

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

5

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

6

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

7

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

8

SCREW PAN HEAD

98580-06570-00

1

$17.32

In stock

9

SCREW, PAN HEAD

98580-06580-00

1
Out of stock

10

CLAMP(51Y)

90465-08277-00

—
Out of stock

11

PIPE, BREATHER 1

(2UJ-11166-00-00)

1
Out of stock

12

CLIP (371)

90467-14015-00

1

$7.51

In stock

13

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

1

$2.65

In stock

14

GASKET

214-11198-01-00

1

$2.66

In stock

15

PLATE

(2UJ-12279-00-00)

1
Out of stock

16

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

CLAMP

90465-08060-00

—

$10.66

In stock

19

SCREW

90153-06029-00

—

$8.06

In stock

20

GASKET 256113960000

90430-06014-00

—

$7.23

In stock
