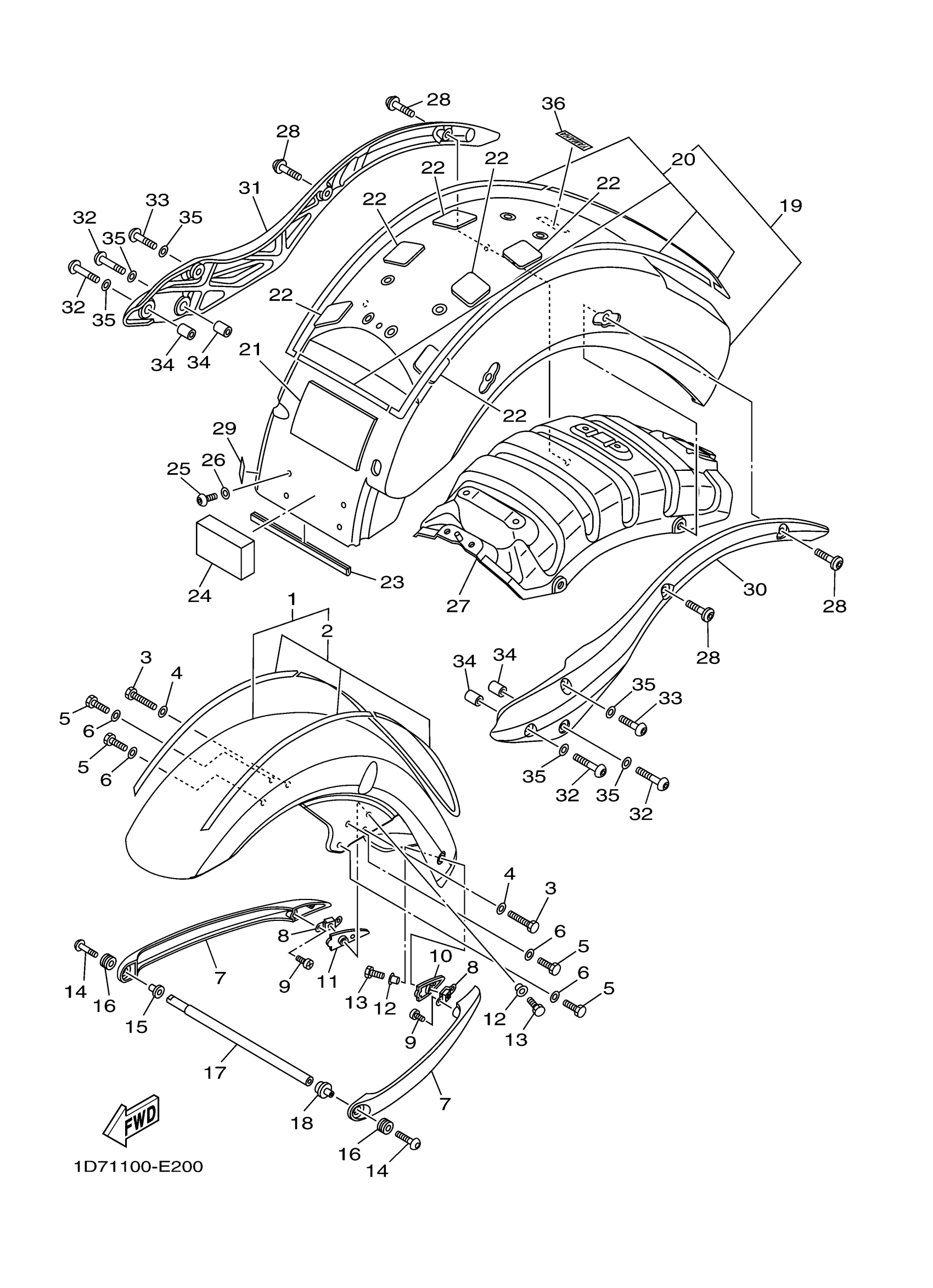

Yamaha XV19VC (ROADLINER CA) 4D42 2006 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY
1D7-Y2151-21-P0
Unavailable
2
. GRAPHIC SET, FRONT FENDER
1D7-21570-20-00
Unavailable
11
DAMPER 2
1D7-21542-00-00
Unavailable
16
GROMMET (16R)
90480-14329-00
Unavailable
17
COLLAR 1
1D7-21544-00-00
Unavailable
18
PLATE 3
1D7-21545-00-00
Unavailable
19
REAR FENDER COMP. (VERY DARK RED METALLIC 2)
1D7-Y2161-20-P0
Unavailable
20
.. GRAPHIC SET, REAR FENDER
1D7-2165A-20-00
Unavailable
21
DAMPER, LOCATING 2
5PX-21779-00-00
Unavailable
22
SEAL
5PX-21669-01-00
Unavailable
23
MOLD, FUEL TANK
1D7-24188-00-00
Unavailable
24
DAMPER 2
1D7-21639-00-00
Unavailable
25
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
26
WASHER, PLATE
90201-06036-00
Unavailable
27
STAY, REAR
1D7-21643-00-00
Unavailable
28
BOLT
90111-08033-00
Unavailable
29
SEAL 1
3FY-21575-01-00
Unavailable
30
STAY, FENDER 1
1D7-21613-10-00
Unavailable
31
STAY, FENDER 2
1D7-21614-10-00
Unavailable
32
BOLT, BUTTON HEAD(3LS)
92014-10050-00
Unavailable
33
BOLT, BUTTON HEAD
92014-10040-00
Unavailable
34
PIN, DOWEL
99530-14016-00
Unavailable
35
WASHER, PLATE
90201-10081-00
Unavailable
36
EMBLEM, YAMAHA
3WF-2153E-71-00
Unavailable
