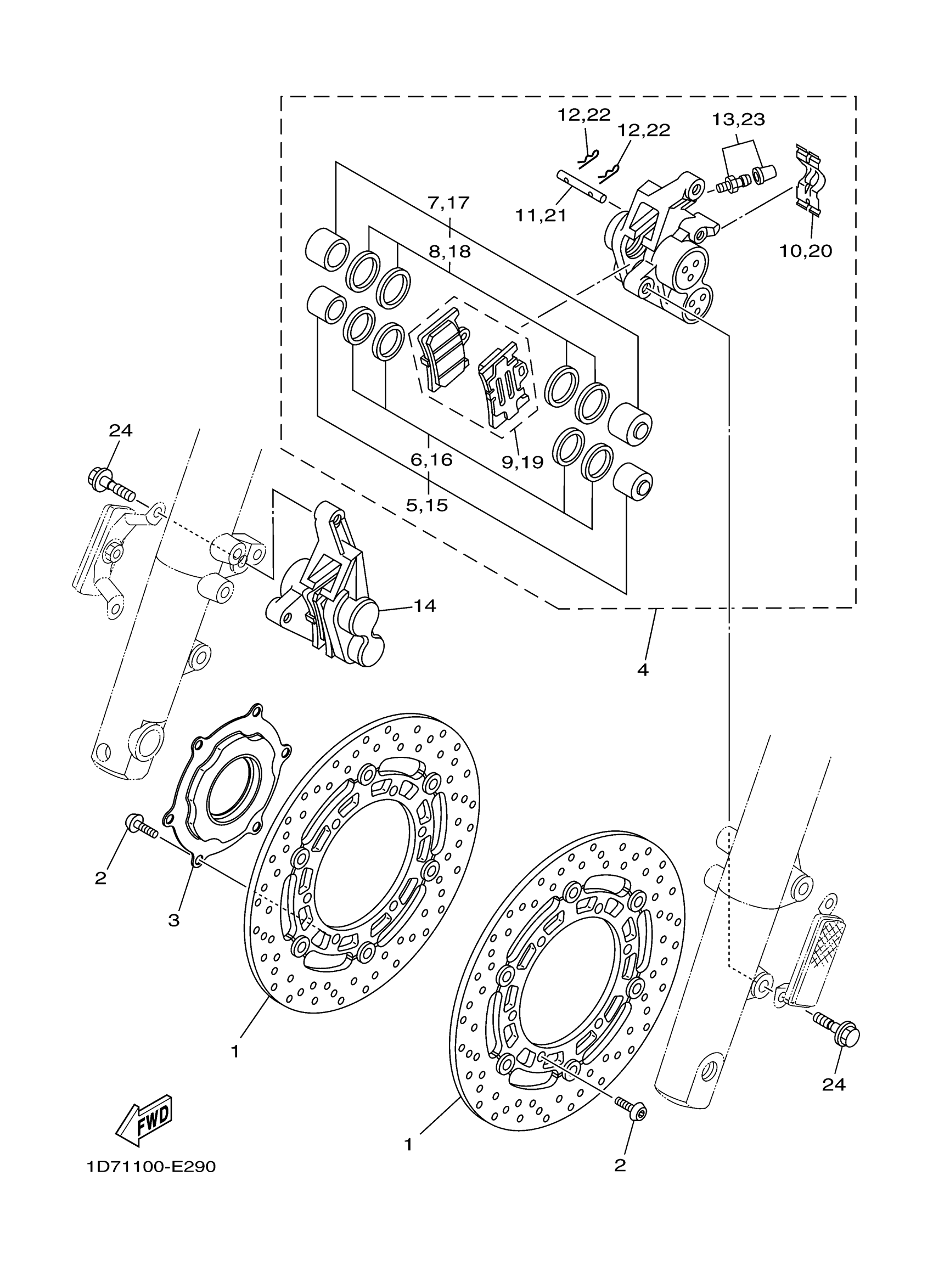

Yamaha XV19SZL (ROADLINER S) 1D7D 2010 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

1D7-2581T-00-00

Unavailable

2

SCREW

90149-08052-00

$8.49

3

RING, WHEEL 2 (RIGHT)

1D7-2515A-00-00

Unavailable

4

CALIPER ASSY (LEFT)

1D7-2580T-00-00

Unavailable

5

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

6

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

7

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

8

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

9

BRAKE PAD KIT

1D7-25805-00-00

$89.99

10

SUPPORT, PAD

4SV-25919-00-00

$35.99

11

PIN, PAD

4SV-25924-00-00

$42.99

12

CLIP, PAD PIN

3GM-25925-00-00

$11.99

13

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

14

CALIPER ASSY (RIGHT)

1D7-2580U-00-00

Unavailable

15

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

16

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

17

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

18

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

19

BRAKE PAD KIT

1D7-25805-00-00

$89.99

20

SUPPORT, PAD

4SV-25919-00-00

$35.99

21

PIN, PAD

4SV-25924-00-00

$42.99

22

CLIP, PAD PIN

3GM-25925-00-00

$11.99

23

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

24

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
