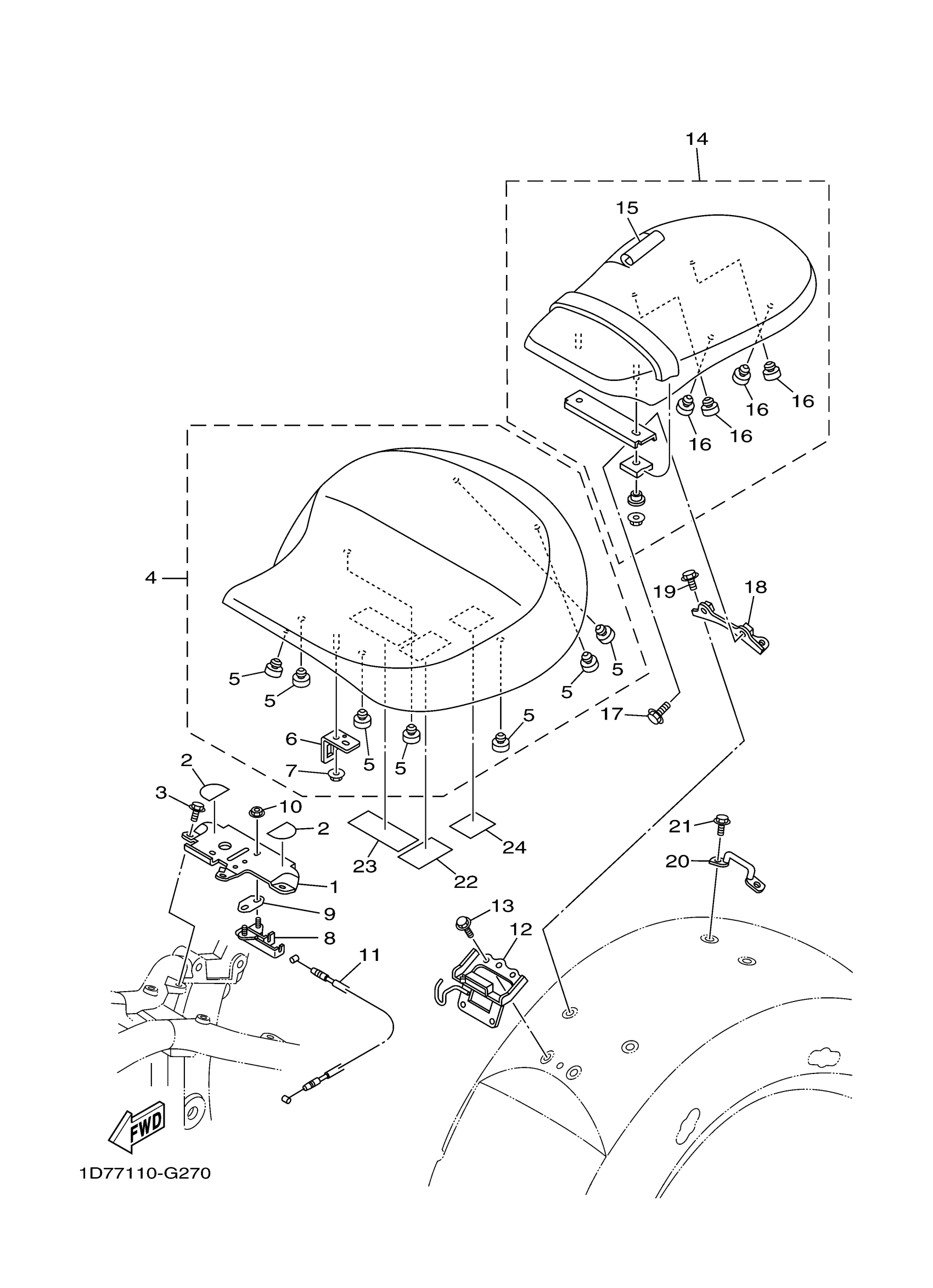

Yamaha XV19SXW (ROADLINER S) 1D770 2008 SEAT Diagram

#

Description
Price

1

BRACKET, SEAT 1

1D7-21341-00-00

$33.03

2

SEAL 2

5PX-21735-00-00

Unavailable

3

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

4

SINGLE SEAT ASSY

1D7-24710-20-00

Unavailable

5

PAD, SEAT

22W-24741-00-00

$7.20

6

BRACKET, SEAT

4NK-24728-00-00

$9.17

7

NUT, U FLANGE

95604-06200-00

$2.19

8

SEAT LOCK ASSY

4BP-24780-00-00

$90.53

9

PLATE

4BP-24792-00-00

Unavailable

10

NUT, FLANGE(4MV)

95707-06500-00

$0.73

11

CABLE, SEAT LOCK

5PX-2478E-00-00

$16.61

12

BRACKET

1D7-2475N-00-00

Unavailable

13

BOLT, FLANGE

95022-08012-00

$8.86

14

TANDEM SEAT ASSY

1D7-24750-01-00

Unavailable

15

SEAT COVER COMP. ,2

1D7-2470H-00-00

$83.80

16

PAD, SEAT

22W-24741-00-00

$7.20

17

BOLT, FLANGE

95022-08012-00

$8.86

18

BRACKET, SEAT LEVER 1

1D7-2475H-00-00

Unavailable

19

BOLT, FLANGE

95022-08012-00

$8.86

20

BRACKET 6

1D7-2475R-00-00

Unavailable

21

BOLT, FLANGE

95022-08012-00

$8.86

22

LABEL, TIRE

1D7-21668-00-00

Unavailable

23

PLATE, EPA (CALIFORNIA)

1D7-2176P-20-00

Unavailable

23

PLATE, EPA (NON CALIFORNIA)

1D7-2179W-20-00

Unavailable

24

PLATE, ROUTING 2

5PX-21686-00-00

Unavailable
