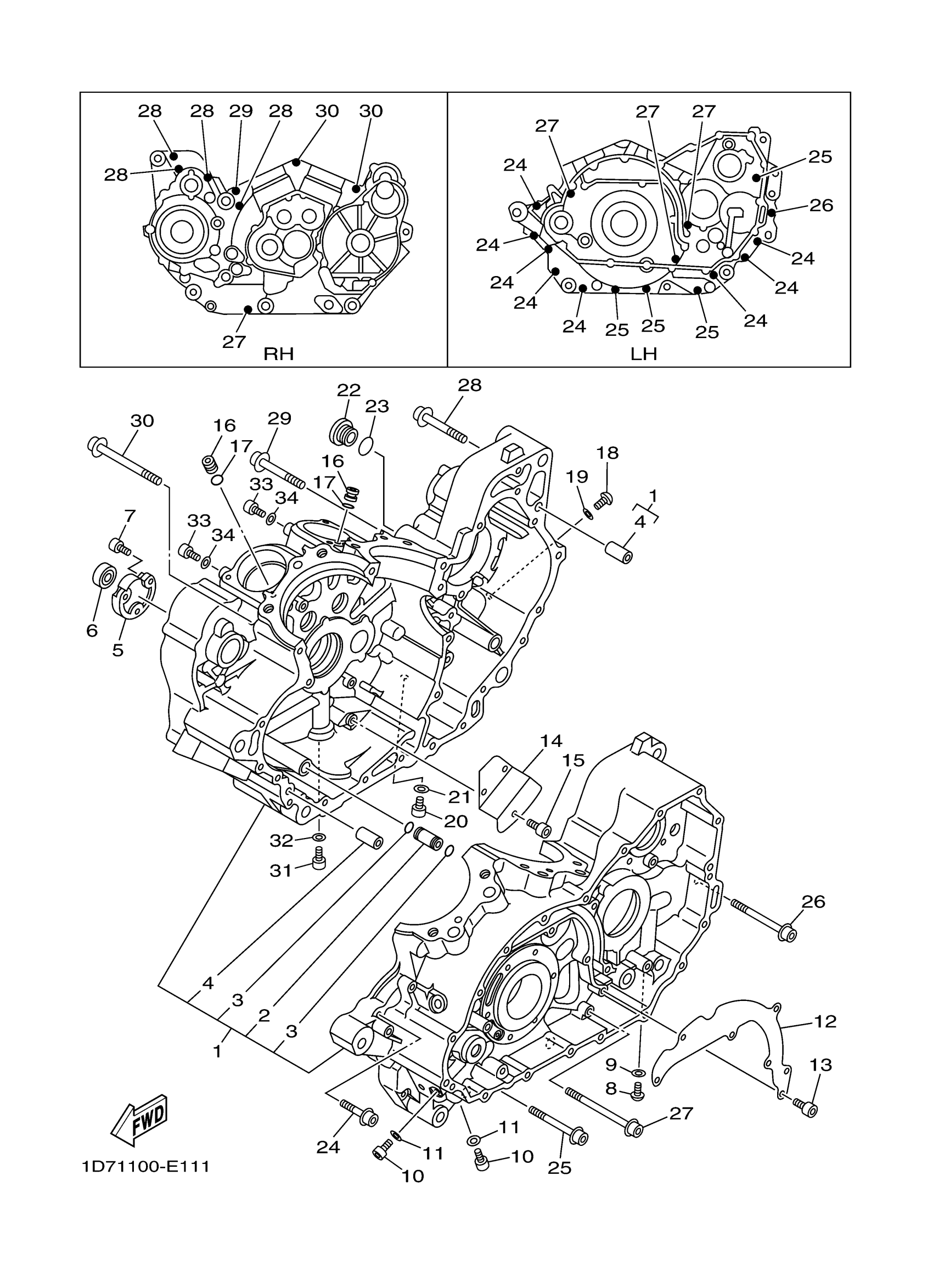

Yamaha XV19SXW (ROADLINER S) 1D770 2008 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
1D7-15100-19-00
Unavailable
1
CRANKCASE ASSY
1D7-15100-19-00
Unavailable
5
HOUSING, BEARING 1
1D7-15163-00-00
Unavailable
9
GASKET 256113960000
90430-06014-00
Unavailable
12
PLATE
1D7-15191-00-00
Unavailable
14
COVER, OIL PUMP
1D7-15412-00-00
Unavailable
15
BOLT (33M)
91312-06014-00
Unavailable
16
PLUG
1D7-15189-00-00
Unavailable
17
O-RING (11M)
93210-07540-00
Unavailable
19
GASKET 256113960000
90430-06014-00
Unavailable
22
PLUG
4H7-15189-00-00
Unavailable
23
O-RING
93210-20003-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD
90110-06300-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
90110-06094-00
Unavailable
26
BOLT, HEXAGON SOCKET HEAD
90110-06297-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD
90110-06296-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD
90110-06298-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD
90110-08072-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD
90110-08073-00
Unavailable
33
BOLT,SOCKET HEAD
91314-06010-00
Unavailable
34
GASKET 256113960000
90430-06014-00
Unavailable
