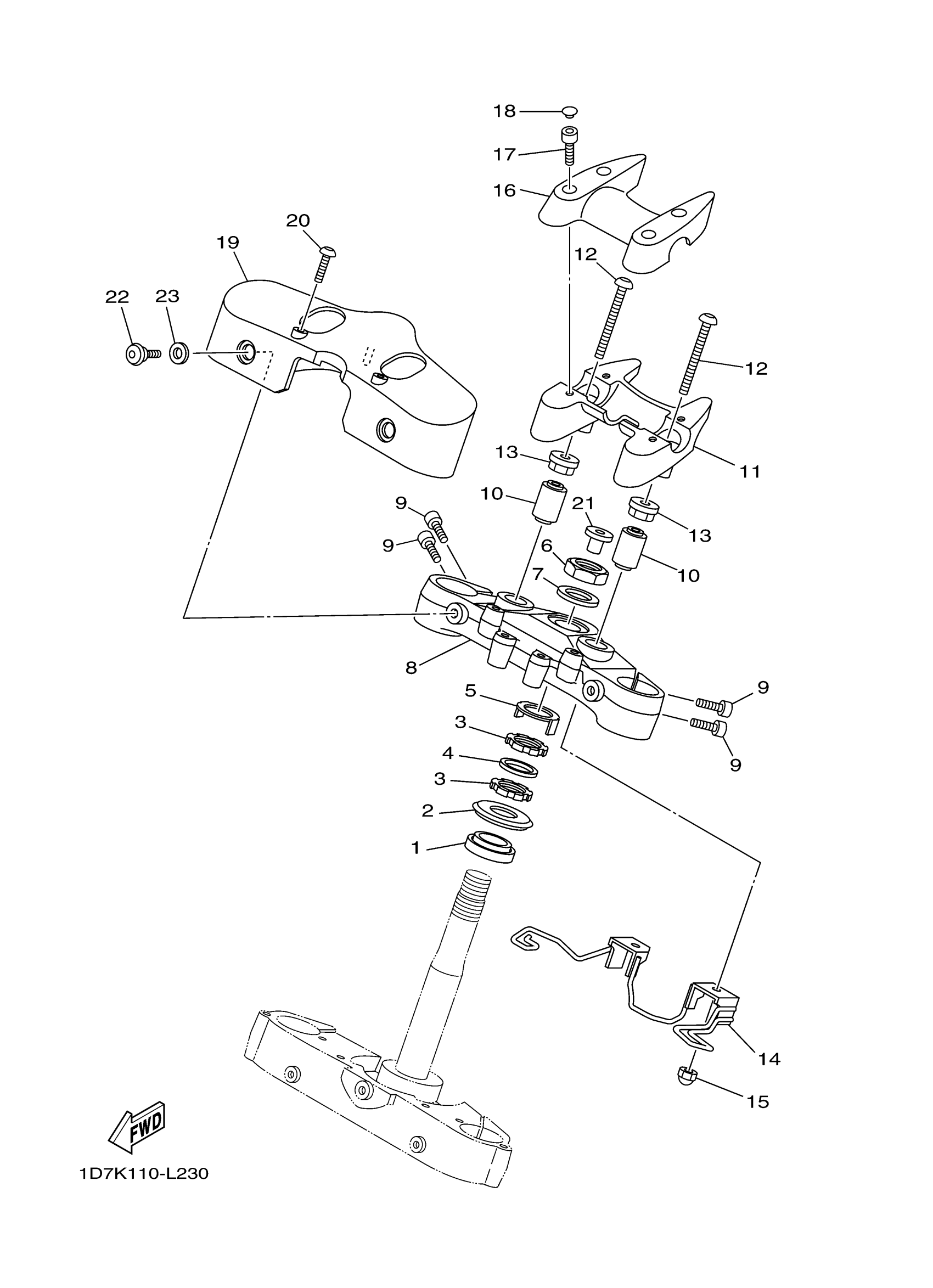

Yamaha XV19SEL (ROADLINER S) 1D7S 2014 STEERING Diagram

#

Description
Price

1

BEARING

93332-00091-00

Unavailable

2

COVER, BALL RACE 1

4XV-23415-01-00

$24.99

3

NUT

90179-30006-00

$25.99

4

WASHER, PLATE

90202-30235-00

$8.49

5

WASHER, SPECIAL

4XV-23418-00-00

$17.49

6

NUT

90170-28419-00

$40.99

7

WASHER, PLATE

90201-281U8-00

$11.49

8

CROWN, HANDLE

1D7-23435-00-00

Unavailable

9

BOLT,SOCKET

91317-06025-00

$5.60

10

HOLDER, DAMPER

5A8-23434-01-00

Unavailable

11

HOLDER, HANDLE LOWER

1D7-23442-30-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-10023-00

$11.49

13

HOLDER, HANDLE UPPER 1

1D7-2344E-00-00

Unavailable

14

GUIDE, CABLE

1D7-23389-10-00

Unavailable

15

NUT, CROWN

90176-10003-00

$9.49

16

HOLDER, HANDLE UPPER

1D7-23441-30-00

Unavailable

17

BOLT,SOCKET

91314-08030-00

Unavailable

18

PLUG(42X)

90338-08163-00

Unavailable

19

COVER, CROWN

1D7-23437-00-00

Unavailable

20

BOLT, BUTTON HEAD

92012-08030-00

Unavailable

21

GROMMET

90480-14009-00

Unavailable

22

BOLT

1D7-23471-10-00

Unavailable

23

WASHER, SPECIAL

1D7-23418-00-00

Unavailable
