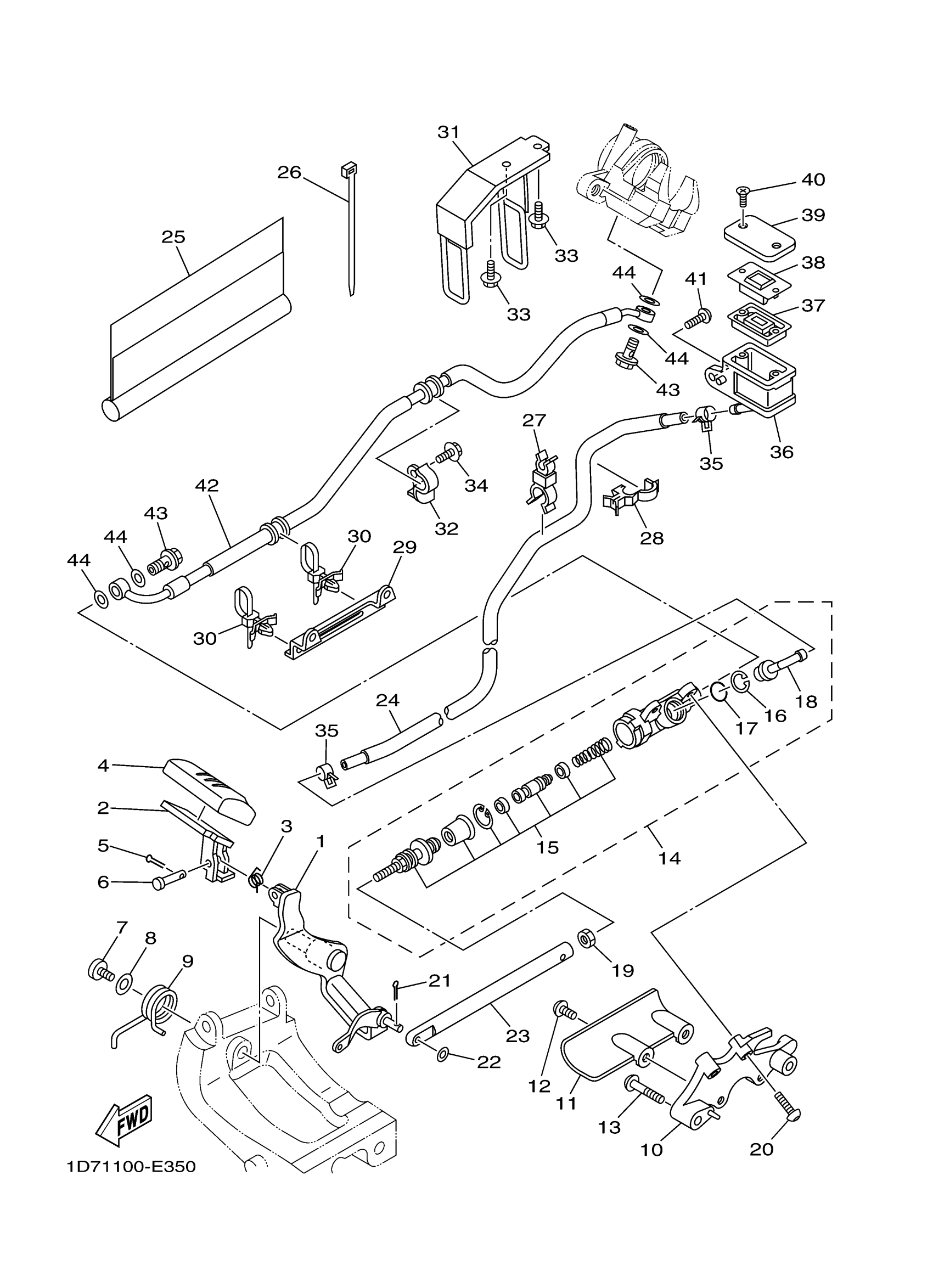

Yamaha XV19SEL (ROADLINER S) 1D7S 2014 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

1D7-27211-00-00

Unavailable

2

PEDAL, BRAKE

4NK-27242-00-00

Unavailable

3

SPRING, TORSION

90508-18023-00

$7.49

4

CAP

1D7-27285-00-00

$29.99

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

PIN, COTTER (1W2)

91701-06022-00

$2.49

7

BOLT, HEXAGON SOCKET HEAD

90110-06119-00

$5.60

8

WASHER, PLATE

90201-06033-00

$2.97

9

SPRING, SIDE STAND

1D7-27316-00-00

$7.99

10

BRACKET, MASTER CYLINDER

1D7-25867-00-00

$60.99

11

PROTECTOR

5PX-27491-00-00

Unavailable

12

BOLT, BUTTON HEAD

92014-08014-00

$8.49

13

BOLT, BUTTON HEAD(3YF)

92014-08035-00

$8.49

14

RR. MASTER CYLINDER ASSY.

1D7-2583V-00-00

$174.99

15

CYLINDER KIT, MASTER

1FK-W0042-50-00

$70.99

16

CIRCLIP

2VN-25866-00-00

Unavailable

17

O-RING (22U)

93210-15566-00

Unavailable

18

JOINT

2VN-2582A-50-00

Unavailable

19

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

20

BOLT, BUTTON HEAD(3YF)

92014-08035-00

$8.49

21

PIN, COTTER

91490-16020-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

JOINT

1D7-27222-00-00

Unavailable

24

HOSE, RESERVOIR

1D7-25895-00-00

Unavailable

25

PROTECTOR, BRAKE HOSE

1D7-25881-00-00

Unavailable

26

CLAMP

5Y9-12491-00-00

Unavailable

27

CLAMP

90464-14005-00

Unavailable

28

CLAMP(4HM)

90464-15192-00

Unavailable

29

HOLDER, FUEL PIPE

1D7-21374-00-00

Unavailable

30

CLAMP

90464-14006-00

Unavailable

31

HOLDER, BRAKE HOSE

1D7-2587A-00-00

Unavailable

32

HOLDER, BRAKE HOSE 5

1D7-2588F-00-00

Unavailable

33

BOLT, FLANGE

95022-06012-00

Unavailable

34

BOLT, FLANGE

95022-06012-00

Unavailable

35

CLIP (7K7)

90467-11044-00

Unavailable

36

TANK, RESERVOIR

5YU-25894-00-00

Unavailable

37

DIAPHRAGM, RESERVOIR

55U-25854-00-00

Unavailable

38

PLATE, DIAPHRAGM

3GM-2585B-20-00

Unavailable

39

CAP, RESERVOIR

5YU-25852-00-00

Unavailable

40

SCREW, FLAT HEAD

98706-04040-00

Unavailable

41

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

42

HOSE, BRAKE 4

1D7-2581J-01-00

Unavailable

43

BOLT, UNION

90401-10020-00

Unavailable

44

GASKET

90430-10005-00

Unavailable
