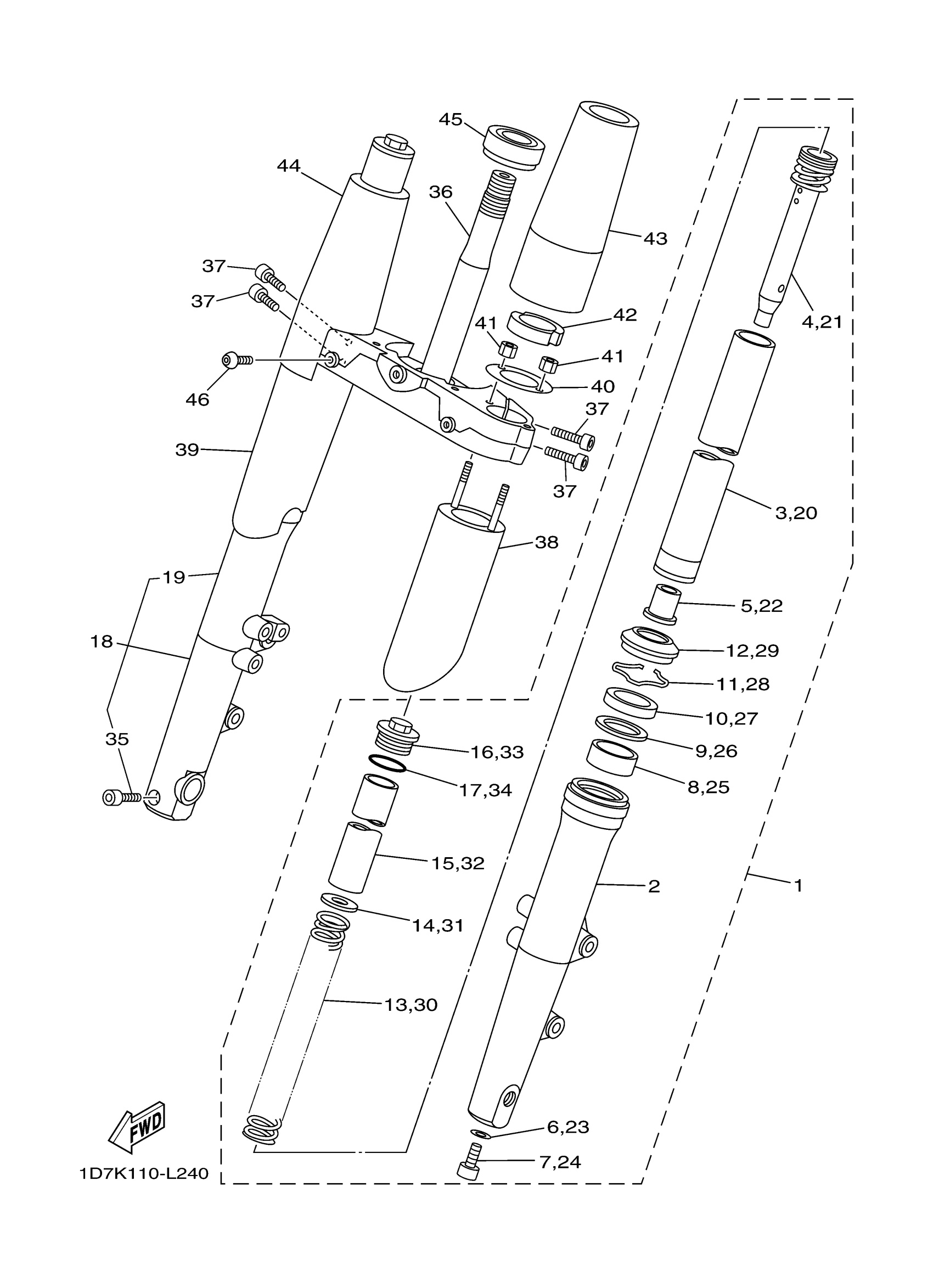

Yamaha XV19SEL (ROADLINER S) 1D7S 2014 FRONT FORK Diagram
#
2
TUBE, OUTER (LEFT)
1D7-23126-11-00
Unavailable
4
CYLINDER COMP., FRONT FORK
1D7-23170-00-00
Unavailable
5
SPINDLE, TAPER
1D7-23173-00-00
Unavailable
7
BOLT
3R4-23181-L0-00
Unavailable
13
SPRING, FRONT FORK
1D7-23141-00-00
Unavailable
15
SPACER
1D7-23118-00-00
Unavailable
16
BOLT, CAP
1D7-23111-00-00
Unavailable
17
O-RING
1D7-23188-00-00
Unavailable
18
FRONT FORK ASSY (R.H)
1D7-23103-11-00
Unavailable
19
TUBE, OUTER (RIGHT)
1D7-23136-11-00
Unavailable
21
CYLINDER COMP., FRONT FORK
1D7-23170-00-00
Unavailable
22
SPINDLE, TAPER
1D7-23173-00-00
Unavailable
24
BOLT
3R4-23181-L0-00
Unavailable
30
SPRING, FRONT FORK
1D7-23141-00-00
Unavailable
32
SPACER
1D7-23118-00-00
Unavailable
33
BOLT, CAP
1D7-23111-00-00
Unavailable
34
O-RING
1D7-23188-00-00
Unavailable
35
BOLT,SOCKET
91314-08040-00
Unavailable
36
STEERING ASSY
1D7-23400-00-00
Unavailable
37
BOLT,SOCKET
91314-08025-00
Unavailable
38
COVER, LOWER 1
1D7-23123-10-00
Unavailable
39
COVER, LOWER 2
1D7-23133-10-00
Unavailable
40
WASHER, FELT
1D7-23165-00-00
Unavailable
41
NUT
1D7-23357-00-00
Unavailable
42
GASKET
1D7-23163-00-00
Unavailable
43
COVER, UPPER 1
1D7-23121-10-00
Unavailable
44
COVER, UPPER 2
1D7-23131-10-00
Unavailable
45
BEARING
93332-00096-00
Unavailable
46
BOLT,HEX. SOCKET BUTTON
90111-08035-00
Unavailable
47
FORK SEAL KIT (TWO FORKS)
1D7-W003B-00-00
Unavailable
