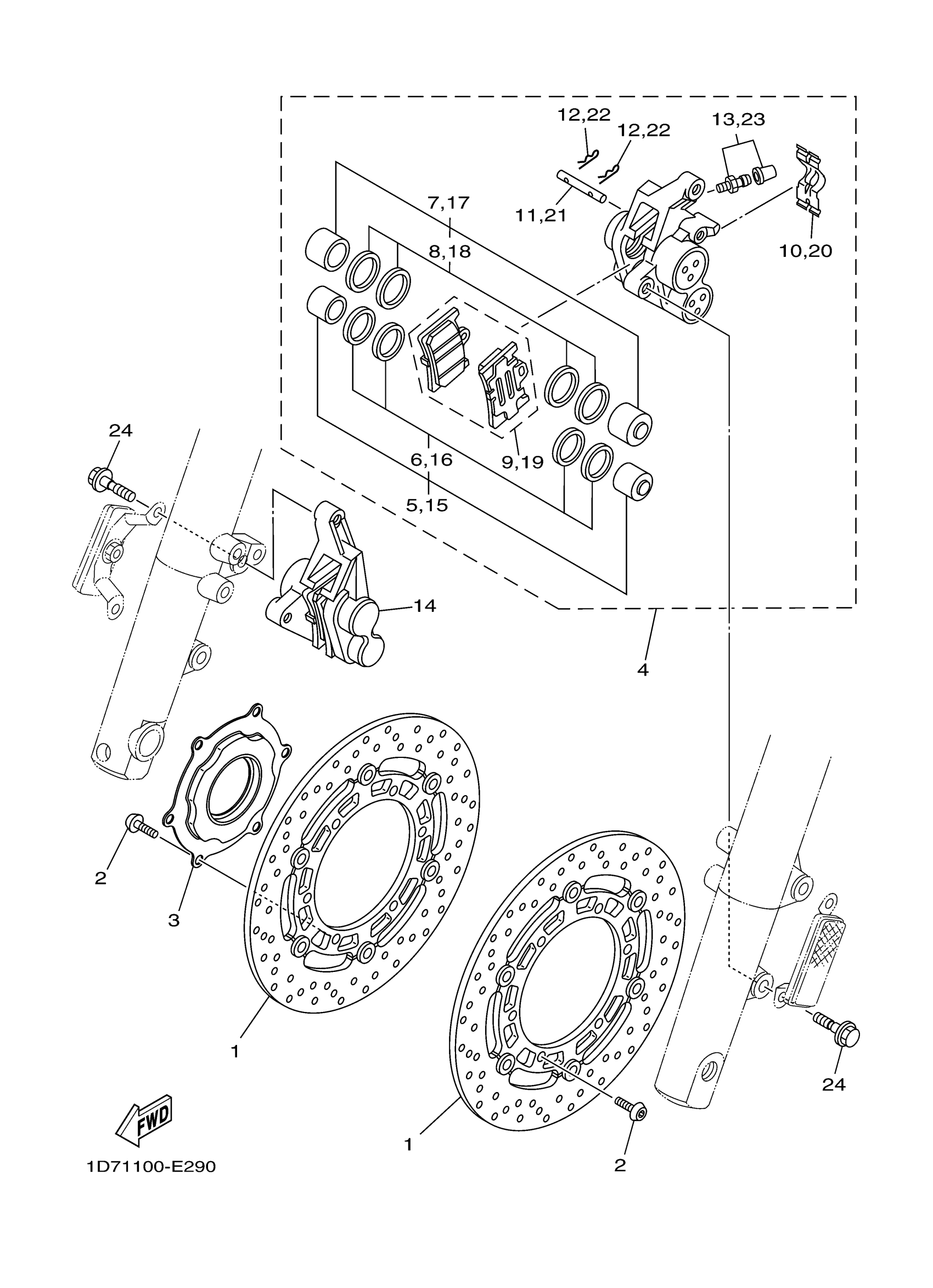

Yamaha XV19SDCB (ROADLINER S CA) 1D7P 2013 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

1D7-2581T-10-00

$201.45

2

SCREW

90149-08052-00

$5.59

3

RING, WHEEL 2 (RIGHT)

1D7-2515A-00-00

Unavailable

4

CALIPER ASSY (LEFT)

1D7-2580T-00-00

Unavailable

5

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

6

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

7

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

8

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

9

BRAKE PAD KIT

1D7-25805-00-00

Unavailable

10

SUPPORT, PAD

4SV-25919-00-00

$20.59

11

PIN, PAD

4SV-25924-00-00

$34.81

12

CLIP, PAD PIN

3GM-25925-00-00

$9.15

13

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

14

CALIPER ASSY (RIGHT)

1D7-2580U-00-00

Unavailable

15

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

16

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

17

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

18

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

19

BRAKE PAD KIT

1D7-25805-00-00

Unavailable

20

SUPPORT, PAD

4SV-25919-00-00

$20.59

21

PIN, PAD

4SV-25924-00-00

$34.81

22

CLIP, PAD PIN

3GM-25925-00-00

$9.15

23

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

24

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
