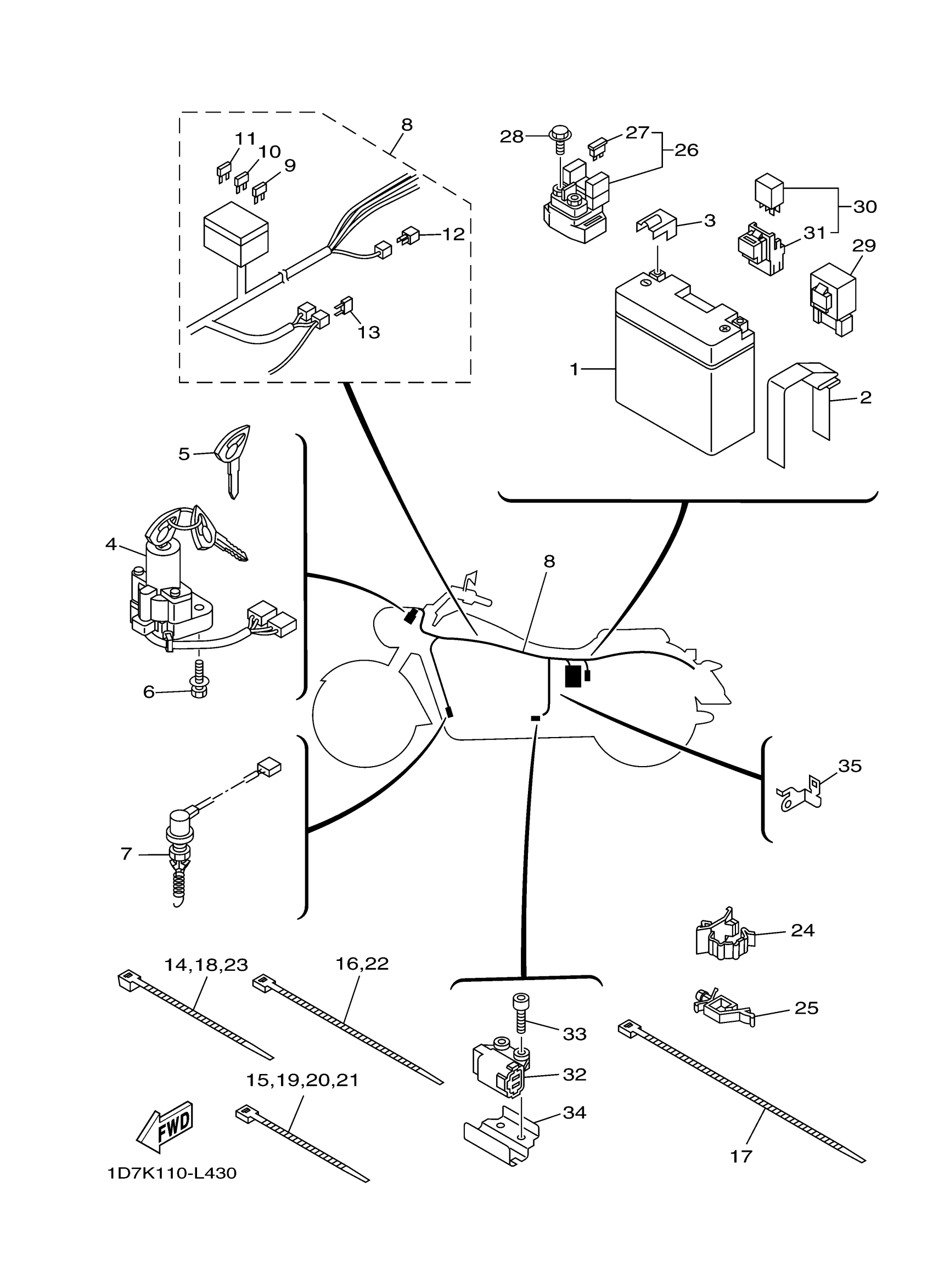

Yamaha XV19SDCB (ROADLINER S CA) 1D7P 2013 ELECTRICAL 2 Diagram

#

Description
Price

1

GT14B4 GS BATTERY - FA

GT1-4B400-00-00

Unavailable

2

BAND, BATTERY

4AS-82131-01-00

$15.49

3

COVER, LEAD WIRE

1D7-82119-00-00

Unavailable

4

MAIN SWITCH STEERING LOCK

1D7-82501-10-00

$255.99

5

BLANK KEY

5PX-82511-09-00

$73.99

6

BOLT

90109-08196-00

$8.49

7

STOP SWITCH ASSY

1D7-82530-01-00

$68.99

8

WIRE HARNESS ASSY

1D7-82590-40-00

Unavailable

9

FUSE

5JJ-82151-20-00

$7.99

10

FUSE (15A)

67F-82151-50-00

Unavailable

11

FUSE (5A)

67F-82151-20-00

Unavailable

12

DIODE ASSY

3XV-81980-00-00

Unavailable

13

FUSE (50A)

5JW-82151-10-00

$16.49

14

CLAMP

90464-55001-00

Unavailable

15

BAND

1UA-82591-00-00

$4.78

16

CLAMP

90464-80002-00

Unavailable

17

CLAMP

90464-50003-00

Unavailable

18

CLAMP

90464-55001-00

Unavailable

19

BAND

1UA-82591-00-00

$4.78

20

BAND

1UA-82591-00-00

$4.78

21

BAND

1UA-82591-00-00

$4.78

22

CLAMP

90464-80002-00

Unavailable

23

CLAMP

90464-55001-00

Unavailable

24

CLAMP

90464-20002-00

Unavailable

25

CLAMP (1J7)

90464-16021-00

Unavailable

26

STARTER RELAY ASSY (RC19-032)

5JW-81940-02-00

Unavailable

27

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

28

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

29

RELAY ASSY

5VK-81950-33-00

Unavailable

30

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

31

HOLDER,RELAY

5EA-81952-00-00

Unavailable

32

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

33

BOLT

91312-04025-00

Unavailable

34

PLATE

1D7-82388-00-00

Unavailable

35

STAY, CORD CLAMP

1D7-82581-00-00

Unavailable
