Description

Price

1

FRONT FENDER ASSY

5C7-Y2151-42-PC

Unavailable

2

BOLT, WITH WASHER

90119-08111-00

$7.49

3

BOLT, WITH WASHER

90119-08110-00

$7.49

4

REAR FENDER COMP.

5C7-Y2161-N0-2X

Unavailable

5

SEAL

5PX-21669-01-00

$11.99

6

DAMPER

5C7-21649-00-00

$7.99

7

STAY, REAR

5C7-21643-00-00

$357.99

8

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

$9.49

9

STAY, FENDER 1

5C7-21613-30-00

$464.99

10

STAY, FENDER 2

5C7-21614-30-00

Unavailable

11

BOLT, BUTTON HEAD(3LS)

92014-10050-00

$8.49

12

PIN, DOWEL

99530-14016-00

$3.80

13

GUARD, MUD

5C7-21629-00-00

Unavailable

14

NUT, U FLANGE

95604-06200-00

$8.49

15

RIVET(4PH)

90269-07077-00

$8.49

16

DAMPER 2

5C7-21639-00-00

Unavailable

17

BRACKET, REAR STAY

5C7-21688-00-00

Unavailable

18

GROMMET

90480-01015-00

Unavailable

19

CLAMP

90464-13077-00

Unavailable

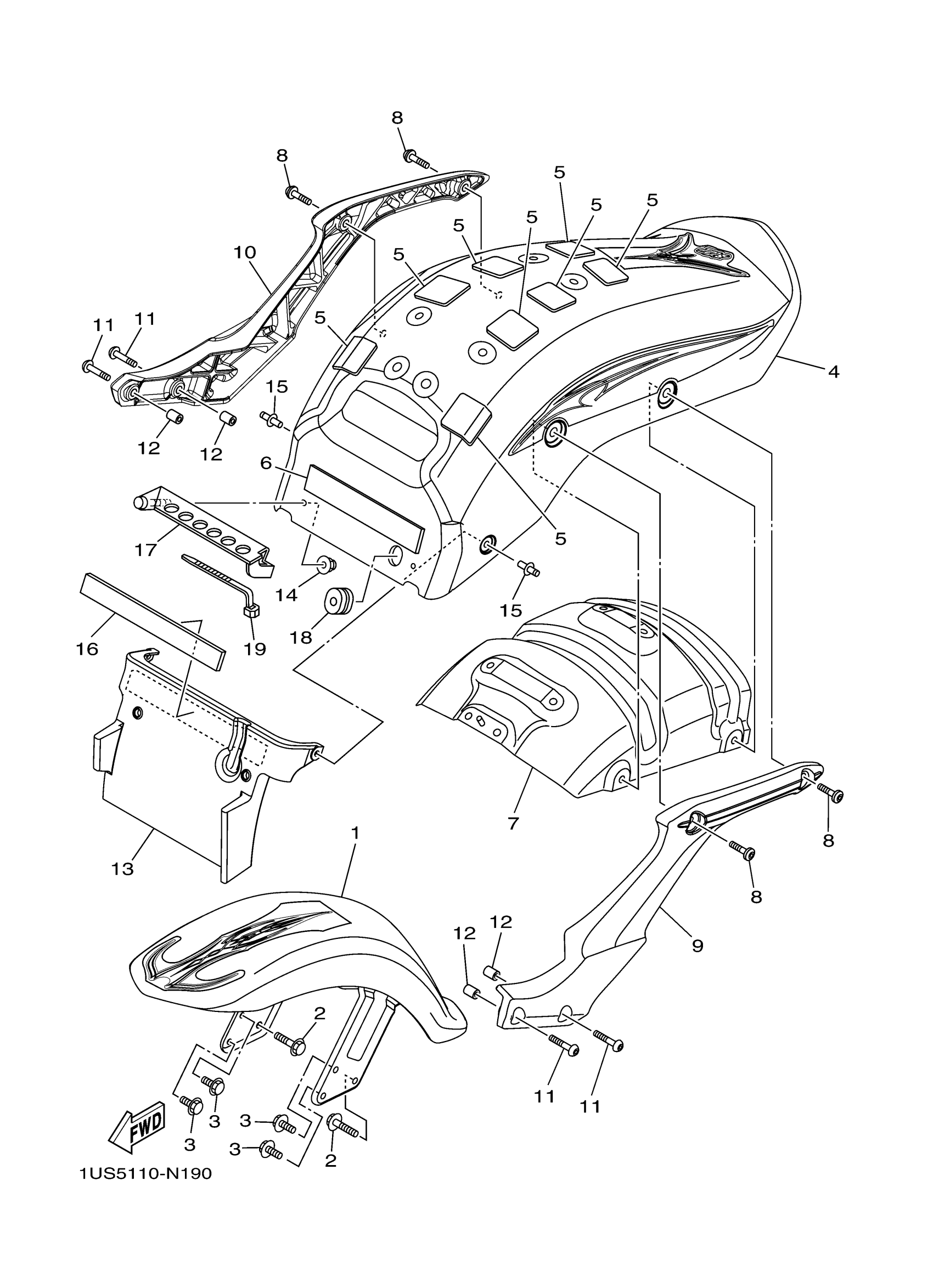

Yamaha XV19SCLEC (RAIDER SCL CA) 1US6 2014 FENDER Diagram

FRONT FENDER ASSY

BOLT, WITH WASHER

BOLT, WITH WASHER

REAR FENDER COMP.

SEAL

DAMPER

STAY, REAR

BOLT, HEXAGON SOCKET HEAD(38V)

STAY, FENDER 1

STAY, FENDER 2

BOLT, BUTTON HEAD(3LS)

PIN, DOWEL

GUARD, MUD

NUT, U FLANGE

RIVET(4PH)

DAMPER 2

BRACKET, REAR STAY

GROMMET

CLAMP
