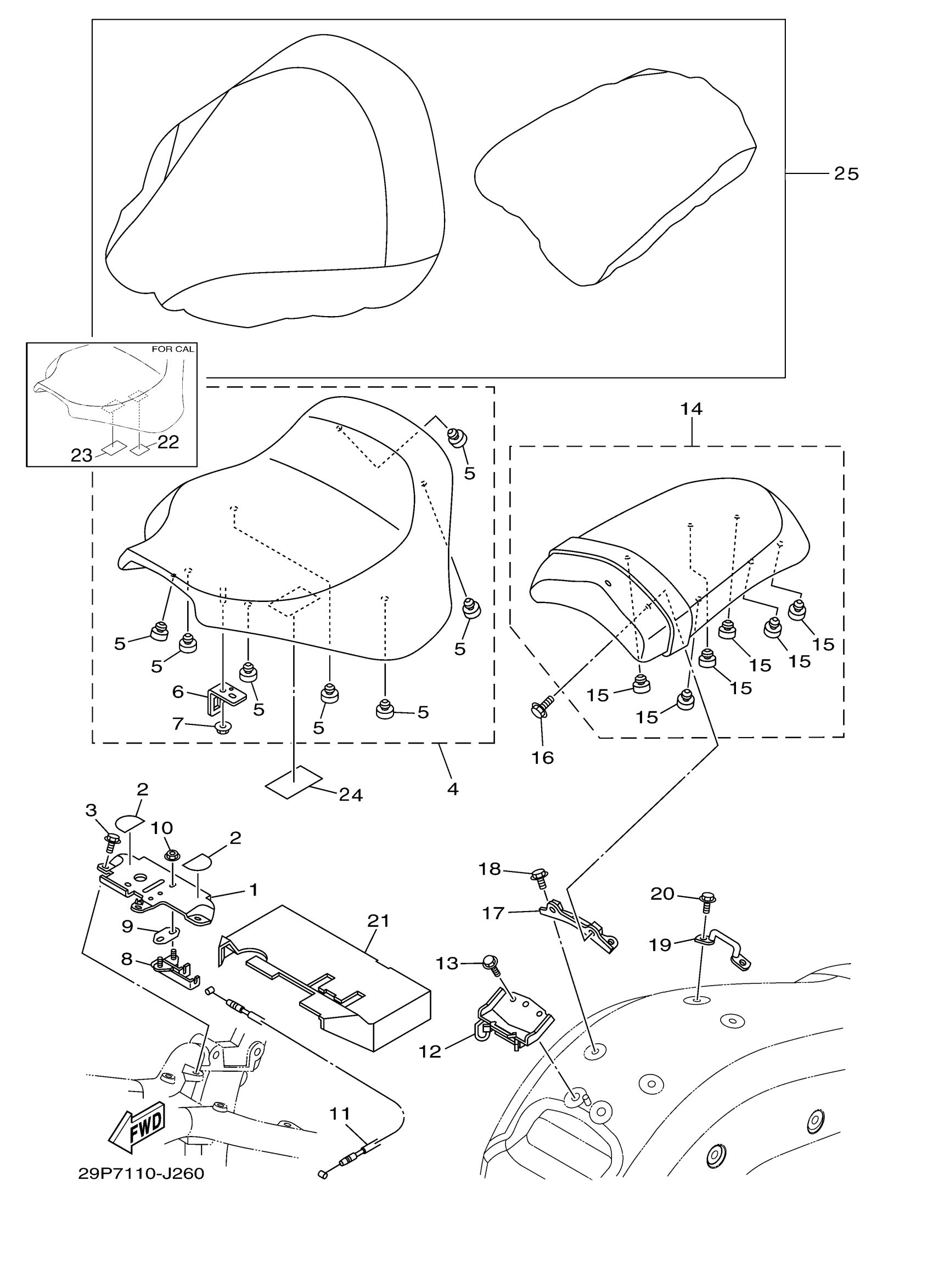

Yamaha XV19SCLDC (RAIDER SCL CA) 1US4 2013 SEAT Diagram

#

Description
Price

1

BRACKET, SEAT 1

5C7-21341-00-00

Unavailable

2

SEAL 2

5PX-21735-00-00

Unavailable

3

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

4

SINGLE SEAT ASSY

1US-F4710-T0-00

Unavailable

5

PAD, SEAT

22W-24741-00-00

$8.99

6

BRACKET, SEAT

4NK-24728-00-00

$11.99

7

NUT, FLANGE

95702-06500-00

$2.39

8

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

9

PLATE

4BP-24792-00-00

Unavailable

10

NUT, FLANGE

95702-06500-00

$2.39

11

CABLE, SEAT LOCK

5PX-2478E-00-00

$20.99

12

BRACKET

5C7-2475N-00-00

$77.99

13

BOLT, FLANGE

95022-08012-00

$12.49

14

TANDEM SEAT ASSY

1US-F4750-T0-00

Unavailable

15

PAD, SEAT

22W-24741-00-00

$8.99

16

BOLT, FLANGE

95022-08012-00

$12.49

17

BRACKET, SEAT LEVER 1

5C7-2475H-00-00

Unavailable

18

BOLT, FLANGE

95022-08012-00

$12.49

19

BRACKET 6

1D7-2475R-00-00

Unavailable

20

BOLT, FLANGE

95022-08012-00

$12.49

21

COVER

5C7-24796-00-00

Unavailable

24

LABEL, TIRE

1D7-21668-00-00

Unavailable

25

RAIN COVER KIT

1US-F47B0-V0-00

Unavailable
