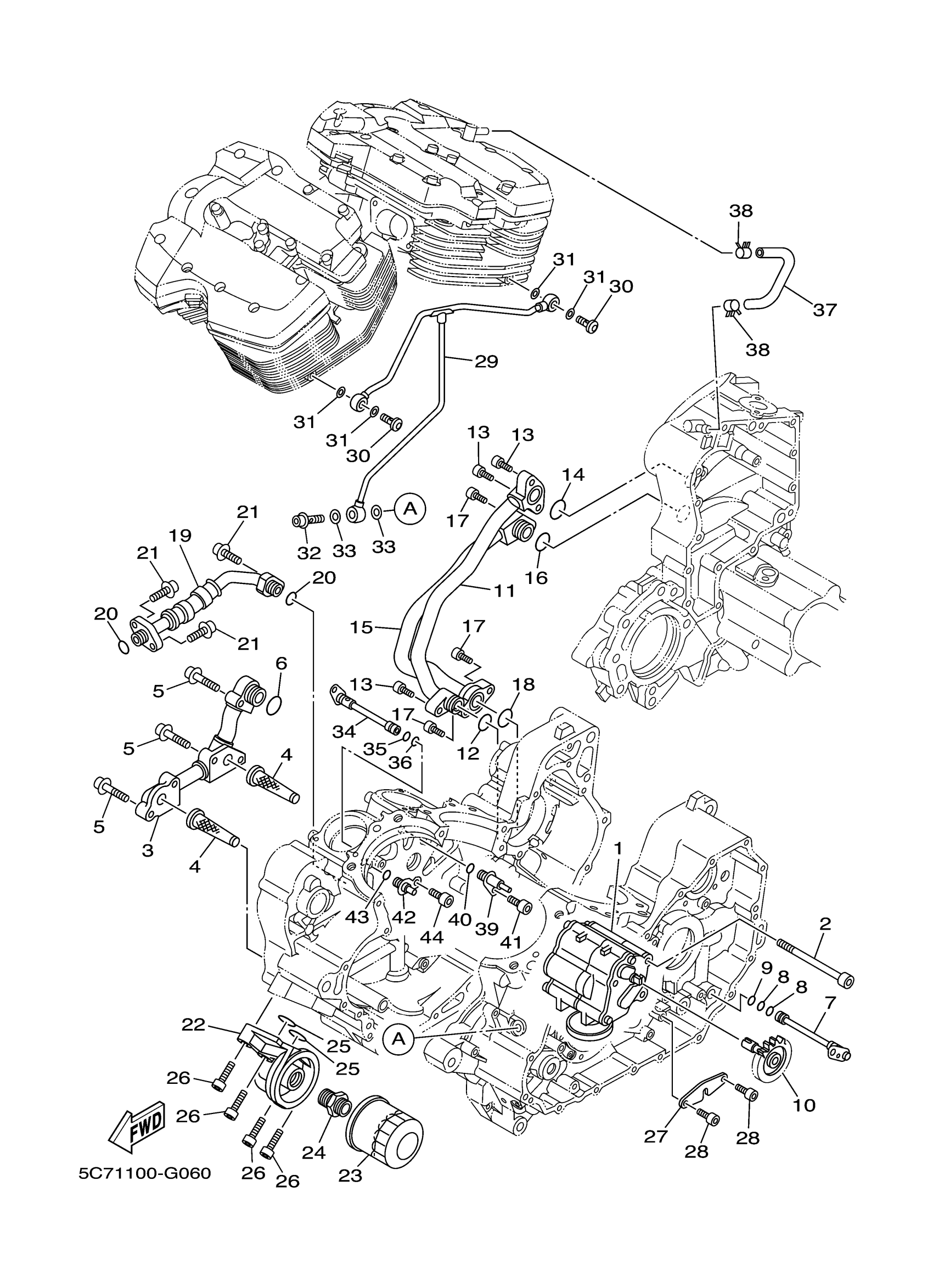

Yamaha XV19SCLDC (RAIDER SCL CA) 1US4 2013 OIL PUMP Diagram
#
1
OIL PUMP ASSY
1D7-13300-00-00
Unavailable
2
BOLT, HEXAGON SOCKET HEAD
90110-08055-00
Unavailable
10
DRIVEN GEAR ASSY
1D7-13360-00-00
Unavailable
11
PIPE, OIL 1
1D7-13416-00-00
Unavailable
15
PIPE, OIL 2
1D7-13418-00-00
Unavailable
19
PIPE, DELIVERY 1
1D7-13161-00-00
Unavailable
20
O-RING(36Y)
93210-13657-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-06195-00
Unavailable
22
PLATE, ADAPTOR
5MB-13461-10-00
Unavailable
23
ELEMENT ASSY, OIL
5GH-13440-90-00
Unavailable
24
BOLT, UNION
90401-20008-00
Unavailable
25
O-RING (4V2)
93210-23326-00
Unavailable
26
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
27
PLATE, STOPPER 1
4WM-1357N-01-00
Unavailable
28
BOLT,SOCKET
91317-06016-00
Unavailable
29
OIL PIPE COMP. 1
1D7-13405-00-00
Unavailable
30
BOLT, UNION
90401-10175-00
Unavailable
31
GASKET
90430-10188-00
Unavailable
32
BOLT, BANJO
1D7-13165-00-00
Unavailable
33
GASKET
90430-08119-00
Unavailable
34
PIPE, DELIVERY 3
1D7-13181-00-00
Unavailable
35
O-RING
93210-08003-00
Unavailable
37
HOSE, OIL 1
1D7-13464-00-00
Unavailable
38
CLIP
90467-120A0-00
Unavailable
39
NOZZLE
5C7-13352-00-00
Unavailable
41
BOLT (33M)
91312-06014-00
Unavailable
42
NOZZLE
5C7-13454-00-00
Unavailable
44
BOLT (33M)
91312-06014-00
Unavailable
