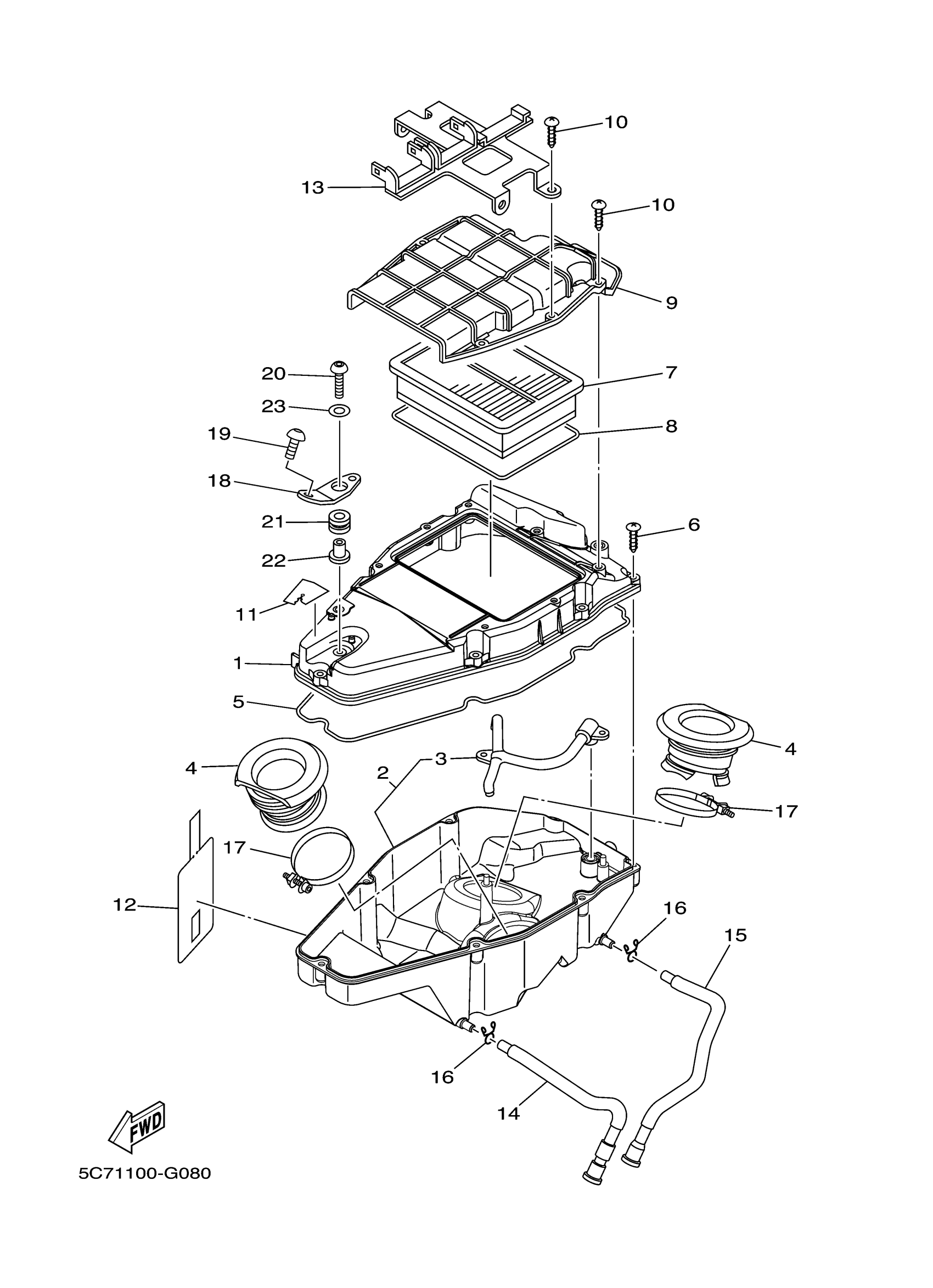

Yamaha XV19SCLDC (RAIDER SCL CA) 1US4 2013 INTAKE 2 Diagram

#

Description
Price

1

SILENCER, INTAKE 1

1D7-14431-00-00

Unavailable

2

CAP, CLEANER CASE 1

5C7-W1443-00-00

Unavailable

3

PIPE

1D7-14419-00-00

$31.99

4

JOINT, AIR CLEANER 1

1D7-14453-00-00

Unavailable

5

SEAL

51Y-14462-00-00

$18.49

6

SCREW, TAPPING

97707-50030-00

$8.49

7

ELEMENT, AIR CLEANER 2

1D7-14461-01-00

$22.99

8

SEAL

1D7-14452-00-00

Unavailable

9

CAP, CLEANER CASE 1

1D7-14412-00-00

$18.49

10

SCREW, TAPPING(4TV)

90167-05078-00

$8.49

11

DAMPER 1

1D7-14425-00-00

Unavailable

12

COVER 1

1D7-14417-00-00

$8.99

13

BRACKET 1

5C7-83955-00-00

Unavailable

14

PIPE, DRAIN

5C7-1443E-00-00

Unavailable

15

PIPE, DRAIN 2

5C7-1443G-00-00

Unavailable

16

CLIP

90467-090A2-00

Unavailable

17

HOSE CLAMP ASSY

90450-56001-00

Unavailable

18

STAY 2

5C7-14414-00-00

Unavailable

19

BOLT, BUTTON HEAD

92012-08016-00

Unavailable

20

BOLT, BUTTON HEAD

92012-06025-00

Unavailable

21

GROMMET 839774310000

90480-14023-00

Unavailable

22

COLLAR 437216330000

90387-07391-00

Unavailable

23

WASHER, PLATE 1012832300

90201-06066-00

Unavailable
